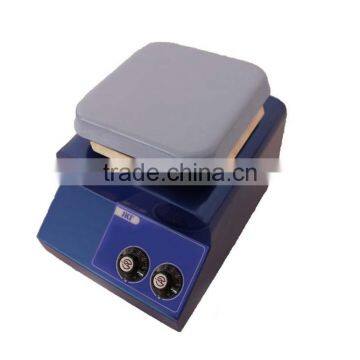

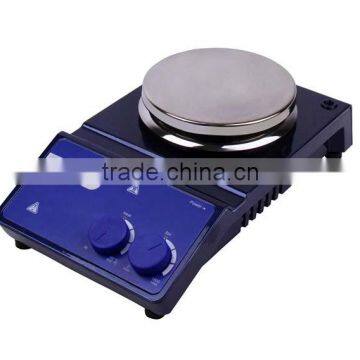

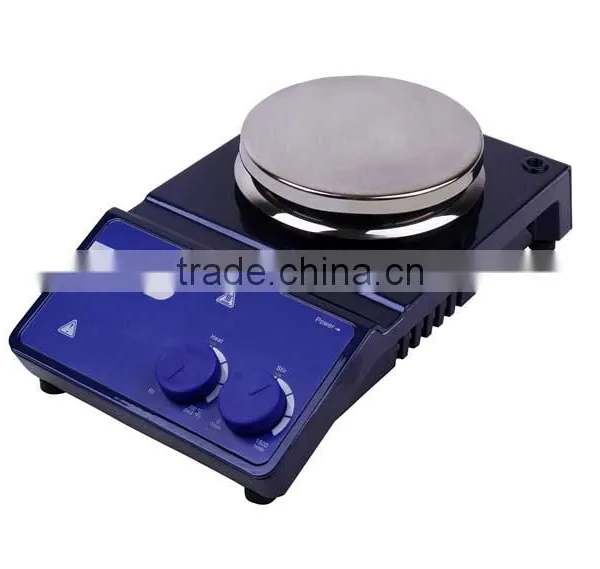

Standard Magnetic Stirrer
Analog Magnetic Stirrer with compact design:
A traditional magnetic stirrer with modern design
Stainless steel plates and with/without hotplate porcelain enamel surface
Safe separate circuit, automatically stop to heat when the temperature over 350℃(SMS-HS)
Variable speed of motor
Motor with electronic speed control, constant speed even during changes in load
High magnetic adhesion, prevent the stirrer bar escape
Enclosed assembly(IP42) guarantees long service time
Main Data Description:
Model |
JK-SMS-S |
JK-SMS-HS |
Voltage [VAC] |
110/220 |
110/220 |
Frequency [Hz] |
50/60 |
50/60 |
Power [W] |
30 |
530 |
Stirring point position quantity |
1 |
1 |
Max. stirring quantity (H2O) [l] |
20 |
20 |
Max. magnetic bar [mm] |
80 |
80 |
Motor type |
Exterior rotor brushless motor |
Exterior rotor brushless motor |
Motor rating input [W] |
18 |
18 |
Motor rating output [W] |
10 |
10 |
Speed range [rpm] |
0-1500 |
0-1500 |
Speed display |
--- |
Scale |
Material |
Stainless steel(Ceramic surface) |
Stainless steel(Ceramic surface) |
Dimension of Plate [mm] |
φ135 |
φ135 |
Dimension (W×D×H) [mm] |
300×170×100 |
300×170×100 |
Weight [kg] |
2.4 |
2.4 |
Permissible ambient temperature [℃] |
5-40 |
5-40 |
Permissible relative humidity |
80% |
80% |
Protection class acc. to DIN EN60529 |
IP42 |
IP42 |
Heating power[W] |
- |
500 |
Heat rate(1Lwater)[K/min] |
- |
6 |
Heating Temperature Range [℃] |
- |
RT-350 |
Temperature display accuracy [℃] |
- |
350 |
