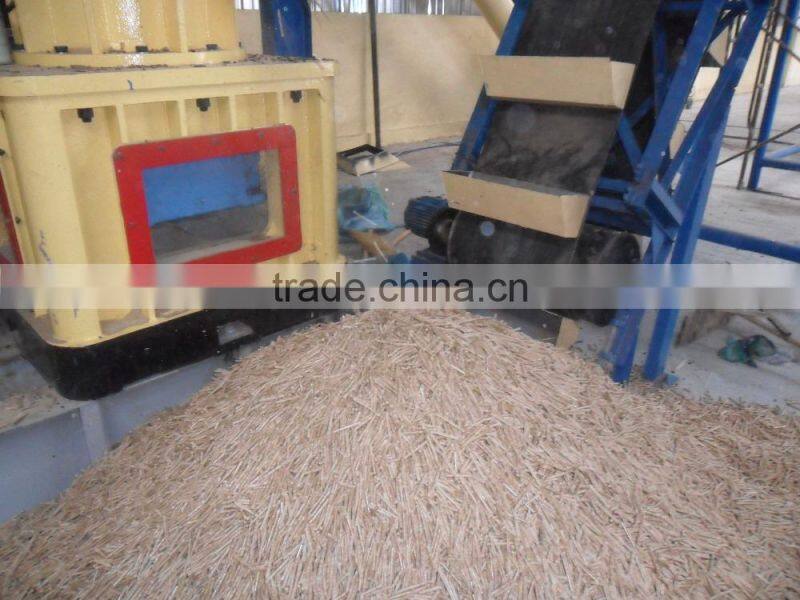

Help Center2 Jinan Supply Wood Pellet Mill With Diesel Engine and Electric Motor
Related Products
-
227 Roller Move Die Stable Biomass Sawdust Pellet Machine With High CapacityUS$ 20,000 - 33,000MOQ: 1 Set -
229 New Design Wood Pellet Machine / Wood Pellet Mill for Efb, Alfalfa, Coconut PineUS$ 160 - 8,020MOQ: 1 Set
-
229M CE Mushroom Compost Biomass Pellet Machine/ Pellet Mill With High QualityUS$ 20,000 - 33,000MOQ: 1 Set
-
2 Vertical Ring Die Wood Pellet Machine PriceUS$ 160 - 8,020MOQ: 1 Set
-
229 Machine Recycline Wood Waste Wood Pellet MachineUS$ 20,000 - 33,000MOQ: 1 Set
Wood pellet mill
Process for making pellets from wood pellet mill
1 Crushing process of raw material: crushing machine is used for crushing the larger materials into smaller powder for supporting produce wood pellets. there are two major type machines, wood crusher and wood hammer mill. wood crusher is good for crushing logs with diameter less then 200mm, and the wood hammer mill is better frot eh materials has a diamete less then 50mm.
2 Drying biomass materials: the best moisture content to pelletizing is about 11-15%. so before peletizing, drying the material is necessayre, a dryer is need to drye the mateiral to the required standards,. rotary dryer or pie dryer can be chosedn.

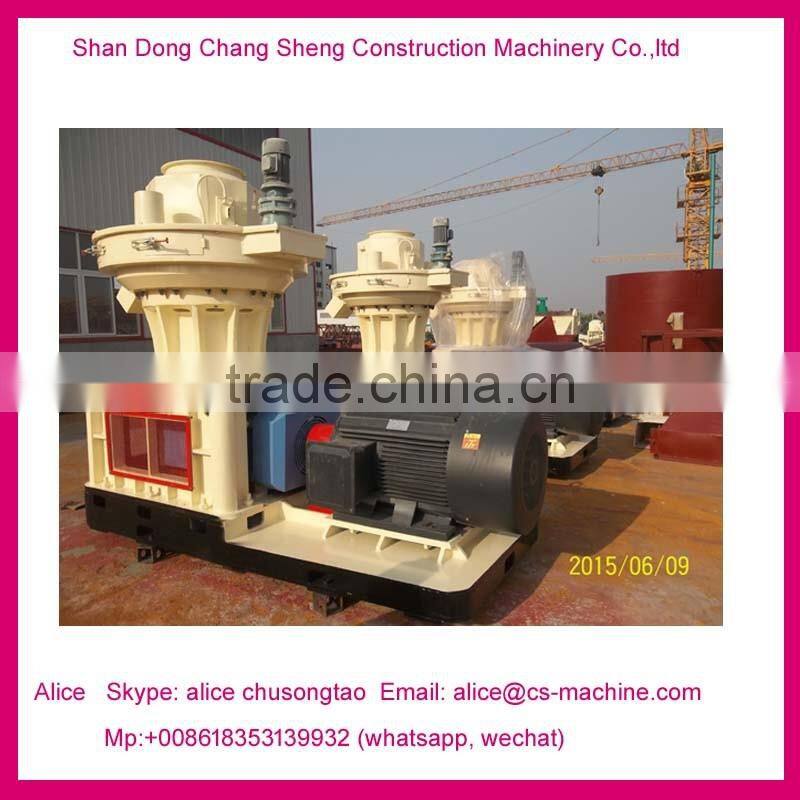

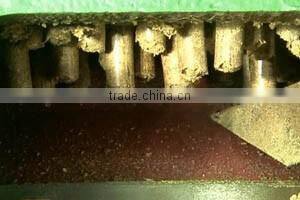

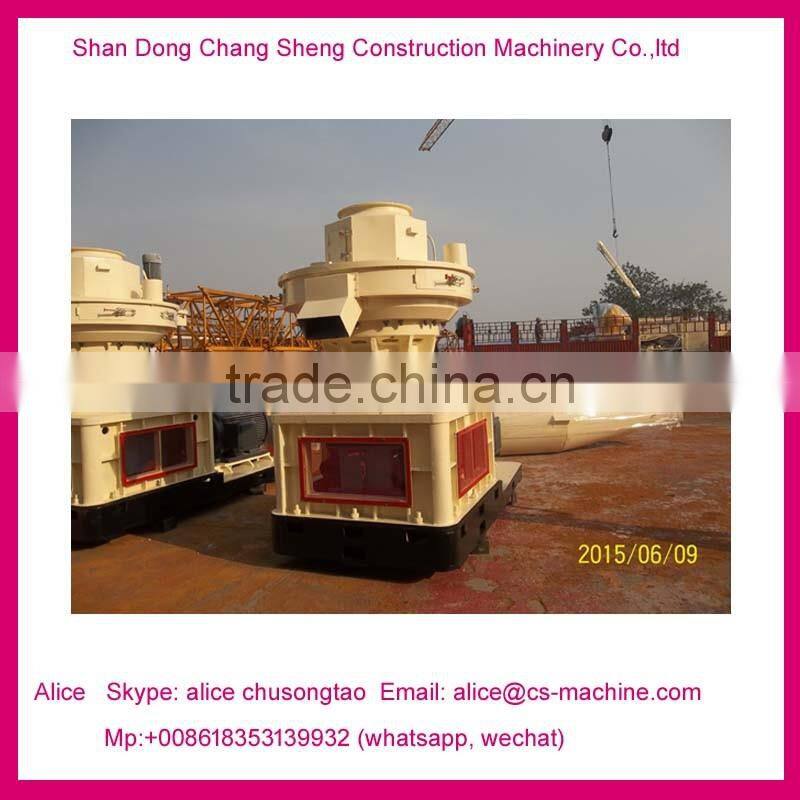

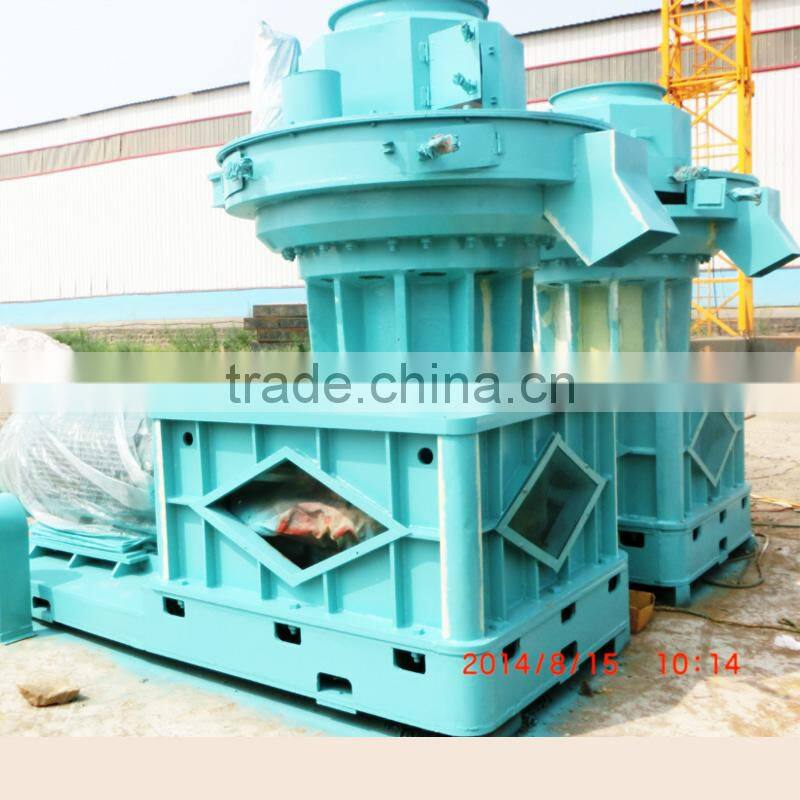

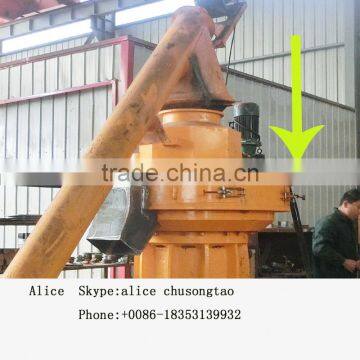

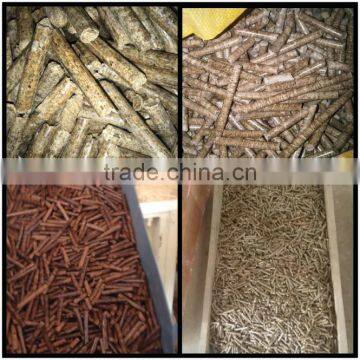

3 Wood pelletizing process: pellet mill is the key part of wood pellet production line, and has reliavble and stable performacne., you can choose ring die pellet mill or flat die pellet mill according to your capacity requirements. our gzlh serious ring die pellet millis best choice for larfe scale produciton, while our small flat die pellet mill is suitga ble for small wood pellet produciton. the pellets wil have charcaters of high density, hight heating value. if you are intersetd in please contact with me .
4 Cooling the pellet: biomass pellets or briquettes from pellet machine or wood pellet mill are with high moisture conetc tabvove 16%, and high temperature degree about 70-85, there for cooler is necessary to low doen materials tempreature to 3-5 higher than room temreature and for safly stored or tranposreted in case the mildew.
5 Packing wood pellets: after cooling process, packing process is necsaarey to prtect the wood pelletgs from the am. our automatic wood pellet weirghing, bagging system aoopdts plc control with high weighing accuracey and easy operation which isyoru best chosei
Model |
Capacity (T.h) |
Power (kw) |
Diameter of Pellet(mm) |
Weight (T) |
Dimension (mm) |
GZLH508 |
0.5-0.7 |
75 |
4-12 |
5.6 |
2600*1200*2300 |
GZLH560 |
1-1.5 |
90 |
4-12
|
6.1 |
2600*1300*2310 |
GZLH610 |
1.5-2.0 |
132 |
4-12
|
7.3 |
2910*1300*2410 |
GZLH850 |
2-3 |
220 |
4-12
|
15 |
3380*1480*3180 |
GZLH880 |
3-4 |
315 |
4-12
|
18.5 |
3900*1780*3500 |
GZLH1050 |
5-6 |
355 |
4-30 |
22 |
4200*1850*3680 |
1 )Wood sawdust rotary drum dryer
http://preview.china.cn/product/218334863/10000/6108_CE_high_quality_rotating_dryer_wood_chips_rotary_drum_dryer_for_sale.html

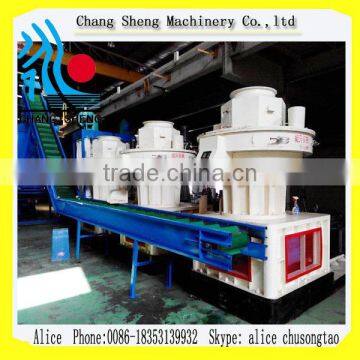

2)Complete wood pellet line:
http://hz.productposting.china.cn/product/editing.htm?id=60407032452
3) Wood hammer mill:
http://preview.china.cn/product/60401375487-218335881/201611_Big_dual_shaft_wood_chips_hammer_mill_with_5_6t_h.html
4)Vertical ring die wood pellet machine;
http://preview.china.cn/product/60425621609-218330879/1226_Equipments_producing_pellets_CE_ISO_SGS_certificate_380v_wood_pellet_mill.html

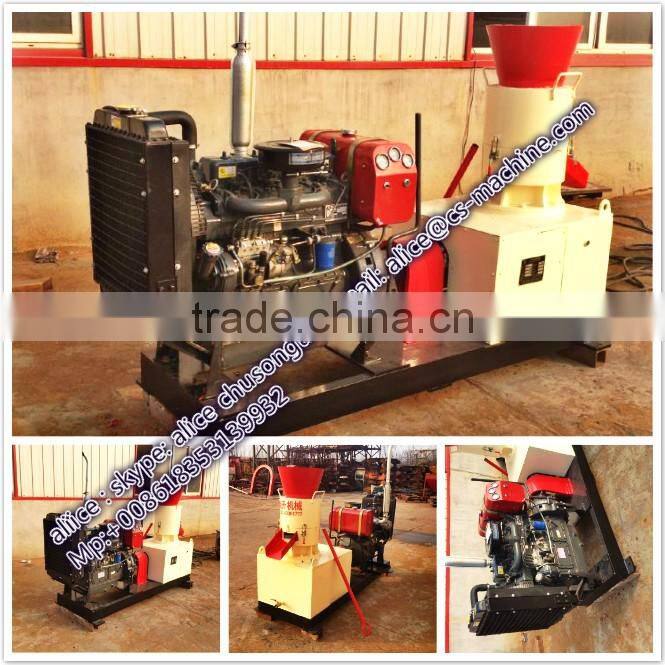

5)Diesel wood pellet machine:
http://preview.china.cn/product/60406917861-218330879/16106_flat_die_CE_affordable_diesel_biomass_wood_pellet_machine_for_sale.html
