Specifications

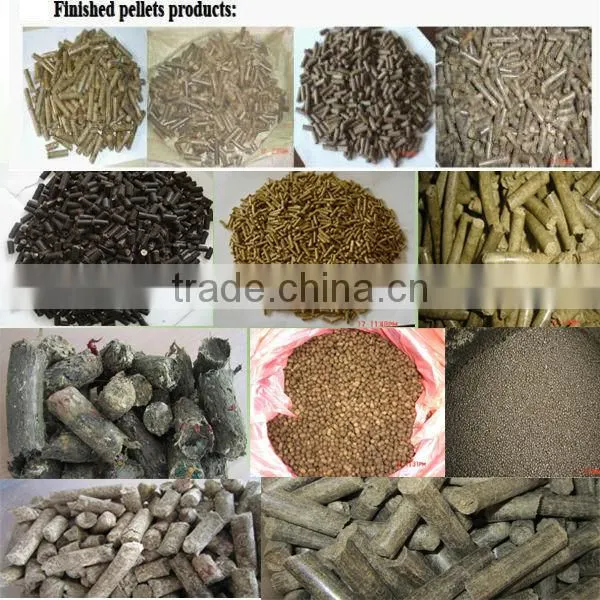

good quality organic fertilizer production line/organic fertilizer plantHigh hardness pellets
for biomass fuel, feed

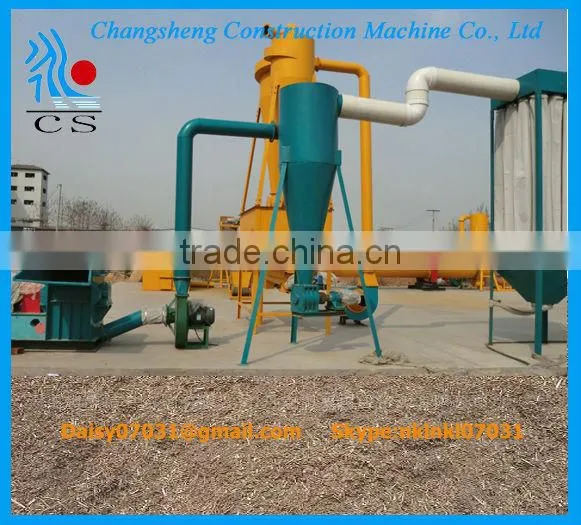

good quality organic fertilizer production line/organic fertilizer plant
Description of good quality organic fertilizer production line:
The organic fertilizer production line can press biomass waste into good pellets. It is fit for biomass waste from corn stalks, horse manure,cattle manure ,wheat straw, cotton stalks, rice straw, rice husk, peanut shell,palm fiber and palm leaves, corn cob, Tree branches, leaves, sawdust and other crops in rural areas , biomass solid waste, furfural-residue, edible fungus dregs, and Chinese herbal medicine residue etc.

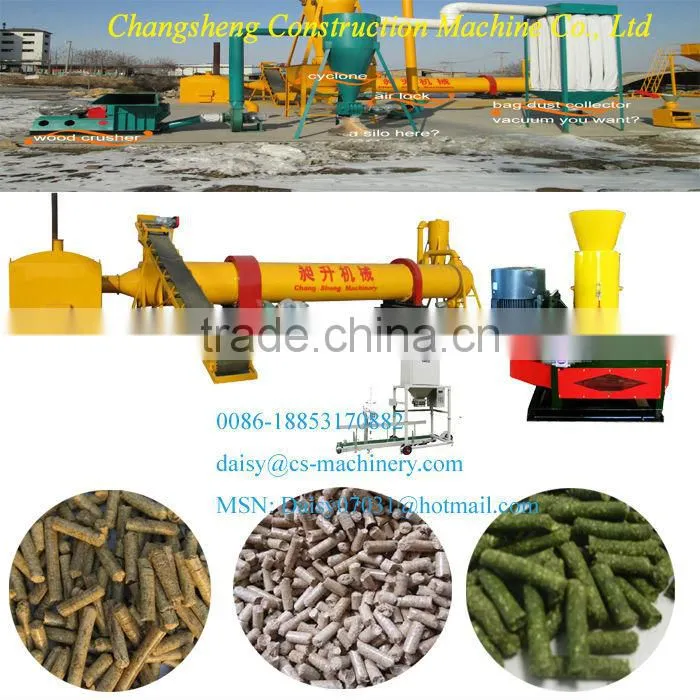

Process of good quality organic fertilizer production line:
Our complete organic fertilizer plant has a compact structure, low energy consumption and is highly efficient. Every machine in the organic fertilizer production line can be designed and manufactured according to customers’ requirements. Professional technical guidance of installing the machinery is also available.The whole process of wood pellet line can be highly automatically controlled. It includes the below processes.
Crushing process – Hammer mill
It mills raw material like tree branch, wood shavings, wood chips, wood logs, cotton stalk, corn stalk, wheat straw etc, with size less than 50mm (diameter). After milled, the output size can reach diameter 3-5 mm, then it is pushed to next process to get dried and pelletized.
Drying process – Rotary Dryer
The best moisture content to pelletizing is about 15-20%. The rotary dryer uses steam to heat air and contact material to remove certain degree of moisture. It is very important for wood pellets machinery line to use moisture detector which will determine the most suitable moisture before pelletizing.
Pelletizing pocess - Wood pellet mill
Pellet mill is the heart of the wood pellet production line, and has reliable running performance. It is special designed for compacting of wood, straw, and other biomass sources into pellets. Capacity ranges from 1T to 5T per hour per set.
Cooling process - Pellet cooling machine
Usually after pelletizing, the temperature of wood pellets is between 60-80 degrees and the moisture cont ent is close to 15%. For storage purposes, a cooler must be used to reduce their surface temperature and the moisture content, also help screen good and pure pellets.
Packing process - Pellet packing machine
After cooling process, the wood pellets will not directly enter into the fuel process, avoiding the wood pellet a ffected with damp, the packing process is very necessary. The packing process is effectively handled by our Semi-Auto Packing Machine.
Technical parameter of good quality organic fertilizer production line:
| Model | Wood Capacity (kg/h) | Power (kW) | Diameter specification (mm) | Net Weight (kg) | Dimension(mm) | Moisture(%) |
| DZLP360 | 400 | 30 | Φ3-12 | 1000 | 1680*680*1380 | 13-18 |
| DZLP460 | 500-600 | 45 | Φ3-12 | 1550 | 1685*750*1380 | 13-18 |
| DZLP560 | 700-800 | 55 | Φ3-12 | 2000 | 1688*780*1380 | 13-18 |
| DZLP800 | 1000-1200 | 90 | Φ3-20 | 3980 | 1980*1100*2100 | 13-18 |
| Model | Die Diameter (mm) | Capacity crude fiber (t/h) | Power (kW) | Diameter specification (mm) | Weight (t) | Dimension (m) |
| GZLH508 | 508 | 0.5-0.7 | 75 | Φ4-12 | 5.6 | 2.6*1.2*2.3 |
| GZLH560 | 560 | 1-1.5 | 90 | Φ4-12 | 6.1 | 2.6*1.3*2.3 |
| GZLH580 | 580 | 1.5-2.5 | 160 | Φ4-12 | 7.3 | 2.9*1.3*2.4 |
| GZLH850 | 850 | 2.5-3.5 | 220 | Φ4-12 | 15.1 | 3.3*1.4*3.1 |
| GZLH880 | 880 | 3.0-4.0 | 315 | Φ4-12 | 18.5 | 3.9*1.78*3.5 |
Pictures of good quality organic fertilizer production line:

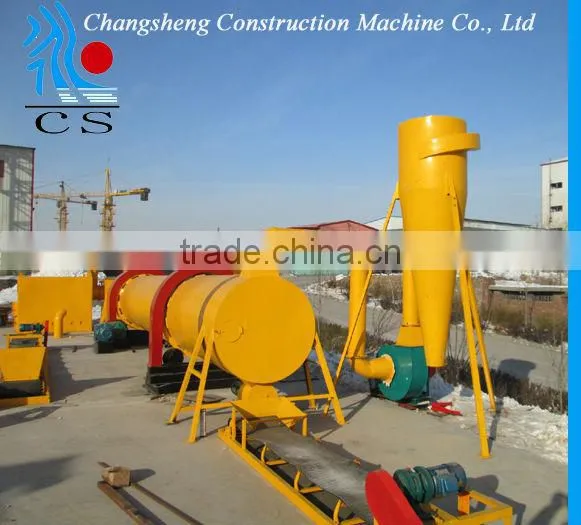

Rotary dryer
wood pellet mill

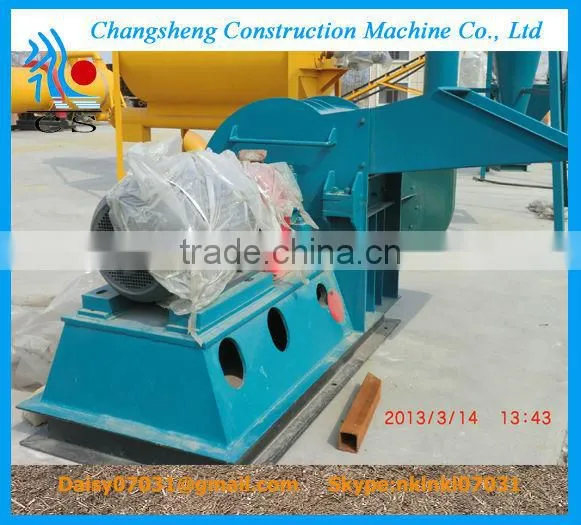

wood hammer mill

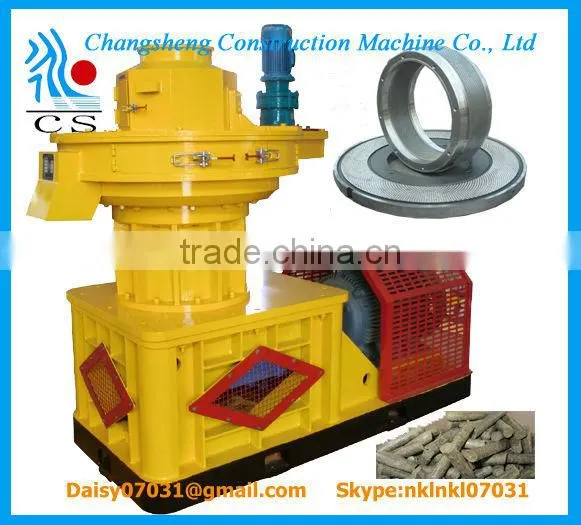

vertical ring die wood pellet mill

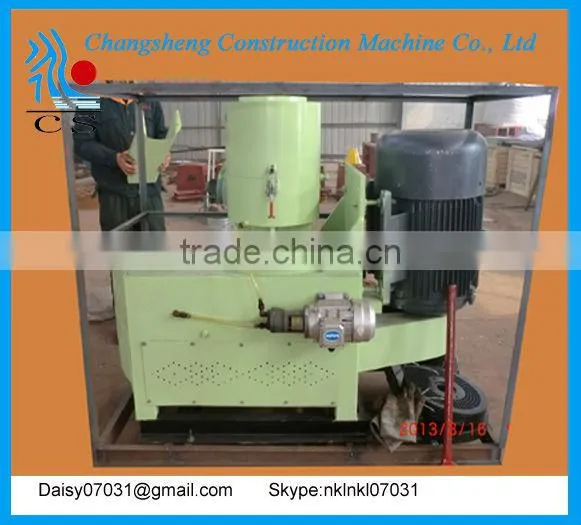

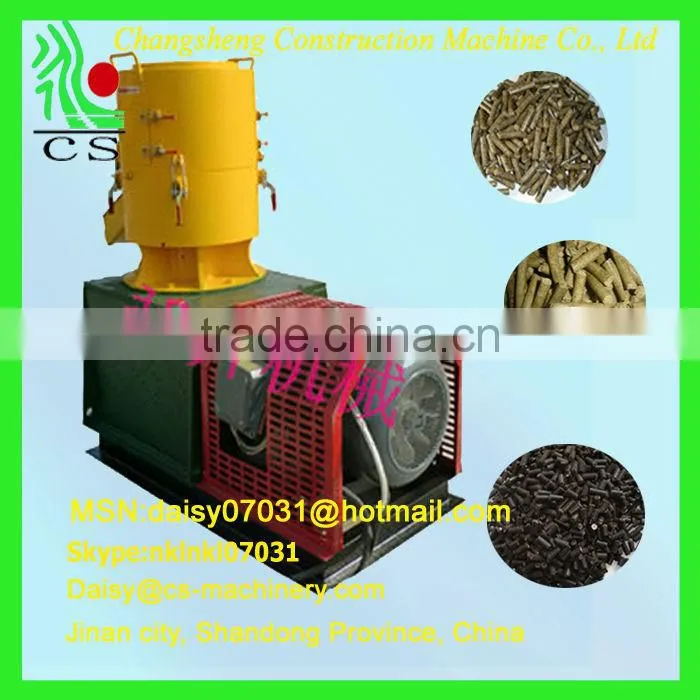

flat die wood pellet mill
Hammer mill

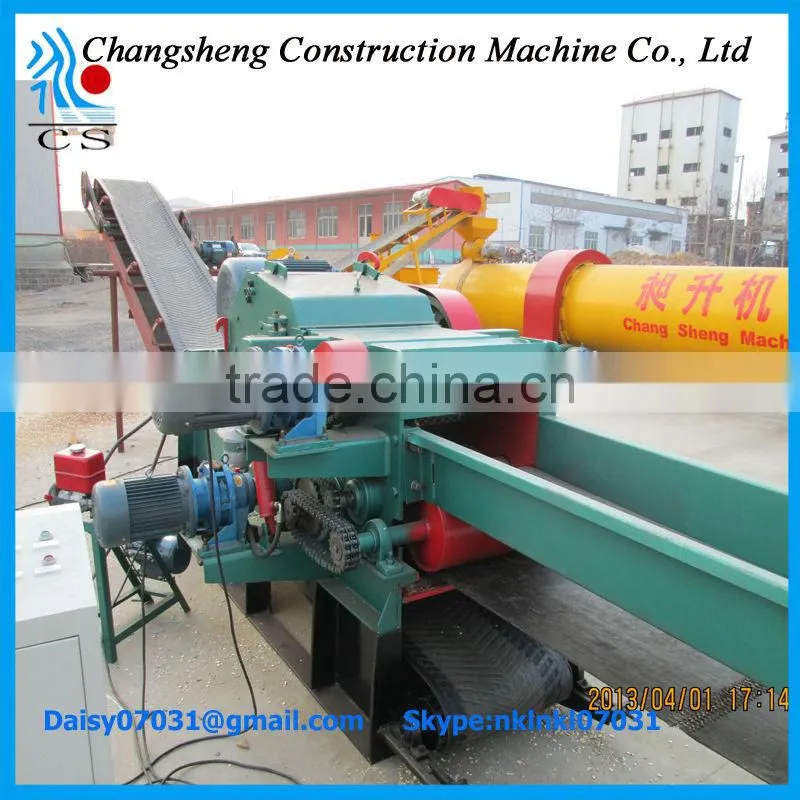

wood chipper for logs
