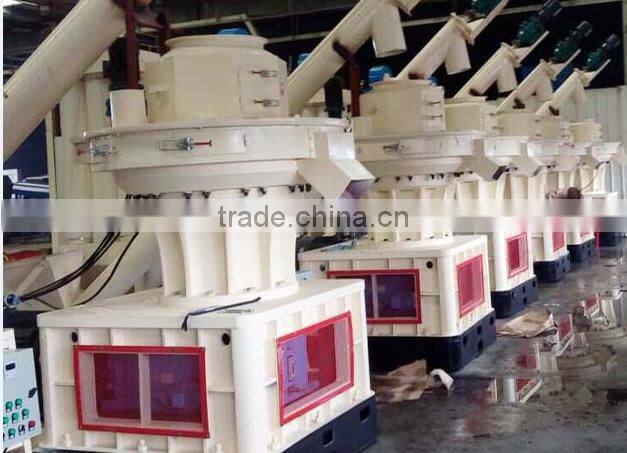

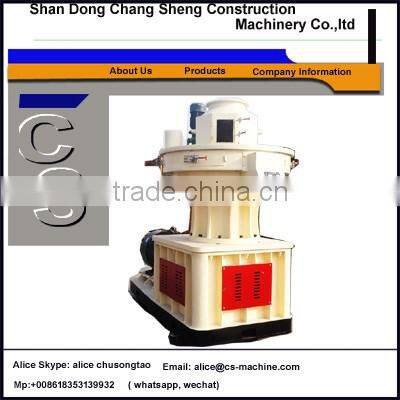

3 ton per hour sawdust pellet making machine
Process for 3 ton per hour sawdust pellet making machine
1) 3 ton per hour sawdust pellet making machine can work continuosly for 24 hours, no need to stop.

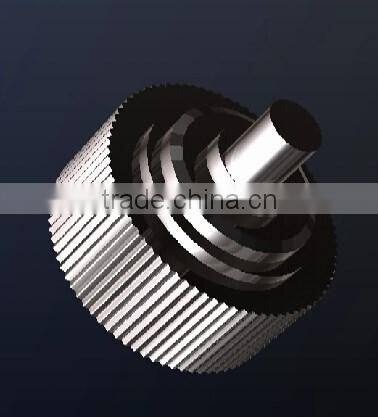

2) 3 ton per hour sawdust pellet making machine with one set of roller assembly- two roller system.
3) 3 ton per hour sawdust pellet making machine vertical feeding directly in place.

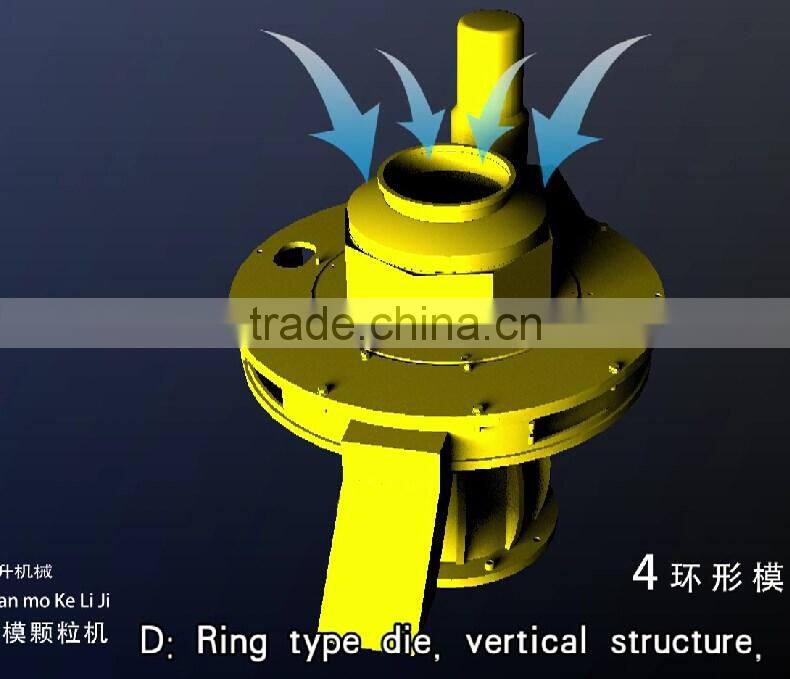

4) 3 ton per hour sawdust pellet making machine die static, roller rotating,material centrifugal, evenly distributed around.
5)3 ton per hour sawdust pellet making machine double layer dies, up and down dual sue, reduce the cost, enhence the efficiency.
6)One die, different hold diameters, with different specification to pelletize.

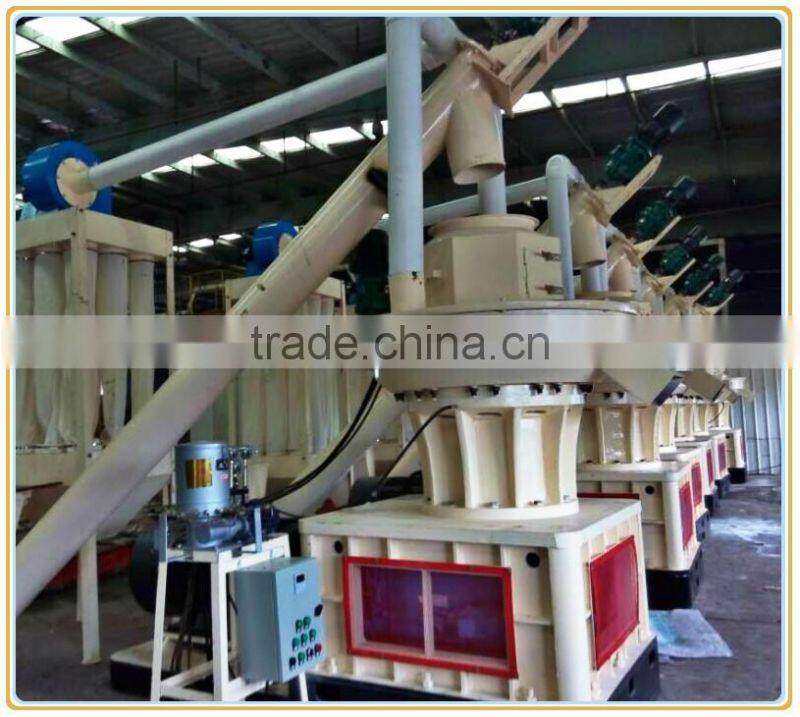

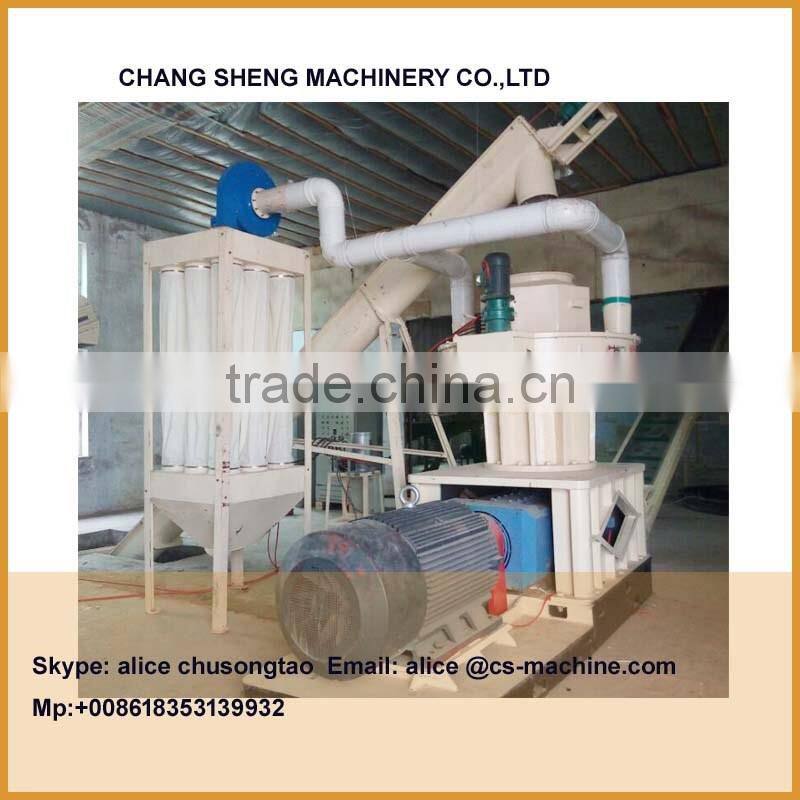

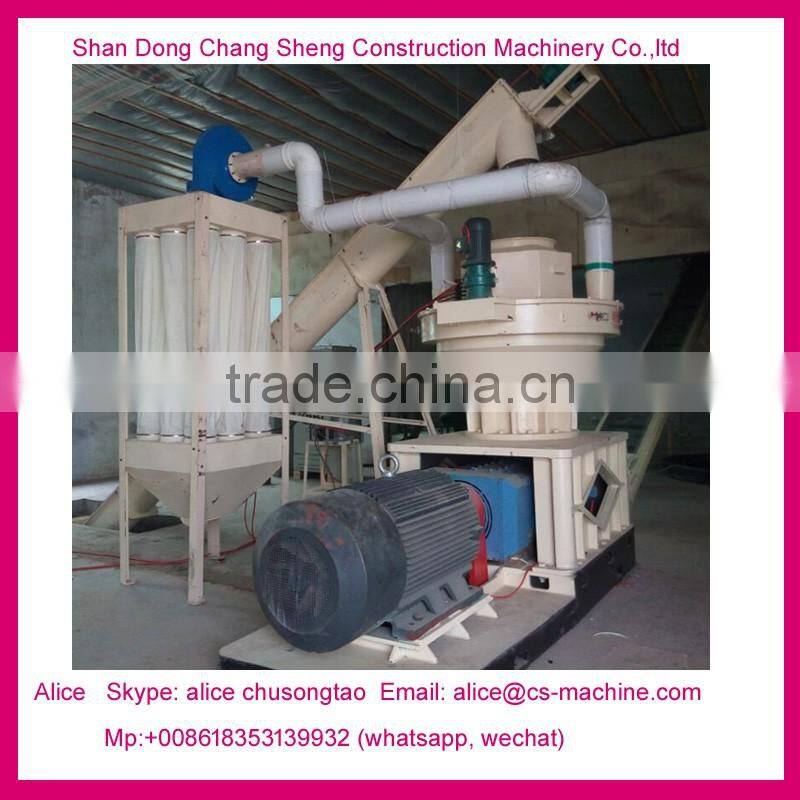

7)pellet machine always work with automatic lubricate system, fan blower, bag dust collector. Firstly, clean dust, very enviromental proteciton. Secondly , it can cool pellet machine inner spare prts heat treatment, making sure long continuous working time.
8) pellet machine had two layer dies. Both upside and down side can be used. So life span is two times higher than the normal ones.......
9) 3 ton per hour sawdust pellet making machine spare parts are made by cnc systems, through high technical heat treatment, HRC larger than 50 degree. Greatly welcome to ask me for more details.

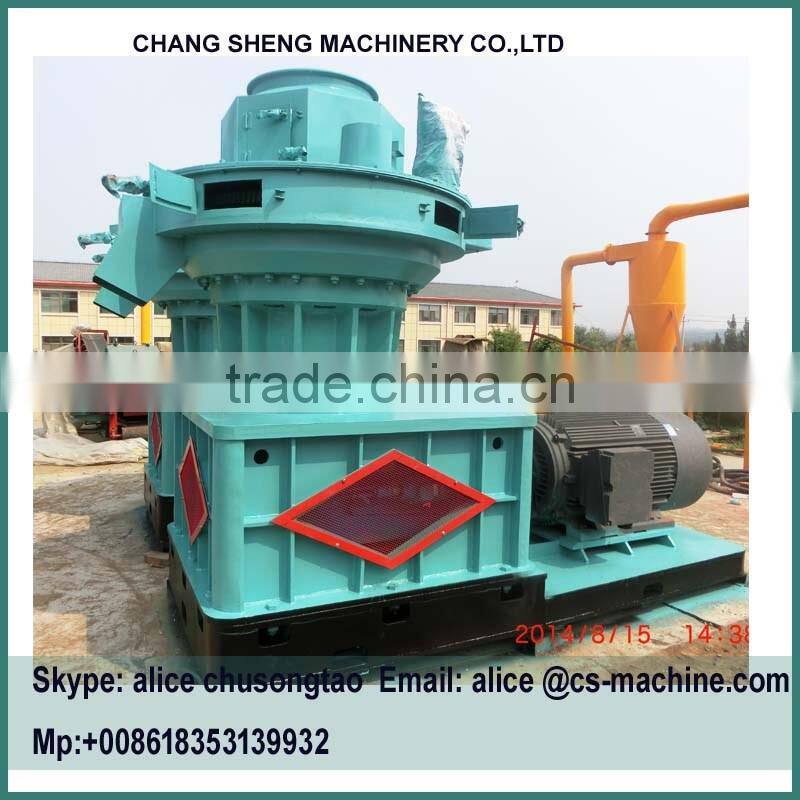

10) 3 ton per hour sawdust pellet making machine middle part are casted-steel, which can give the machine body a strong support. So machine are very stable when it works.....
Model |
Capacity (kg.h) |
Power (kw) |
Diameter of Pellet(mm) |
Weight (T) |
Dimension (mm) |
GZLH480 |
800-1000 |
45 |
4-12 |
2.3 |
2600*1200*2300 |
GZLH560 |
1000-1500 |
90 |
4-12
|
6.1 |
2600*1300*2310 |
GZLH610 |
1500-2000 |
132 |
4-12
|
7.3 |
2910*1300*2410 |
GZLH860 |
2000-3000 |
220 |
4-12
|
15 |
3380*1480*3180 |
GZLH880 |
3000-4000 |
315 |
4-12
|
18.5 |
3900*1780*3500 |
GZLH1050 |
5000-6000 |
355 |
4-30 |
22 |
4200*1850*3680 |
-Shan Dong Chang Sheng Construciton machinery co.,ltd based in zhang qiu jinan city,is the biggest manufacture of pellet making machinery.
-After years developmentm now our company becomes a most famous factory in china. With intergarion of sciecen, engineering , production, sales department. Our products are widely accepted in both domestic and work markket, and also exposed to more than 30 coutnries such as england, russia, sweden, poland, iran, suadn, south malaysia, indonesi, vietnam , thailand etc.
-We have test center of machines, and we will build one related company making pellets with our machines. -Every machine will test before delivery and we will send the test video and other related video to our client -All the motor of machine with ce certificate. -Products quality get the locak goverment guarantee -Recommend clients for free, offer the layout draing and the profit table. -Change electrical power for free during warranty time. -Offer the install video adn free stuff training We hope sincerely to become your chinese supplier and partner in the mechanical field.
1 )Wood sawdust rotary drum dryer
http://preview.china.cn/product/218334863/10000/6108_CE_high_quality_rotating_dryer_wood_chips_rotary_drum_dryer_for_sale.html

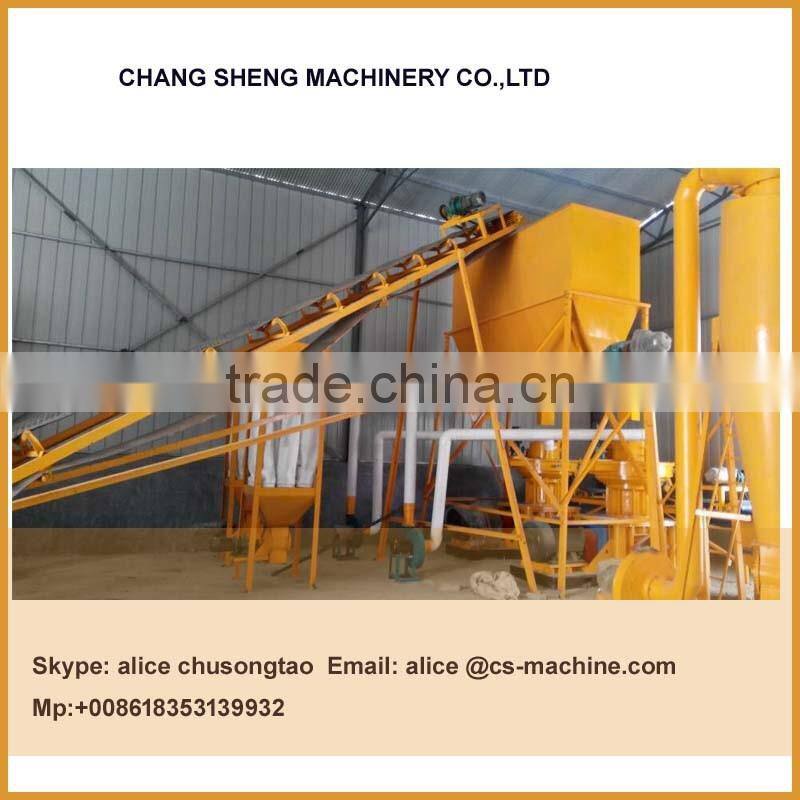

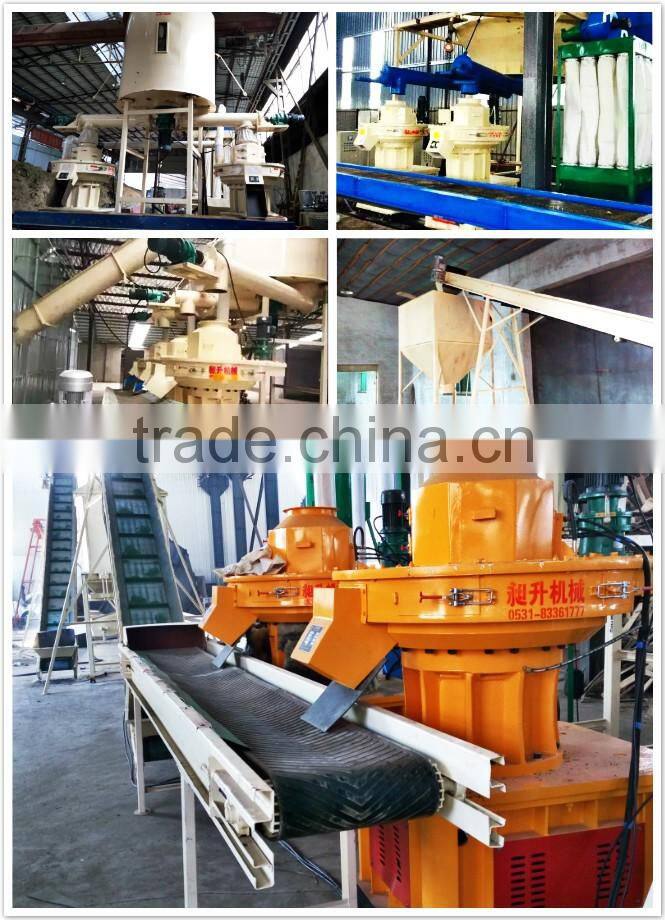

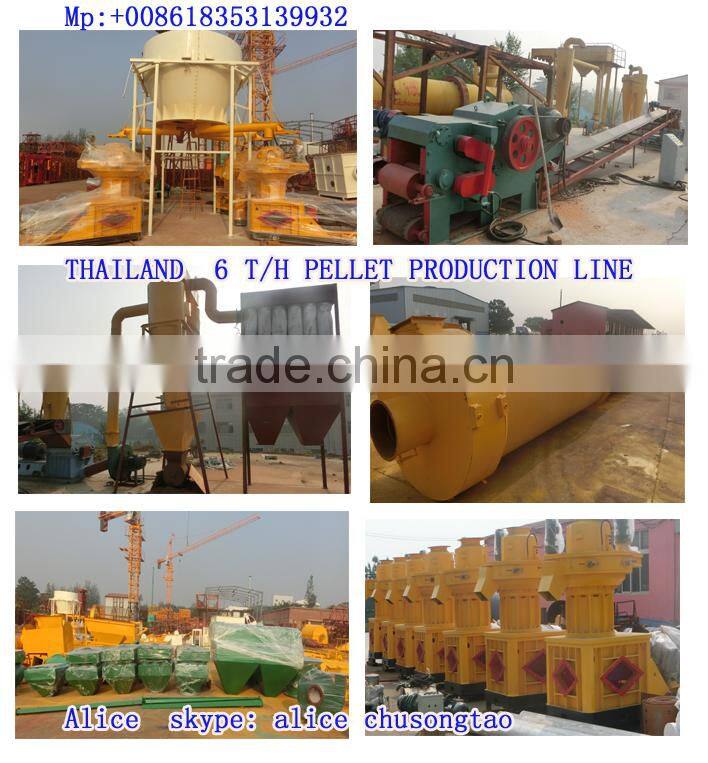

2)Complete wood pellet line:
http://hz.productposting.china.cn/product/editing.htm?id=60407032452
3) Wood hammer mill:
http://preview.china.cn/product/60401375487-218335881/201611_Big_dual_shaft_wood_chips_hammer_mill_with_5_6t_h.html
4)Vertical ring die wood pellet machine;
http://preview.china.cn/product/60425621609-218330879/1226_Equipments_producing_pellets_CE_ISO_SGS_certificate_380v_wood_pellet_mill.html
5)Diesel wood pellet machine:
http://preview.china.cn/product/60406917861-218330879/16106_flat_die_CE_affordable_diesel_biomass_wood_pellet_machine_for_sale.html
Pellet conforming to the norms commonly used in europe( din 51731 or norm m-7135) have less than 10% water content, are uniform in density higher than 1 ton perhou cubic meter, thus it sinks in water( bulk density about 0.6-0.7 ton per cubic mater), have good structural stength, and low dust and ash content, Because thw ood fibres are broken down by the hammer mill,, there is virtually no difference in the finished pelles between different wood types. Pellets can be made from nearlly any wood variety. In europe the main production aresa are located in south scandinavia, central europe, austria and the baltic countries.
Pelles confirming to the european standards norms which contain recycled wood or outside contaminants are considerd class b pellets. Recycled materials such as particles board, treated or painted wood, melaming resin coated panels and the like are particulary unsuitable for use in pellets, since they may produce noxious are uncontrolled variations in the burning characteristic of the pellets.
Standrs used in the united states are different, developed by the pellet fuels institue and as in europe, are n ot mandatory, still, many manufactures comply, as warrantis of us manufactured or imprted combustion euipment may not cover damage by pellets non conformant with regulations. Prices for us pellets surged drng the fossil may not cover fuel price inflation of 2007-2008, but later dropped arkedly and are generally lower on a per btu basia than most fossial fuels, excluding coal.
Regulatory agencies in europe and north ameica are in the process of tightening the smissions standards for all forms of wood heat, including wood pellets and pellet stove These standard will become mandatory, with independently certified testing to ensure complice. in the united states, the new rules initaled in 2009 have completed the EPA regulatory review process, with final new standards of performance for new residential wood heaters rules issued for comment on june 24.
Regulatory agencies in europe and north america are in the process of tightening the emissions standards for all forms of wood heat, including wood pellets and pelle stove, these standards will become mandatory, with independently certified testing ensure complice.
