widely used portable water well drilling rigs for sale
Applications:
Geological general investigation and exploration, road and tall building groundsill exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil water wells and geothermal air conditioner, etc.
Parameters:
Unity machine parameter | |
Drilling depth |
200m |
Max. open hole caliber |
220mm |
End hole caliber |
75mm |
Drill pipe caliber |
50mm |
Drilling angle |
90°~75° |
Drill weight |
560Kgs |
Spindle | |
Spindle speed: |
142,285,570r/min |
Spindle stroke: |
450mm |
Hoist | |
Max. lifting capacity: |
1600Kgs |
Single line lifting speed: |
0.41,0.82,1.64m/s |
Reel caliber: |
140mm |
Tightrope caliber: |
13mm |
Tightrope size: |
27mm |
Mud pump | |
Type: |
Horizontal single-urn double action |
Flow Diesel engine/Electric motor: |
95/97L/min |
Max. pressure: |
1.2Mpa |
Work pressure: |
0.7Mpa |
Water inlet diameter: |
30mm |
Water outlet diameter: |
20mm |
Triangle conveyer belt: |
B1575mm |

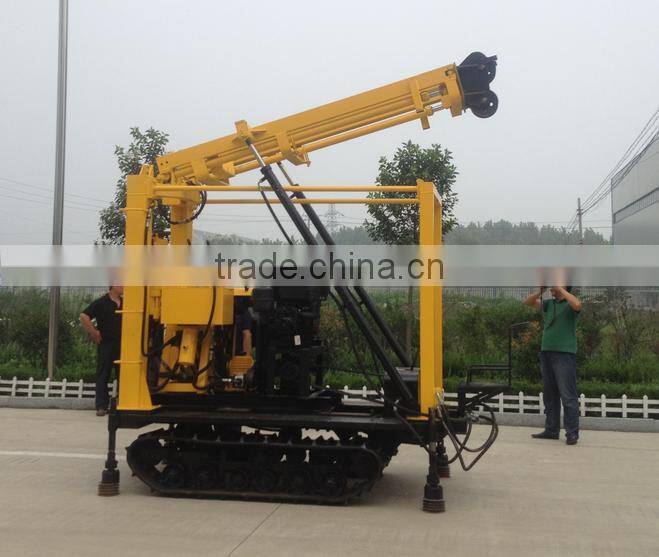

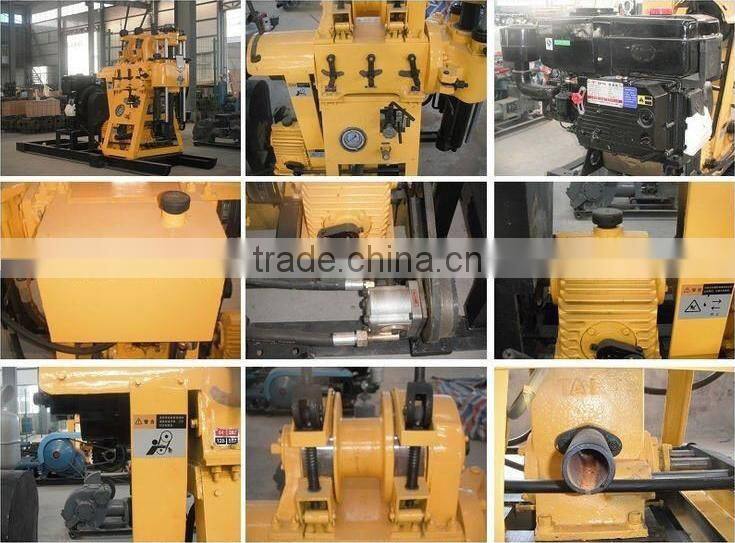

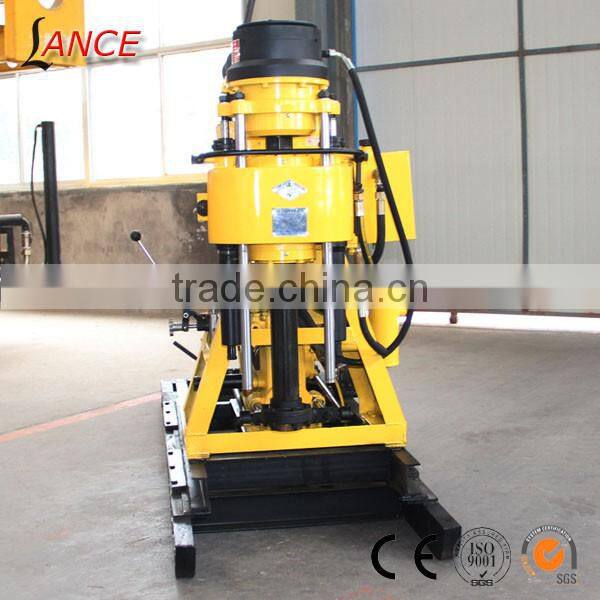

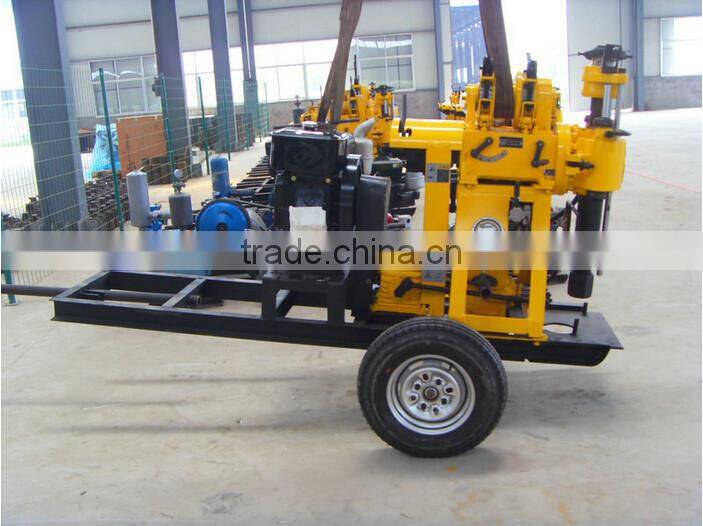

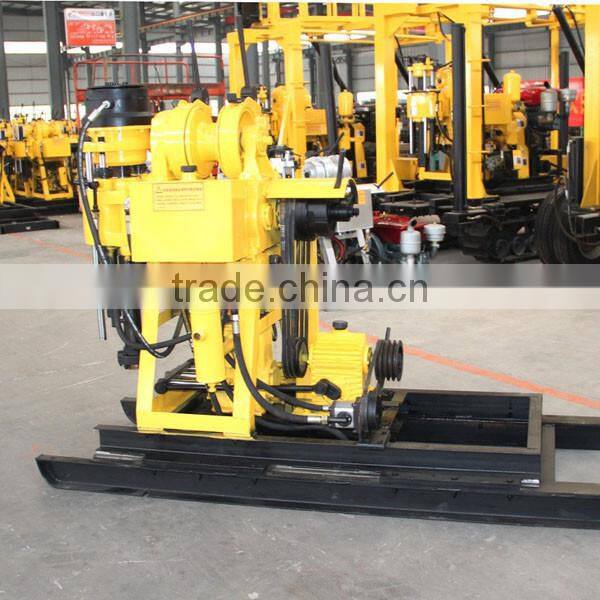

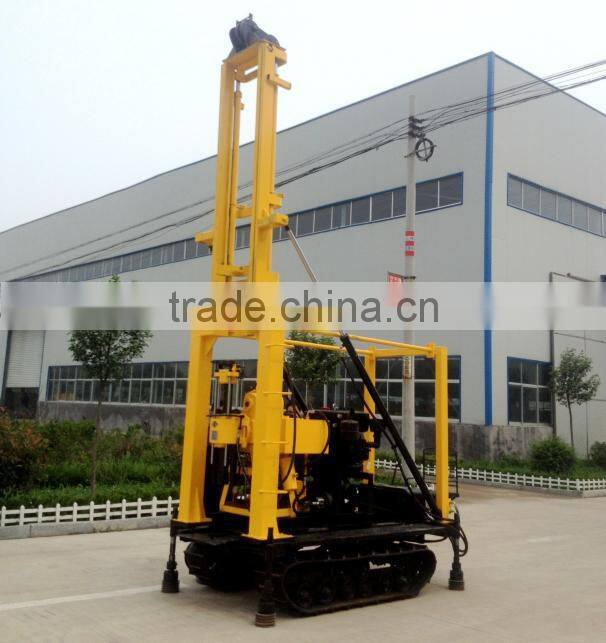

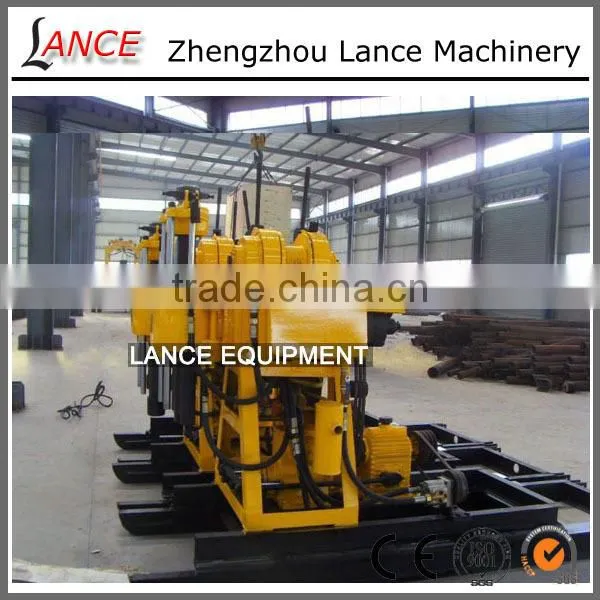

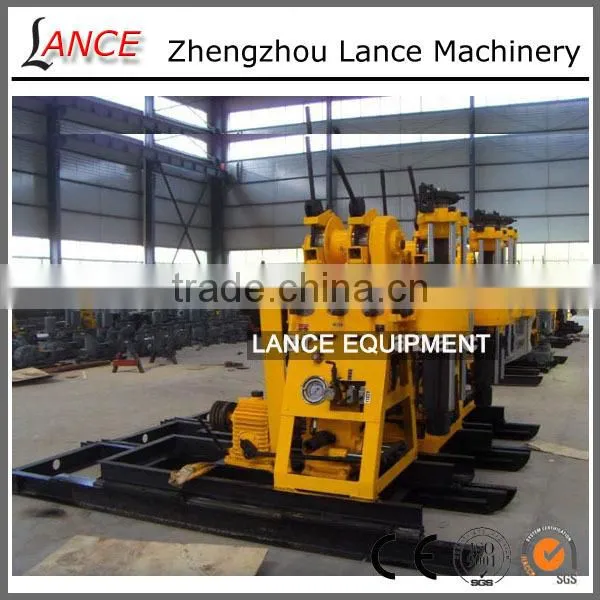

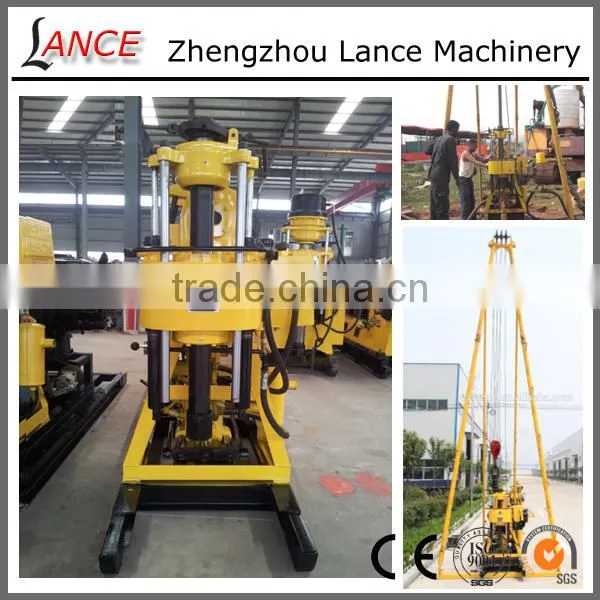

Equipment photos:

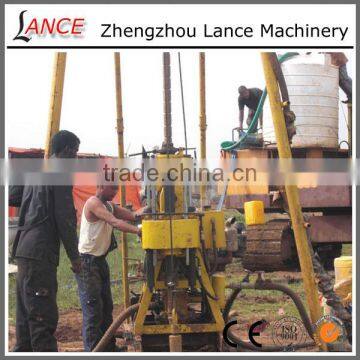

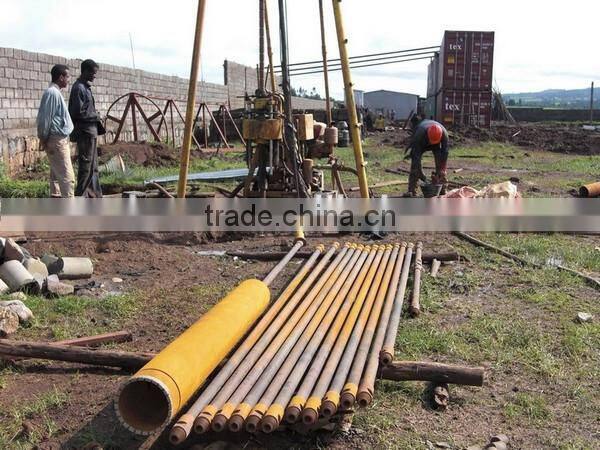

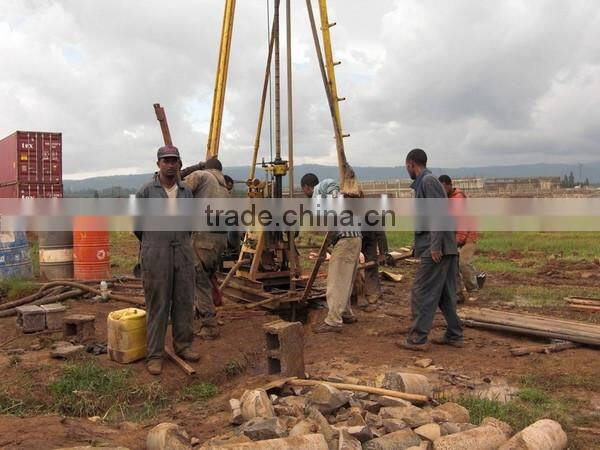

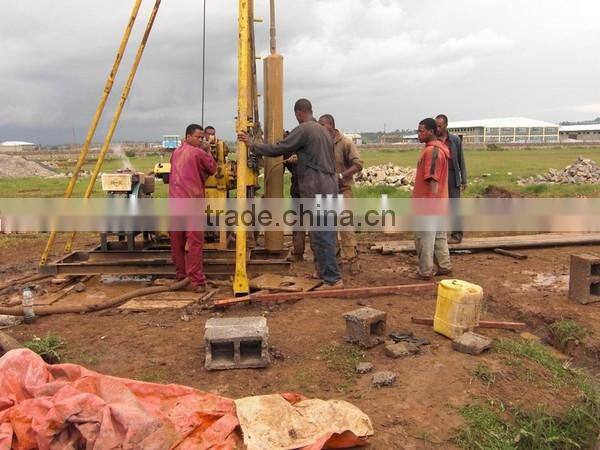

Working field:
Our service:
1. quick response, enquiries or questions shall be answered within 12 hours
2. professional advice helping you get ideal items
3. top quality goods with international certificates
4. prompt shipment by reputed shipping lines with professional documents for goods picking up
5. 24 hours on line after-sale service, removing international purchase worries
Main certificates:
Contact us:
