6mm Flat Die Wood Pellet Machine price reasonable
| Advantages |
1. High efficiency and output with low energy consumption
Reasonable and professional design, the machine feeds and press evenly, and discharges pellets with low damage.
2.The pellets it produces are smooth and even, of high standard hardness and heat value.
3. Movable machine with motor, creates no oily fume or pollution, of low noise.
4. Stronger and durable spare parts, such as that the roller is made by high grad complex alloy steel
5. Equip various kinds of pore diameter flat die to choose.
| Working Principle |
The KL series pellet mills machine use the motor as the driving force for initiative axis, and operate cyclely. Major axis and disk mode are drived by gear wheels to produce the friction with the pressure roll bolt, the resulting friction temperature ( between pressure roller and the mode tray can reach 80°c . The powder material become paste at high temperature and is condensed into pieces, then go through the hole on the mode tray. The high-quality forming pellets will be rolling out from the exit of machines under the role of the pressure roller . At the same time, the length of pellets can adjust according to location of the cutter segment.

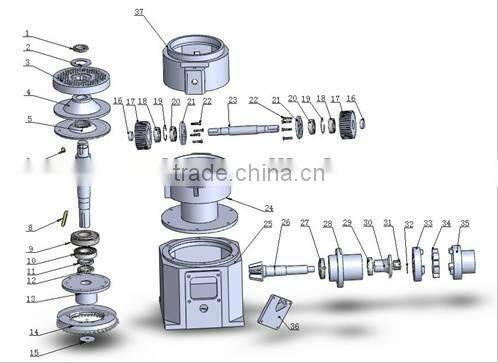

| Structure |
| Main Technical Parameter of Wood Pellet machine |
B Series
Model |
Capacity for Feed |
Capacity for wood |
Power |
Net Weight |
KL120B |
75-100 kg/h |
40-80kg/h |
2.2-3 kw |
80 kg |
KL150B |
90-120 kg/h |
50-100 kg/h |
4 kw |
95 kg |
KL200B |
200-300 kg/h |
80-120 kg/h |
7.5 kw |
190 kg |
KL230B |
300-400 kg/h |
120-200 kg/h |
11 kw |
280 kg |
KL260B |
400-600 kg/h |
160-250 kg/h |
15 kw |
330 kg |
KL300B |
700-800 kg/h |
250-400 kg/h |
22 kw |
430 kg |
C Series
Model |
Capacity for Feed |
Capacity for wood |
Power |
Net Weight |
KL150C |
90-120 kg/h |
50-100 kg/h |
4 kw |
95 kg |
KL200C |
200-300 kg/h |
80-120 kg/h |
7.5 kw |
200 kg |
KL230C |
300-400 kg/h |
120-200 kg/h |
11 kw |
290 kg |
KL260C |
400-600 kg/h |
160-250 kg/h |
15 kw |
340 kg |
KL300C |
700-800 kg/h |
250-400 kg/h |
22 kw |
440 kg |

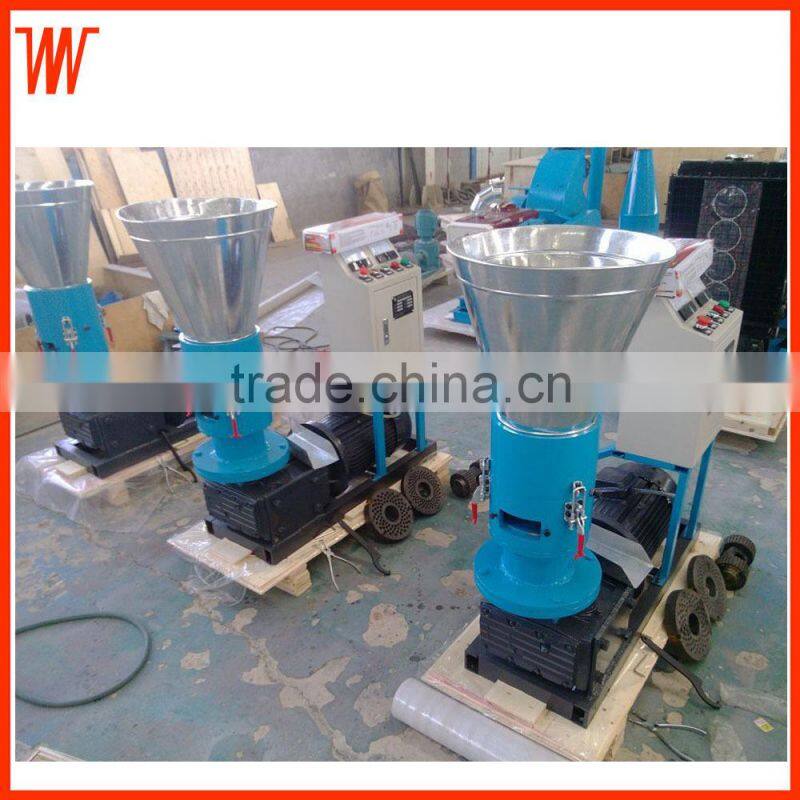

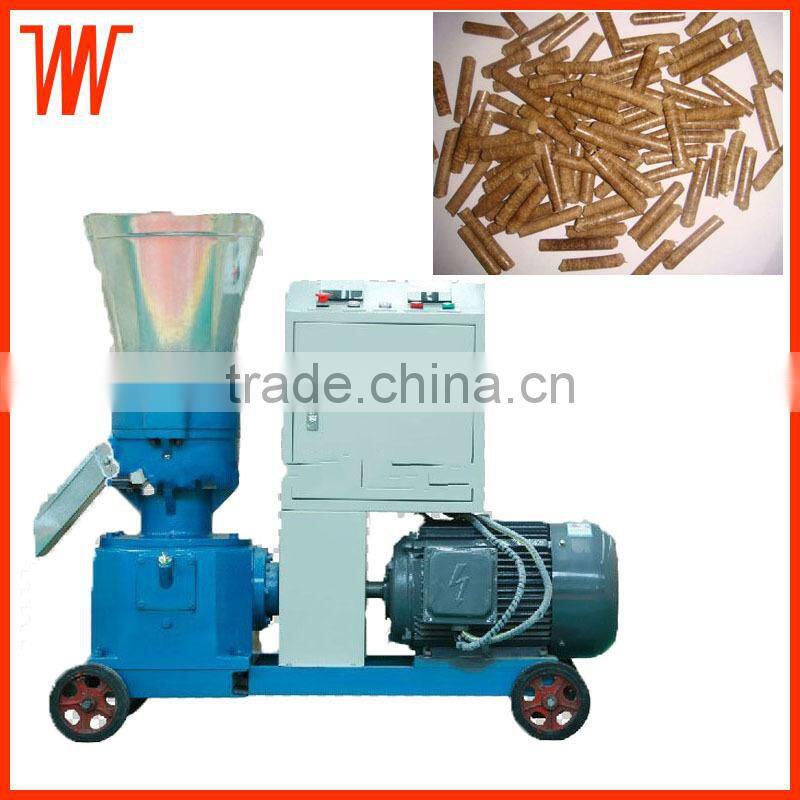

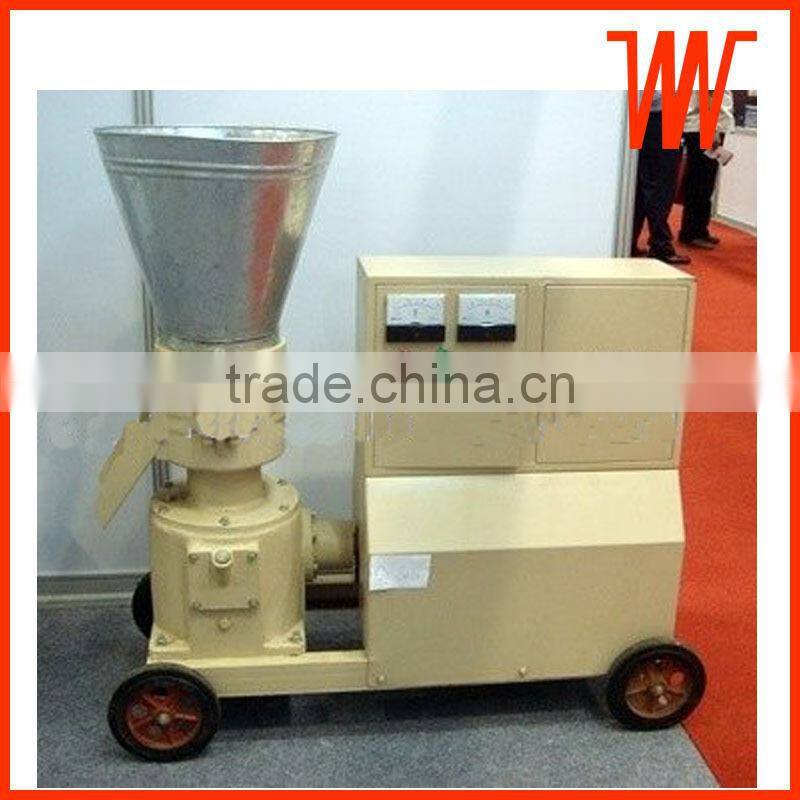

Other pictures of Wood Pellet machine

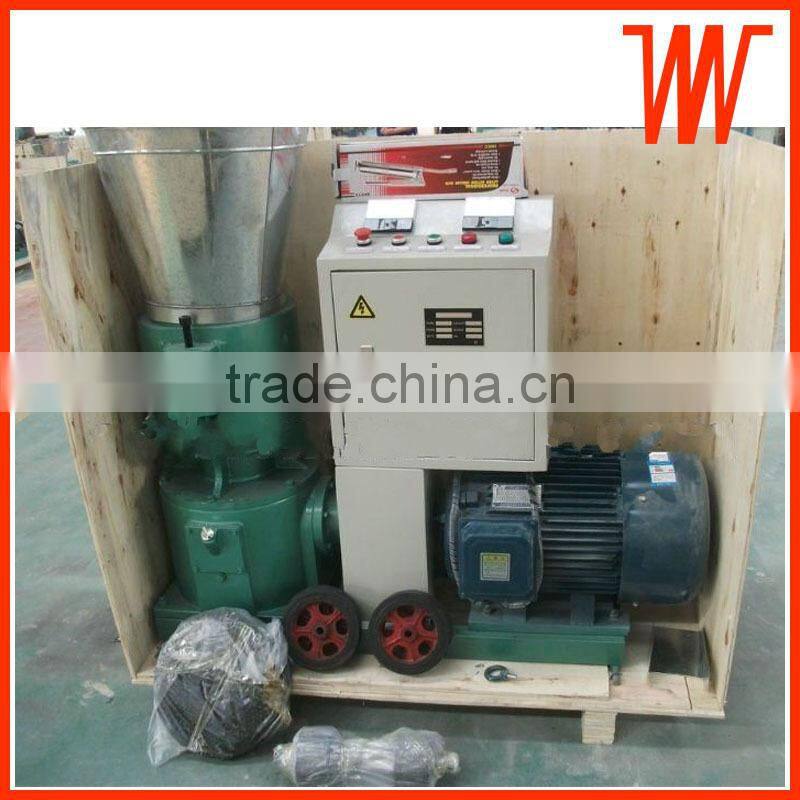

Packing pictures for Wood Pellet machine
Wood Pellet machine factory workshop picture:
Welcome to visit our factory and test our machine in our workshop,Pls contact us for details!!!
