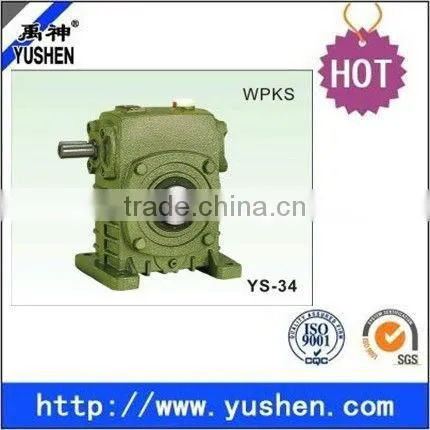

WPKA Cast iron Worm speed reducer gearbox 1400rpm electric motor Reduction Gearbox
Features:
1.widely used in turbines, shaft liners and axletrees;good resistance to wear, with high precision in dimensions,low noise, advanced centric running castings.
2.With air vent and high precision.
3.The structure is compact and the weight is large.
4.Packing:wooden cases or can be according to customer's requirements.
Characteristics:
(1) With excellent quality
(2) Reasonable price
(3) Promise to delivery on time
(4) Large output torque
(5) Safe, reliable, economical and durable
(6) Stable transmission, quiet operation
(7) High heat-radiating efficiency, high carrying ability
(8) Certificate of quality: ISO9001:2008
(9) Every product must be tested before sending
General Technical data:
| Item name: |
WPKS
|
| size number: |
40,50,60,70,80,100,120,135,147,155,175,200,250
|
| ratio: |
1/10,1/15,1/30,1/20,1/40,1/25,1/50,1/60
|
| color: |
green,blue,silver,black and other customize color
|
| material: |
housing is made of HT200 worm wheel is made of aluminium bronze
|
| packing: | Inner pack: use plastic bag a Inner pack: use plastic bag and foam box, outer pack: carton or wooden case 1 set/bag/carton or based on customer's request |
| bearing: |
NSK & Homemade bearing
|
| seal: |
SKF NAK seal from TAIWAN
|
| input power: |
0.12KW,0.18kw,0.37kw,0.55kw,0.75kw,1.5kw,2.2kw,3.0kw,4.0kw,5.5kw,7.5kw,11.0kw,15.0kw
|
| shaft direction: | A,B,C,D,E |
| input form: |
IEC flange for mounting motor,solid
|
| output form: | solid shaft,hollow shaft |
| weight: | 4-360KGS |
| application: |
In industrial machine:food stuff,ceramics,chemical, packing,printing,dyeing,woodworking,glass and plastics
|
| warranty: | 1 year |
Related product photos in the following;
internal structure:

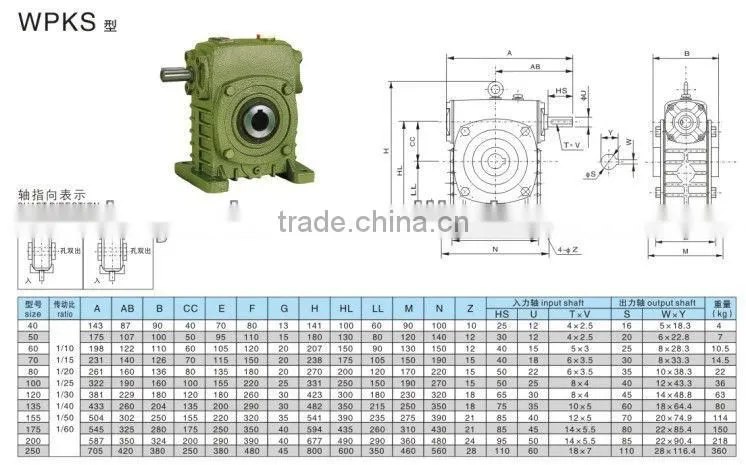

detailed data:
factory photos in the following;
quality control:
certification:
booth infomation:
loading container;
make delivery:
contact information:
