Good Quality Industrial Ball Mill With Competitive Price

Good Quality Industrial Ball Mill With Competitive Price thumbnail-1
Good Quality Industrial Ball Mill With Competitive Price photo-1
US$ 5,525 - 9,875 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Hongji Mine Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 245kw
Capacity(t/h) 8-43, 0.65-130
Place of Origin Henan, China
Brand Name Hong Ji
Model Number 2100*4500
Dimension(L*W*H) 1830mm*7000mm
Weight 30t
Certification ISO, ISO9001:2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Features of ball mill :
1. High efficiency;
2. Low energy cost;
3. High production capacity and economy



                  Henan Hongji Mine Machinery Co.,Ltd





Ball mill machine introduction:



Ball mill is the key equipment for grinding after the crush process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.



 Good quality industrial ball mill with competitive price

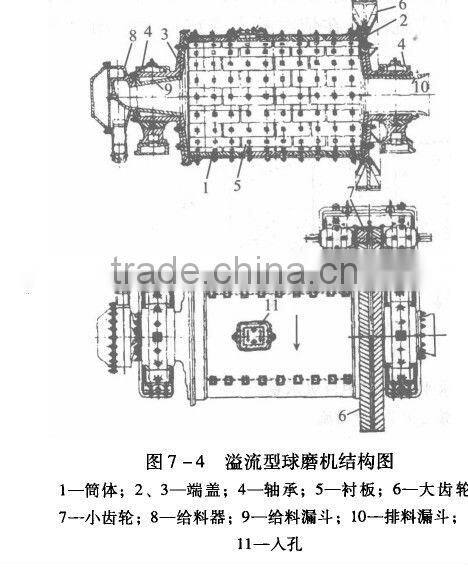

1. Cylinder  2,3.  Cover  4.Bearing  5.Liner 6.Big gear wheel 7.Small gear wheel  8.Feeding machine

9. Feeding hopper  10.Discharging hopper  11.Manhole



Features of ball mill:



a.All kinds of specifications.
b. High efficiency and low consumption.
c. Stable working and easy operation.



Application of ball mill:



The main bearings of this machine put to use aligning spherical roller bearing double row,and can

reduce energy consumption 30%.The machine is used in cement,refractories,chemicals,nonferrous and ferrous metals and other industrial sectors of factories mines for grinding vrious ores or another materials grindig.



Main technical parameters of ball mill:



Model

Rotationna speed
r/min

Ball load
t

Feeding size
mm

Output size
mm

Capacity
t/h

Power
kw

Weight
t

900×1800

36-38

1.5

≤20

0.075-0.89

0.65-2

18.5

4.6

900×3000

36

2.7

≤20

0.075-0.89

1.1-3.5

22

5.6

1200×2400

36

3

≤25

0.075-0.6

1.5-4.8

30

12

1200×3000

36

3.5

≤25

0.074-0.4

1.6-5

37

12.8

1200×4500

32.4

5

≤25

0.074-0.4

1.6-5.8

55

13.8

1500×3000

29.7

7.5

≤25

0.074-0.4

2-5

75

15.6

1500×4500

27

11

≤25

0.074-0.4

3-6

90

21

1500×5700

28

12

≤25

0.074-0.4

3.5-6

130

24.7

1830×3000

25.4

11

≤25

0.074-0.4

4-10

130

28

1830×4500

25.4

15

≤25

0.074-0.4

4.5-12

155

32

1830×6400

24.1

21

≤25

0.074-0.4

6.5-15

210

34

1830×7000

24.1

23

≤25

0.074-0.4

7.5-17

245

36

2100×3000

23.7

15

≤25

0.074-0.4

6.5-36

210

34

2100×4500

23.7

24

≤25

0.074-0.4

8-43

245

42

2100×7000

23.7

26

≤25

0.074-0.4

8-48

280

50

2200×4500

21.5

27

≤25

0.074-0.4

9-45

280

48.5

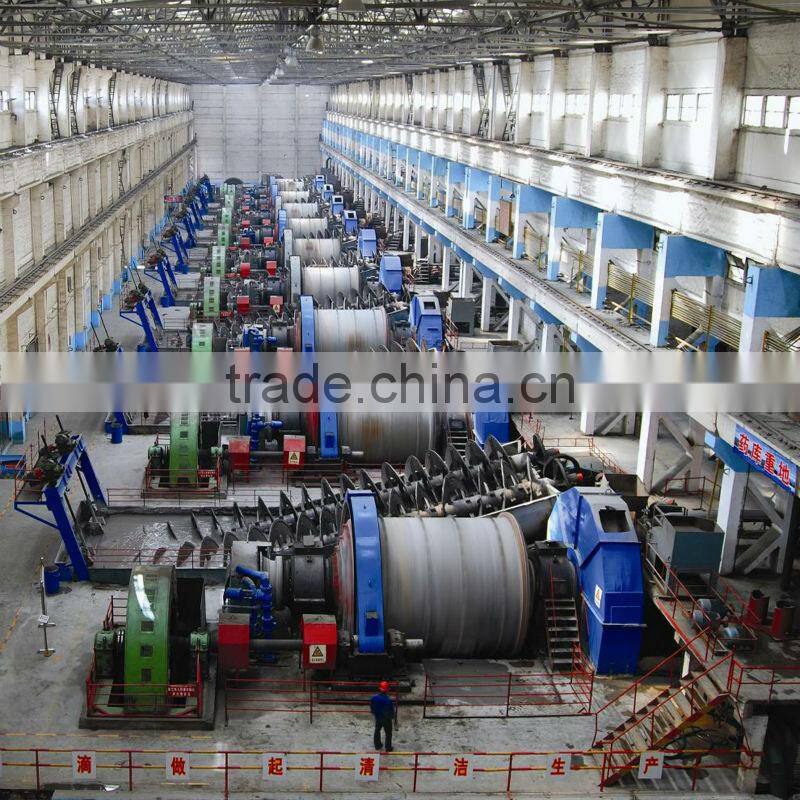

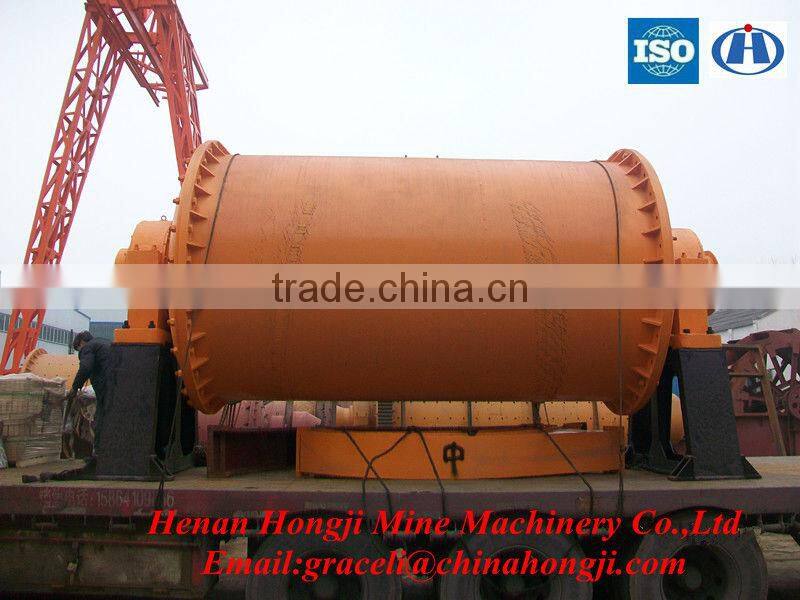

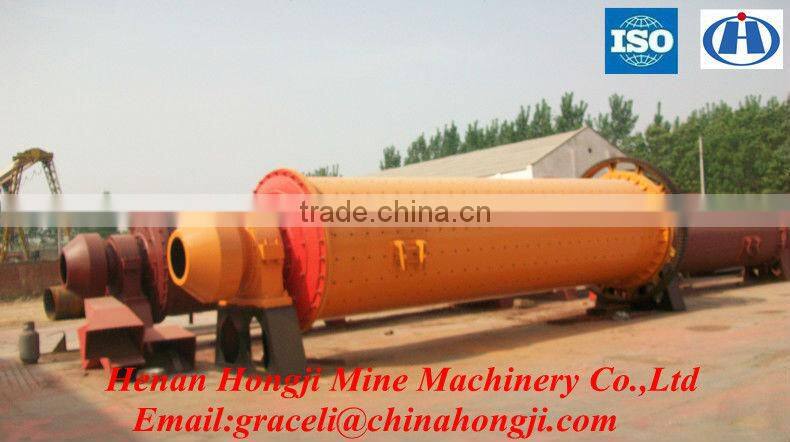

Product show:



Good quality industrial ball mill with competitive price
Good quality industrial ball mill with competitive price

  Good quality industrial ball mill with competitive price



 Other detail:







Payment term



 30% T/T in advance as deposite ,70% balance before the shipment or  irrevocable 100% L/C at sight



Lead time





 Generally 25-30 days after receiving deposit,maybe a little difference as per your quantity



Package



 Export standard sea worthy packing(wooden box,nude packing) or as per requirement
Installnation The Seller will send 1 technical engineer to the Buyer’s site as Technical Director for installation. Expenses should be paid by the buyer,include go abroad,round-trip tickets,hotel,food and not less than $50 dollars salary per day for each technical engineer.



Contact us:



Grace Li

Henan Hongji Mine Machinery Co.,Ltd

Mob: 0086-13673650730

Tel: 0086-371-67668558

Fax: 0086-371-67662768

Skype:hongji_grace

Look forward to the pleasure cooperation with you !!!
