QM Gas Generator from Direct Factory
USD $7,000 - $8,000
/ Set
1 Set(Min.Order)
- 80 Set / Sets per Month
- qingdao shanghai tianjin
- T/T Credit Card
You May Like
Product Details
Condition: | New | Type: | Other, Coal Gasifier | Usage: | Heat Treatment Furnace |
Place of Origin: | Henan, China | Brand Name: | Hongji | Model Number: | QM Series |
Certification: | ISO9001:2008 |
Product Description
Specifications
Gas Generator features:1.Easy to operate
2.Heating uniformity
3.Supply gas continuously and steadily
Composition gas generator:
CO: 23-27%
H2: 12-17%
CH4: 2-3.5%
CO2: <5%
N2: 50-54%
CO: 23-27%
H2: 12-17%
CH4: 2-3.5%
CO2: <5%
N2: 50-54%

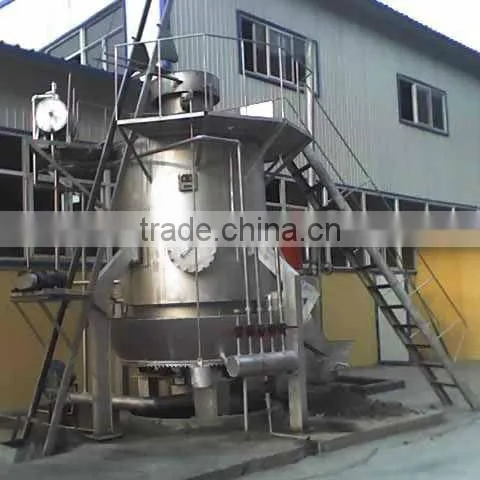

Crude Coal Gas Technics of hot gas generator:
Single stage gasifier generater coal gas with the temperature from 450-550 °C, after that it goes into the gravity dust collector to remove dust and tar, after that coal gas go throught the cyclone dust collector for secondary cleaning, then coal gas was transported to use.
Model | QM0.8 | QM1.0 |
Chamber diameter(mm) | 800 | 1000 |
Hearth active surface(m2) | 0.5 | 0.785 |
Suirable fuel | weak coherent gas carbon,anotherracite,burnt carbon | |
Fuel granularity(mm) | 25-80 | 25-80 |
Fuel consumption quantity(kg/h) | 40-100 | 70-140 |
Gasifying agent | Air ,steam | Air ,steam |
Gas yield(Nm3/h) | 140-350 | 245-490 |
Gas calorific valu(Kj/Nm3) | 5020-5670 | 5020-5670 |
Water jacket heating area(m2) | 4.02 | 5.02 |
Steam output(kg/h) | 60 | 80 |
Gas outlet temperature(°C) | (400-500)Plants related with the coal | |
Gas outlet pressure(Pa) | <1000 | <1000 |
Gas exportation diameter(mm) | 219 | 325 |
Air pressure(Pa) | <3000 | <3000 |
Saturated air temperature(°C) | 50-60 | 50-60 |
Ashpan rotational speed(r/h) | 0.177-1.77 | 0.177-1.77 |
Equipment gross weight(t) | 3.5 | 4.5 |
Complete machine power(kw) | <6 | <6 |
Tuyere diameter(mm) | 108 | 108 |
