Specifications
Coal Gasifier Features:1.Saving energy.
2.Friendly to environment .
3.Easy operation and work stable.
Henan Hongji Mine Machinery Co.,Ltd

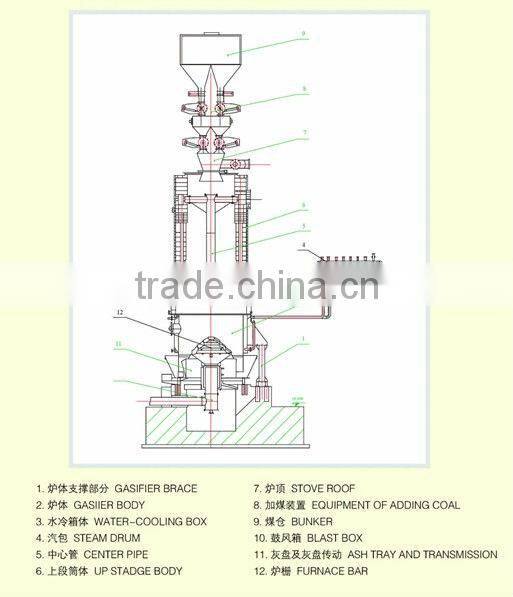

Coal Gasifier Introducion:
Coal gasifier is Electric start, water-cooled, four-stoke, direct injection,compact design with low noise, heavy load durable,low exhaust emission,environmental friendly.
Our coal gasifier uses air and vapor as the gasifying agents to produce mixed gas. It is suitable for gasifying coking coal, hard coke, etc. and is widely used in machinery, metallurgy, chemistry, glass, building materials, food, textile and light industries.
Coal Gasifier Advantages :
- With low investment, good applicability, convenient use, easy operation.
- Compared with direct coal burning, coal gasifier can save 20% of the fuel.
- Compared with oil furnace, coal gasifier can save more than 60% of the energy.
- Our coal gasifier is environment-friendly with its heat efficiency and good dust and smoke removal effect.

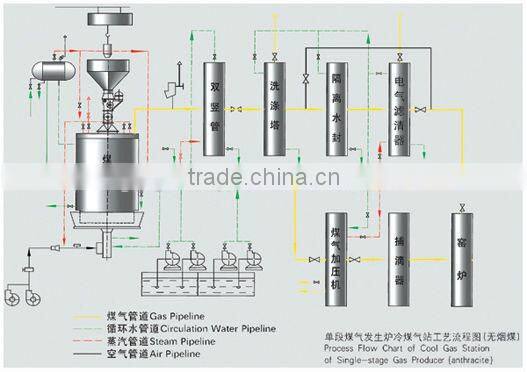

Coal Gasifier Working Principle:
Solid coal can be gasified into inflammable gases through vapor media. This coal gas is then roughly de-dusted and conveyed through a conveying pipe to burn at a nozzle. The heat produced is used to heat the thermal furnace. With the gas as the burning material, the temperature is even on the furnace.
Our single stage coal gasifier is widely used as steel rolling furnace, annealing furnace, forging furnace, steel pipe furnace, glass furnace, aluminum furnace, melting furnace, cooper furnace, pottery furnace, etc.
Coal Gasifier Main Technical Parameters:
| Model(mm) | QM0.8 | QM1.0 | QM1.2 | QM1.5 | QM1.6 | QM1.8 | QM2.0 | QM2.4 | QM2.6 | QM3.0 | QM1.5 |
| Chamber diameter(mm) | 800 | 1000 | 1200 | 1500 | 1600 | 1800 | 2000 | 2400 | 2600 | 3000 | 1500 |
| Hearth active surface | 0.5 | 0.785 | 1.13 | 1.77 | 2.01 | 2.54 | 3.14 | 4.52 | 5.31 | 7.07 | 1.77 |
| Suirable fuel | weak coherent gas carbon,anotherracite,burnt carbon | ||||||||||
| Fuel granularity(mm) | 25-80 | ||||||||||
| Fuel consumption quantitykg/h | 40-100 | 70-140 | 120-190 | 160-350 | 350-460 | 500-600 | 500-720 | 700-1040 | 850-1200 | 1700-2000 | 1800-2200 |
| Gasifying agent | Air ,steam | ||||||||||
| Gas yield(Nm³/h) | 140-350 | 245-490 | 420-670 | 560-1200 | 1200-1600 | 1500-2100 | 1750-2500 | 2500-3600 | 3000-4300 | 6000-7000 | 6500-7500 |
| Gas calorific valu(Kj/Nm³) | 5020-5670 | 5020-6000 | |||||||||
| Water jacket heating area(m2) | 4.02 | 5.02 | 6.78 | 10.37 | 11.06 | 12.44 | 17.58 | 21.87 | 23.69 | 30.16 | 10.37 |
| Steam output kg/h | 60 | 80 | 130 | 200 | 220 | 260 | 350 | 420 | 600 | 840 | 200 |
| Gas outlet temperature(°C) | (400-500)Plants related with the coal | (400-500)Plants related with the coal | |||||||||
| Gas outlet pressure(Pa) | 1000 | 980-1470 | 1470-1960 | 980-1470 | |||||||
| Gas exportation diameter(mm) | 219 | 325 | 325 | 426 | 426 | 529 | 630 | 720 | 820 | 1020 | 426 |
| Air pressure(Pa) | 3000 | 4000 | 3000 | ||||||||
| Saturated air temperature(°C) | 50-60 | 50-65 | |||||||||
| Ashpan rotational speed(r/h) | 0.177-1.77 | ||||||||||
| Equipment gross weight(t) | 3.5 | 4.5 | 5 | 7.5 | 10 | 20 | 23.4 | 29.8 | 32 | 37.6 | 16 |
| Complete machine power(kw) | 6 | 6 | 6 | 7 | 8 | 10 | 14 | 20 | 20 | 27 | 7 |
| Tuyere diameter(mm) | 108 | 108 | 140 | 165 | 219 | 325 | 325 | 426 | 426 | 426 | 219 |

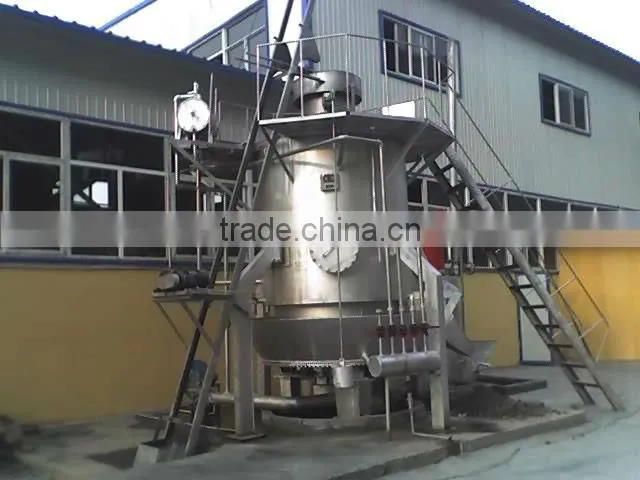

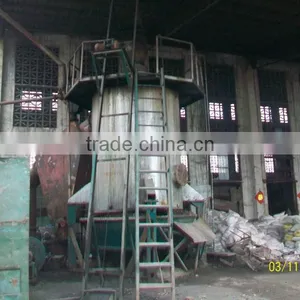

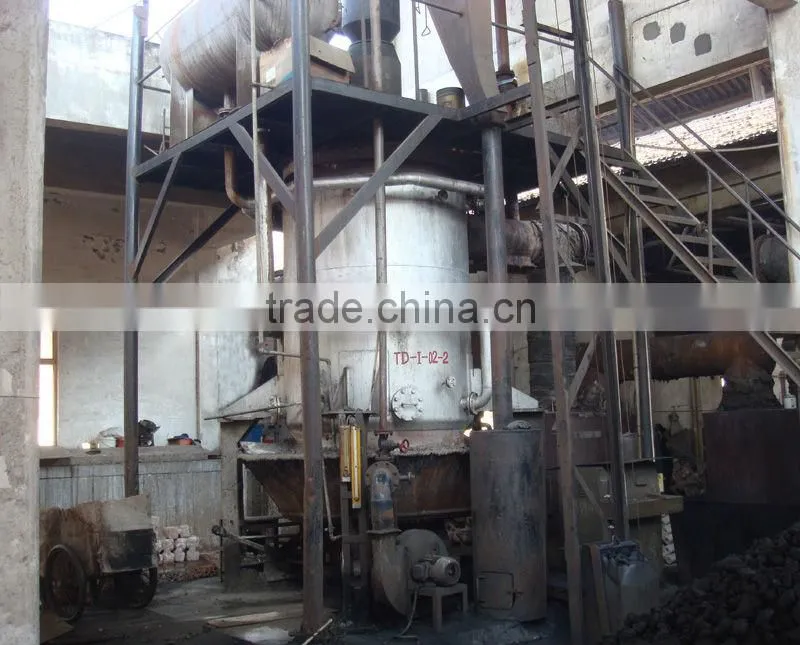

Product Pictures:
|
|
