Specifications
double toothed roller crusher features:1) large crushing ratio, can produce good size material.
2) don't sticky or block
Description about double toothed roller crusher

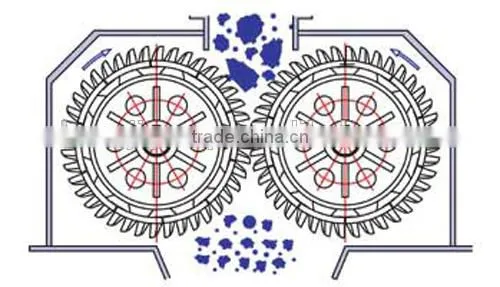

The toothed roller crusher with two relative rotation rollers, on which with pointed item like tooth. They are made of special hardwearing materials. The two rollers relative rotate with high speed,to crush materials, such as coal, slag, limestone.
Features:
1) large crushing ratio, can produce good size material.
2) without required about raw material moisture, don’t sticky or block
3) output size can be adjusted according to raw material features
Double Toothed roller crusher technical data
Model |
450*500 |
600*750 |
1250*1600 |
Roller diameter(mm) |
450 |
600 |
1250 |
Roller length(mm) |
500 |
750 |
1600 |
Max feeding size(mm) |
200 |
600 |
200 |
Output size(mm) |
≤100 |
≤125 |
≤75 |
Capacity(t/h) |
20-55 |
60-125 |
150-250 |
Roller speed(r/min) |
64 |
50 |
60 |
Motor power(kw) |
8-11 |
22 |
135 |
Motor speed(r/min) |
725 |
735 |
1480 |
Overall size(mm) |
2160*2492*758 |
3700*3265*1144 |
7700*4900*2100 |
Weight(kg) |
3400 |
8340 |
50000 |
Certificate
Customer visit
So far, Hongji machinery had been sold to Russia, Pakistan, Korea, Indonesia, Mexio, Australia, Spain, Ukraine, U.S.A ,South Africa, Arabia and so on.Welcome you visit our company.
workshop
So far, there are advanced process equipment in our workshop, such as rolling machine, welding machine, boring machine, which can ensure the machinery's quality
