Specifications
gravity separator machine Features:1) Big steel intensity
2) Low water-absorptivity
3) High efficiency
There are shaking table, magentic separators, spiral classifier, ball mills, spiral chutes, and related mineral ore separation equipments. copper ore, iron ore, gold ore, titanium ore, manganese ore and so on , special design can be offered according to raw material features and required. welcome inquiry us.

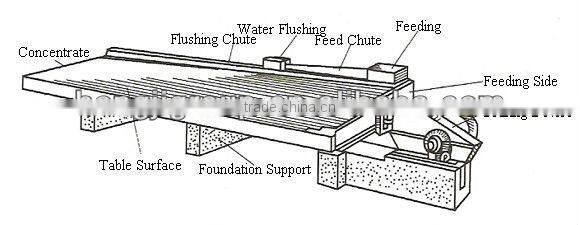

Shaking Table Machines Introduction:
Shaking table (shake table) is one of the important dressing equipment depending on the gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.
The raw materials on the shaking table are with mixed densities, the suspending particles of the materials will leak down from the shaking table for its bearing the larger force. When the shaking table works, the raw materials on the table will tumbling and sliding with the shaking table. The different speed of the particles will lead the table expanding, then the particles with smaller size will screening out. The raw mineral materials will be selecting by adjusting the speed of the table.
Features of Shaking Table Machines:
1) Big steel intensity;
2) Low water-absorptivity,anti-chemical corrosion acid;
3) High efficiency.
Technical Parameters of Shaking Table Machines:
Model |
L-S type(6-S) |
Water comsumption(t/h) |
0.4-0.8 |
Stroke(mm) |
10-30 |
Table size (mm) |
1520*1825*4500 |
Frequency(time/min) |
240-360 |
Motor(kw) |
1.1 |
Horizontal obliquity(o) |
0-8 |
Capacity(t/h) |
0.5-1.2 |
Sorting size(mm) |
2-0.074 |
Weight (kg) |
1012 |
Feeding thickness(%) |
15-30 |
Dimension(mm) |
5454*1825*1242 |

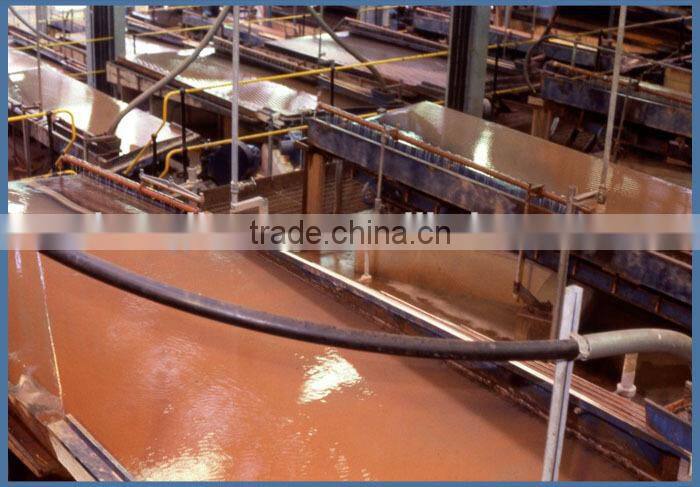

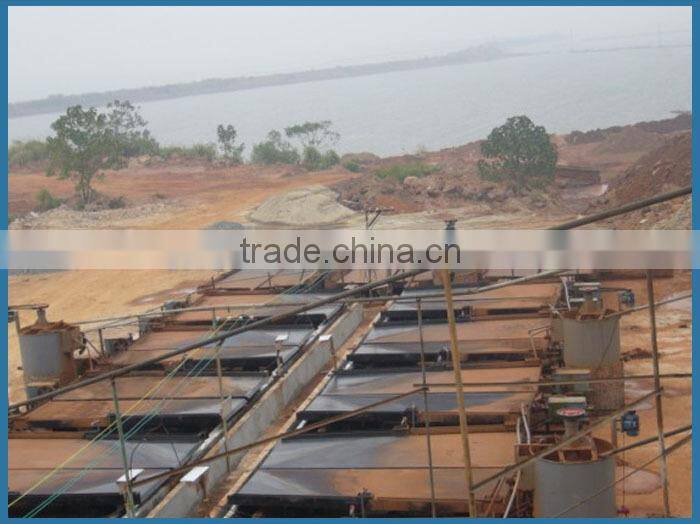

Shaking table working site
Certificate
Customer visit
So far, Hongji machinery had been sold to Russia, Pakistan, Korea, Indonesia, Mexio, Australia, Spain, Ukraine, U.S.A ,South Africa, Arabia, iran and so on.Welcome you visit our company
Workshop
So far, there are advanced process equipment in our workshop, such as rolling machine, welding machine, boring machine, which can ensure the machinery's quality.
After-sell service
1) our engineer will guide and train worker to install and operate equipments, detailed installing drawing will be offered.
2) if there is any problem about equipments during reasonable operation within one year, we will ask engineer to solve problems for you.
