Dry Magnetic Separator Equipment Manufacturer in China

Dry Magnetic Separator Equipment Manufacturer in China photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Magnetic Separator
Production Capacity:
85-95%
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tanjing
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Magnetic Separator
Production Capacity 85-95%
Place of Origin Henan, China
Brand Name HongJi
Model Number GSC
Voltage 380V
Power(W) 1.1-15KW
Dimension(L*W*H) Depend on models
Weight Depend on models
Certification ISo9001:2008
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

magnetic separator equipment
1 High magnet intensity
2 Low energy consumption
3 dry process
4 ISO9001:2008

There are dry and wet magnetic separators, with different magnetic field intensity according to mineral ore features.



Dry magnetic separator machines:

The series dry magnetic separator (from single cylinder to four cylinders) can eliminate iron from dry powder continuously

and automatically. Its magnetism is designed uniquely. The magnetic source is permanent magnetic NdFeB materials

which is the king of magnetism. It has strong magnetic field and attractive force, and high rate of eliminating iron. It also

has the characteristics of maintenancefree, energysaving, safety and reliability. We can control the quantity of materials

of different particles. It can be used in abrasive tools, refractory, nonmetallic mineral, carbon, food, feed, chemical

materials, etc.

Main technical parameters of dry magnetic separator:

Model

Cylinder Size (mm)

Magnetic induction

Power (<=kw)

Cylinder speed (<=m/s)

Weight (kg)

Remarks

GSC-618

600x1800

1000-5000

2.2

46

3320

It allows cutomized

design

 for

magnetic field

strength

and

specification



GSC-718

750x1800

1000-5000

3.0

46

2500

GSC-7520

750x2000

1000-5000

3.0

46

3870

GSC-7522

750x2200

1000-5000

4.0

46

4050

GSC-7526

750x2600

1000-5000

4.0

46

4420

GSC-9018

900x1800

1000-5000

5.5

36

5750

GSC-9024

900x2400

1000-5000

7.5

36

6050

GSC-10240

1050x2400

1000-5000

11

36

8300

GSC-12240

1200x2400

1000-5000

15

30

12000

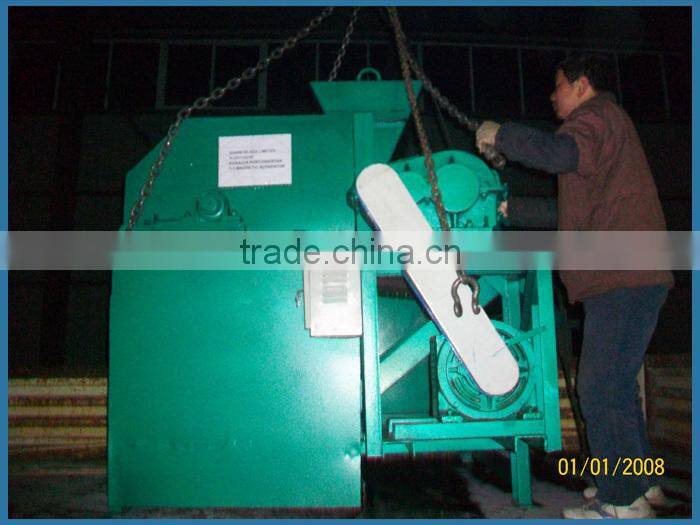

 Magnetic separator delivery

dry magnetic separator equipment manufacturer in China

magnetic separator for sand

dry magnetic separator equipment manufacturer in China



 Certificate



Customer visit



So far, Hongji machinery had been sold to Russia, Pakistan, Korea, Indonesia, Mexio, Australia, Spain, Ukraine, U.S.A ,South Africa, Arabia, iran and so on.Welcome you visit our company

dry magnetic separator equipment manufacturer in China



Workshop



 So far, there are advanced process equipment in our workshop, such as rolling machine, welding machine, boring machine, which can ensure the machinery's quality.
