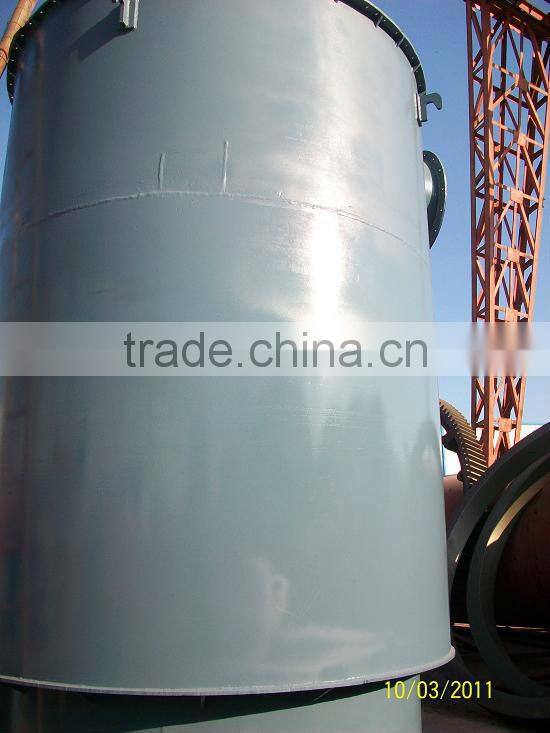

High Quality Coal Gasifier for Electric Generator Power
US$ 7,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Hongji
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Energy Saving Qm-3 Coal Gasifier ManufacturerNegotiableMOQ: 1 Set -
China Famous Single Stage Coal Gasifier to Make Coal GasNegotiableMOQ: 1 Set
-
Good Quality Coal Gasifier Suitable for Pakistan MarketNegotiableMOQ: 1 Set
-
High Effiency Coal Gasifier Used For FurnaceNegotiableMOQ: 1 Set
-
High Output Coal Gas Generator, Coal GasifierNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
Hongji
Model Number
QM2.0
Usage
Other, coal, dryer, Boiler, Kilin,Electric generator
Voltage
<1960
Power(W)
<27
Weight
3.5-37.6T
Certification
CE,ISO,SGS
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Production Rate
1600
Specifications
coal gasifier Features:1.Easy to operate
2.Heating uniformity
3.Supply gas continuously and steadily
al gasifier specification:
(1).quick start&small invest
(2).safe and pro-environment
(3).save 20% fuel
(4).ISO9001-2008,CE
coal gasifier is hongji's major product, professional technology support and all-around service
can be offered to you, we also can made according to your special requirments. Welcome you
visit our company to know more about us!
2.Composition of Single Stage Coal Gas Generator:
CO: 23-27%
H2: 12-17%
CH4: 2-3.5%
CO2: <5%
N2: 50-54%
CO: 23-27%
H2: 12-17%
CH4: 2-3.5%
CO2: <5%
N2: 50-54%
3.Technics of Single Stage hot gas station:
Single stage gasifier generater coal gas with the temperature from 450-550 °C, after that it goes into the gravity dust collector to remove dust and tar, after that coal gas go throught the cyclone dust
collector for secondary cleaning, then coal gas was transported to use.
| Model | QM0.8 | QM1.0 |
| Chamber diameter(mm) | 800 | 1000 |
| Hearth active surface(m2) | 0.5 | 0.785 |
| Suirable fuel | weak coherent gas carbon,anotherracite,burnt carbon | |
| Fuel granularity(mm) | 25-80 | 25-80 |
| Fuel consumption quantity(kg/h) | 40-100 | 70-140 |
| Gasifying agent | Air ,steam | Air ,steam |
| Gas yield(Nm3/h) | 140-350 | 245-490 |
| Gas calorific valu(Kj/Nm3) | 5020-5670 | 5020-5670 |
| Water jacket heating area(m2) | 4.02 | 5.02 |
| Steam output(kg/h) | 60 | 80 |
| Gas outlet temperature(°C) | (400-500)Plants related with the coal | |
| Gas outlet pressure(Pa) | <1000 | <1000 |
| Gas exportation diameter(mm) | 219 | 325 |
| Air pressure(Pa) | <3000 | <3000 |
| Saturated air temperature(°C) | 50-60 | 50-60 |
| Ashpan rotational speed(r/h) | 0.177-1.77 | 0.177-1.77 |
| Equipment gross weight(t) | 3.5 | 4.5 |
| Complete machine power(kw) | <6 | <6 |
| Tuyere diameter(mm) | 108 | 108 |

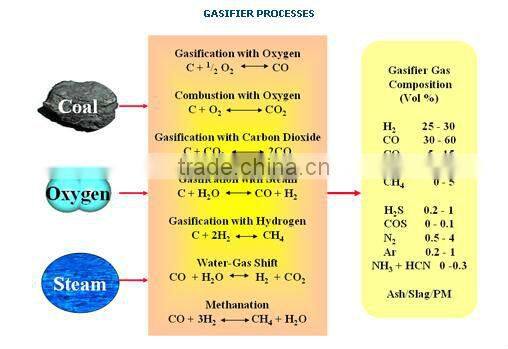

4. working principle of the coal gasifier

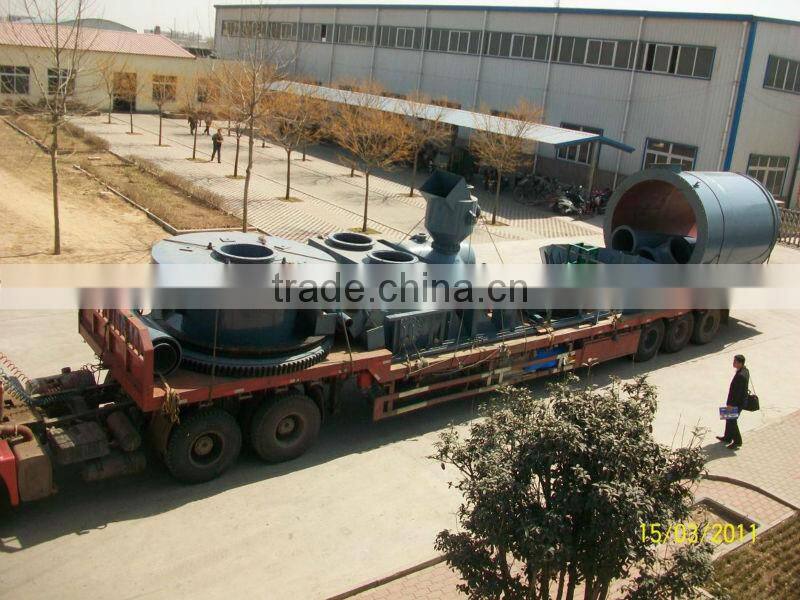

5.Product show and delivery
6.Certificate
