Features
1.Superior Strength, Less Flexible than Fiber Core
2.Used with Cranes, Dredging, Excavating, Logging, Oil, and Marine
3.Winch Lines, Choker Ropes, Hoist Ropes, Trolley Lines, and Boom Lines
Brief Description
1.Made of durable EIPS (Extra Improved Plowed Steel).
2.This bright wire rope features an IWRC or Independent Wire Rope Core.
3.The steel rope core helps add strength and durability to the 6x37 class wire rope by supporting the outer wires.
4.The 6x37 class wire rope has many more wires per strand than the 6x19 so it is more flexible yet is less resistant to abrasion.
Specification
Diameter |
Steel Grade |
Core |
Class |
Material |
Quantity |
Weight |
Break Strength |
1/4” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
0.116 lbs |
6800lbs |
5/16” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
0.18 lbs |
10540lbs |
3/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
0.26lbs |
15100lbs |
7/16” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
0.35lbs |
20400lbs |
1/2” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
0.46lbs |
26600lbs |
9/16” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
0.59lbs |
33600lbs |
5/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
0.72lbs |
41200lbs |
3/4” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
1.04lbs |
58800lbs |
7/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
1.42lbs |
79600lbs |
1” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
1.85lbs |
103400lbs |
1-1/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
2.34lbs |
130000lbs |
1-1/4” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
2.89lbs |
159800lbs |
1-3/8” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
3.50lbs |
192000lbs |
1-1/2” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
4.16lbs |
228000lbs |
1-3/4” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
5.67lbs |
306000lbs |
2” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
7.39lbs |
396000lbs |
2-1/4” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
9.36lbs |
494000lbs |
2-1/2” |
Extra Improved Plowed Steel (EIPS) |
(IWRC) |
6x37 |
Bright Steel |
Ordered in lineal feet |
11.6lbs |
604000lbs |
More About 6x37 Bright Wire Rope EIPS IWRC (Steel Core)

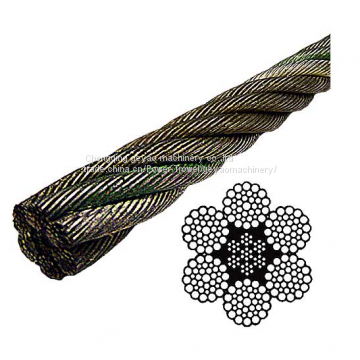

6x37 wire rope is a more flexible cable wire than 6 x 19 wire rope, due to the higher number of wires per strand. However, this configuration has less resistance to abrasion than 6 x 19 wire ropes. The actual rope construction is 6x36, with 6 strands/35 wires per strand. This type of steel cable is found in many industries, including crane work, dredging, excavating, logging, oil fields, and marine environments. Common applications include winch wire rope, choker and hoist ropes, boom lines, and trolley lines.
The grade of steel used in our 6 x 37 bright wire rope is known as EIPS, meaning Extra Improved Plowed Steel. EIPS wire rope has roughly 10% more strength than regular IPS. An independent wire rope core (IWRC) provides added strength and will also reduce the amount of stretch. A 6 x 37 IWRC wire rope will also offer more resistance to heat than a similar fiber core wire rope. The bright wire finish does not provide corrosion resistance as well as wire rope with a galvanized or stainless steel finish.
Production Process

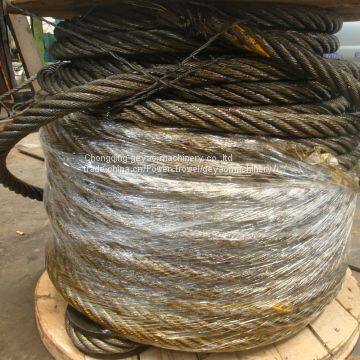

Storage
For your inquiry,please send me blow information.
1.Application: For which rope will be used.
2.Size: Diameter of the rope in millimeter or inches.
3.Construction: Number of strands, number of wires per strand and type of strand construction.
4.Type of Core: Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
5.Lay: Right regular lay,left regular lay,right lang lay,left lang lay.
6.Lubrication:Preformed or not.
7.Material: Bright(un-galvanized),galvanized or stainless steel
8.Grade of wire: Tensile strength of wires
9.Breaking Load: Minium or calculated breaking load in tones or pounds.
10.Length: Length of wire rope.
11.Packing: In coils wrapped with oil paper and hessian(orp.p)cloth, or on wooden reels.
12.Quantity: By number of coils or reels,by length or weight
