Features
1.Excellent General Purpose Steel Cable, Flexible and Wear Resistant
2.Used with Winch Lines, Garage Door Cable, Exercise Equipment, and Railings
Brief Description
1.A great choice for cable railing systems installed around docks, decks, porches, stairs, etc.when a clear, unobstructed view is needed.
2.Galvanized finish provides some protection from the elements, so it's good for both indoor and outdoor uses.
3.Do not exceed suggested working load limit; not intended for overhead lifting or aircraft use.
Specification
Diameter |
Class |
Material |
Quantity |
Break strength |
3/32” |
7x19 |
Galvanized steel |
Ordered in lineal feet |
1000lbs |
1/8” |
7x19 |
Galvanized steel |
Ordered in lineal feet |
2000lbs |
5/32” |
7x19 |
Galvanized steel |
Ordered in lineal feet |
2800lbs |
3/16” |
7x19 |
Galvanized steel |
Ordered in lineal feet |
4200lbs |
7/32” |
7x19 |
Galvanized steel |
Ordered in lineal feet |
5600lbs |
1/4” |
7x19 |
Galvanized steel |
Ordered in lineal feet |
7000lbs |
5/16” |
7x19 |
Galvanized steel |
Ordered in lineal feet |
9800lbs |
3/8” |
7x19 |
Galvanized steel |
Ordered in lineal feet |
14400lbs |
More About 7x19 Galvanized Steel Cable
Although 7 x 19 wire rope is commonly called aircraft cable, it’s not intended for aircraft use. The construction includes 7 strands with 19 wires per strand in galvanized steel, creating a small diameter cable that’s flexible and resistant to corrosion. This type of general purpose galvanized aircraft cable is found in a range of industries in applications such as winch lines, garage door cables, fences, railings, sailboat rigging, and exercise equipment.
A galvanized finish is excellent at providing resistance to corrosion on 7x19 cable, but does not offer the same level of protection a stainless steel wire rope will offer. However, galvanized aircraft cable does provide slightly more strength than stainless steel. For additional protection, this configuration is also available in a vinyl coated wire rope option.

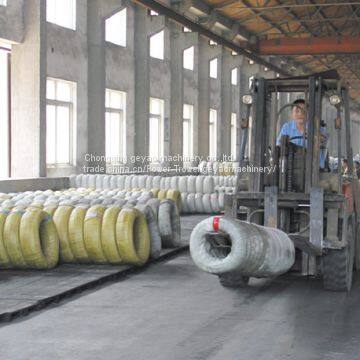

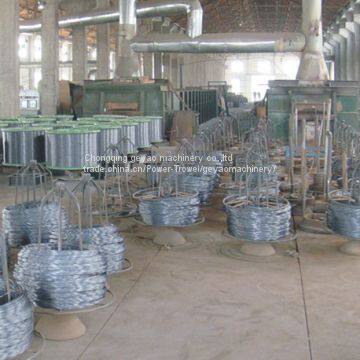

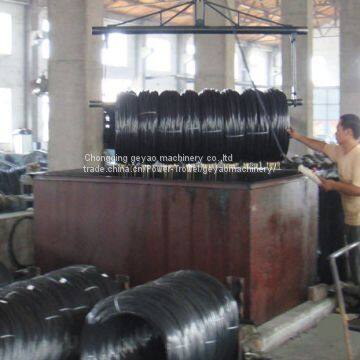

Production Process
Storage
For your inquiry,please send me blow information.
1.Application: For which rope will be used.
2.Size: Diameter of the rope in millimeter or inches.
3.Construction: Number of strands, number of wires per strand and type of strand construction.
4.Type of Core: Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
5.Lay: Right regular lay,left regular lay,right lang lay,left lang lay.
6.Lubrication:Preformed or not.
7.Material: Bright(un-galvanized),galvanized or stainless steel
8.Grade of wire: Tensile strength of wires
9.Breaking Load: Minium or calculated breaking load in tones or pounds.
10.Length: Length of wire rope.
11.Packing: In coils wrapped with oil paper and hessian(orp.p)cloth, or on wooden reels.
12.Quantity: By number of coils or reels,by length or weight
