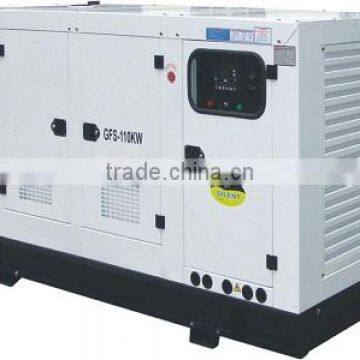

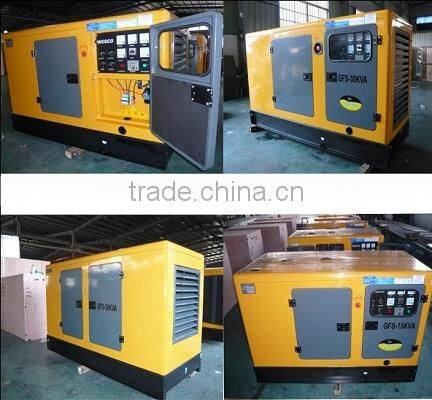

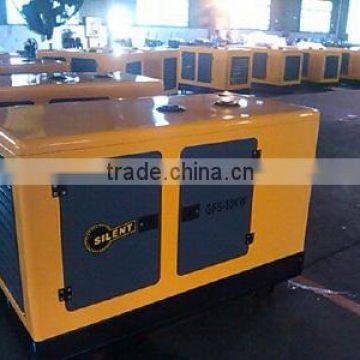

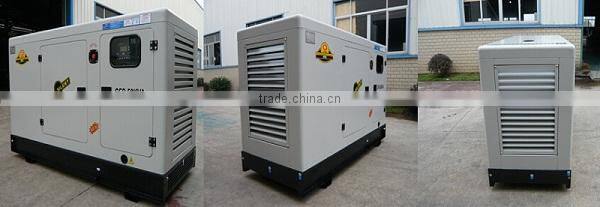

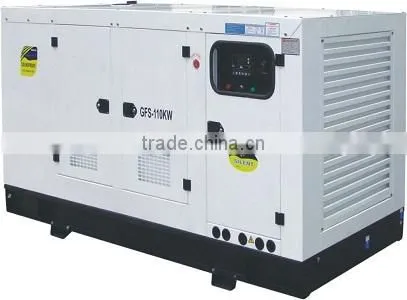

diesel generator 8kw/10kw/12kw for center pivot
- 100 Set / Sets per Month
- Dalian
- T/T
- Irrigation equipment center pivot parts of Frequency convertor & Pressure sensor system
- Irrigation machinery center pivot parts of Vertical Turbine Pump
- Single Stage Double Suction Axially Split Casing Centrifugal Pump
- Mechanical Parts of Solenoid valve for Irrigation system Center pivot
- center pivot irrigation system parts of gear box
- center pivot irrigation machine
Product Details
Place of Origin: | Fujian, China | Output Type: | AC Three Phase | Frequency: | 50HZ |
Rated Power: | 8KW/10KW/12KW/15KW | Rated Voltage: | 380V |
Packaging Details

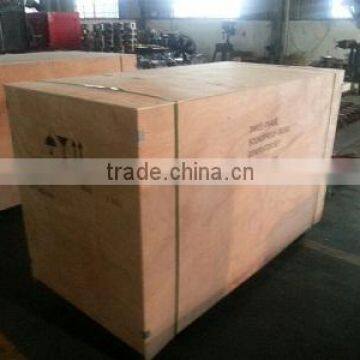

plywooden case
Product Description

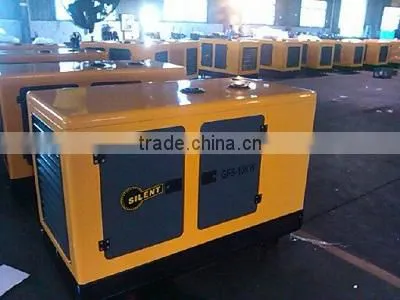

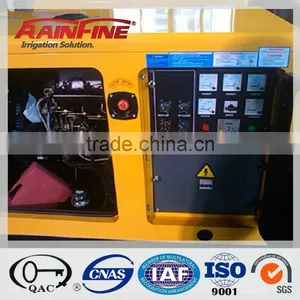

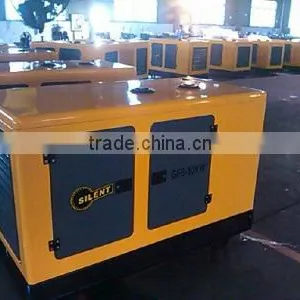

Description of diesel generator 8kw/10kw/12kw for center pivot:
1. Engine 50hz 1500rpm
Standard for Radiator mounted on skid.
Fans are driven by belt, with safety guard
12V/24V charge alternator
Battery with Battery Charger, loose silencer, elbow pipe, supplied with the expansion joint.
Dry type air filter, fuel filter, oil filter
Standard tools kit
2. Brushless Alternator
single bearing AC brushless alternator
IP23, insulation class H,with AVR
3. Main line circuit breaker

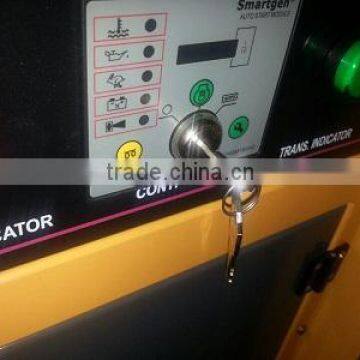

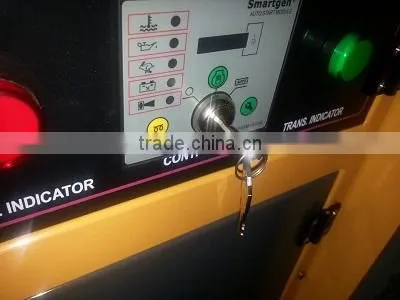

Manual control panel with meters and smartgen protection HGM180HC
Standard 3P Circuit breaker for overload and short circuit protections
4. Gen-set with 8~10 hours base fuel tank and Accessaries.Absorber,muffler
Technical Parameter of Diesel Generating Set | GENSET | GFS-8KW | GFS-10KW | GFS-12KW | GFS-15KW | |
Rated Power | kw | 8.0 | 10.0 | 12.0 | 15.0 | |
Apparent Power | kva | 10.0 | 12.5 | 15.0 | 18.8 | |
Standby Power | kw | 8.8 | 11.0 | 13.2 | 16.5 | |
kva | 11.0 | 13.8 | 16.5 | 20.6 | ||
Rated Voltage | v | 110~480v | ||||
Power Factor | Cos Φ | 0.8 | ||||
Rated Speed | rpm | 1500 | ||||
Phase | 3 | |||||
Rated Frequency | Hz | 50 | ||||
Fuel tank | hours | 8~10 | ||||
Packing Dimension (packing) | mm | 1700*900*1130 | 1700*900*1130 | 1800*900*1130 | 1800*900*1130 | |
G/Weight (packing) | kg | 640 | 690 | 740 | 760 | |
Diesel Engine | Engine Model | Y380D/10KW | YD480D/14KW | YD485D/15KW | YND485G/17KW | |
Rated Power | KW | 10 | 14 | 15 | 17 | |
No. of Cylinder | 3 | 4 | 4 | 4 | ||
Configuration | Vertical,in-line,water-cooled,four stroke,direct injection | |||||
Bore*Stroke | mm | 80*90 | 80*90 | 85*90 | 85*95 | |
Compression Ratio | 18 | |||||
Displacement | L | 1.357 | 1.809 | 2.043 | 2.156 | |
Fuel Consumption | g/kw.h | 247 | 245 | 245 | 245 | |
Firing order | 1~3~2 | 1~3~4~2 | ||||
Starting System | electric start with batter | |||||
Lubrication method | L | Splash,pressure | ||||
Net weight | kg | 165 | 195 | 200 | 200 | |
Dim.L*W*H | mm | 587*494*610 | 687*494*610 | 687*494*623 | 687*494*623 | |
Steady regulation | % | less than 4 | ||||
Exhaust Temperature | oC | less than 550 | ||||
Alternator | Alternator Model | YHG-8KW | YHG-10KW | YHG12KW | YHG-15KW | |
Manufacturer | YIHUA | |||||
Rated Power | kw | 8 | 10 | 12 | 15 | |
Kva | 10 | 12.5 | 15 | 18.75 | ||
Bearing | single bearing | |||||
Excitation Type | brushless | |||||
Cooling | Fan Cooling | |||||
Material | 100% Copper wire,Cold rolled steel stator and rotor,steel frame,cast iron cover,import ball bearings | |||||
AVR | SX460 | |||||
IP | 23 | |||||
Protective Grade | H | |||||
CONTROL SYSTEM | MANUAL CONTROL PANEL WITH SMARTGEN BRAND PROTECTION MODLE.HGM180 | |||||

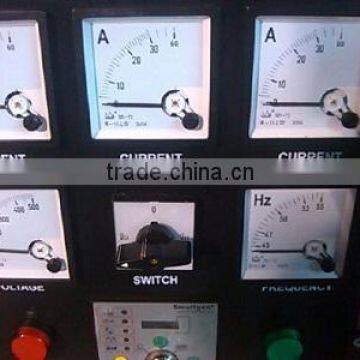

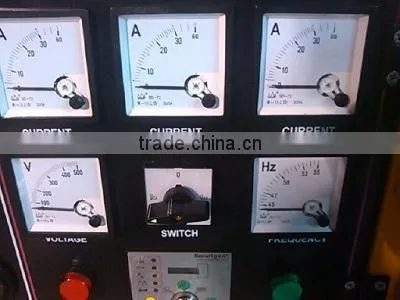

1.water temp meter 2.oil pressure meter 3.ampere meter 4.fuel meter 5.current meter 6.current 3 phase switch 7.voltage meter 8.voltage 3 phase switch 9.frequency meter 10Smartgen HGM180HC protection. | ||||||
1. If you want pivot, please give us the following details"
- your country and name
- land area (in ha or m2 )
- crop and water application (mm/day or m3 /h or LPS)
- working degree (0- 360O )
- if you need any extras (options) for pivot such as Diesel generator, end gun with booster pump, corner control system for end gun, Fertilizer unit
2. Small parts are not sold seperately, except for large amount.
GLOBAL MANUFACTURER OF IRRIGATION EQUIPMENT SINCE 2002
Rainfine is an international irrigation company based in Dalian, China that specializes in center pivot and lateral move systems.
We are a leading manufacturer across the globe, supplying irrigation parts and equipment to major manufacturers in the United States, France, Russia, Australia, Sudan, Kazakhstan, Nigeria and Saudi Arabia.
Our irrigation manufacturing meets the following standards:
International: ISO15873 ISO12374 ISOTR15155
French: NFEN909
British: BSEN12325-2
American for galvanizing: A123
ISO9001-2008 QC standard
-land surveying and planning
-Pipeline network calculation
-Pump station calculation and design
-Business proposals and budget plans
-Pumps, valves and irrigation machines supply
-Installation and commissioning
-1 year concerning electric equipment
-10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
-20 years concerning the galvanized equipment against corrosion
-3 years for tires and rims
Company Profile
Rainfine(Dalian) Irrigation Co., Ltd is a leading manufacturer in China for irrigation equipments. We started the manufacturing of center pivot irrigation machine since 2002. For more than 10 years experience in irrigation business,We have exported our products to Australia, Agentina, Chille, Brazil,Zambia, Ethiopia, Sudan, Saidi Arabic,Libye, Kazakhstan. We will start to sell our products to Russia, Ukrain, Mongolia,Germany, Iraq from this year.
The main products we produce are center pivot system (fixed and towable), lateral move system and hose reel irrigation machine.
The factory has qualified ISO9001:2008 certificate.
The services we provide for our customers are:
1. Water supply design system: pump station and pipeing design, pipe network and water hammer protection calculation, water flow and charge head calculation, diesel generator design.
2. Supply irrigation equipments as well as the related equipments for all projects: shipment, installation, training, commissioning.
3. Farming plan: water requirement chart for different crops.
If you have land and water resources, just leave all the troubles to us.We can work from A to Z and help you to make money from your land.
For more details of our company and the products, please refer to our website.
