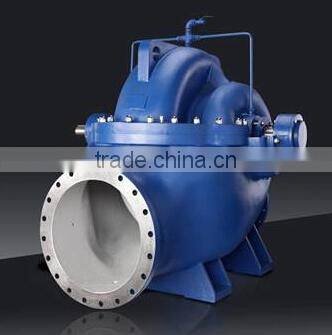

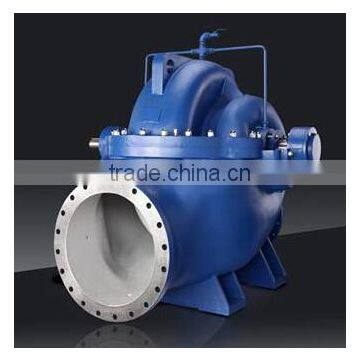

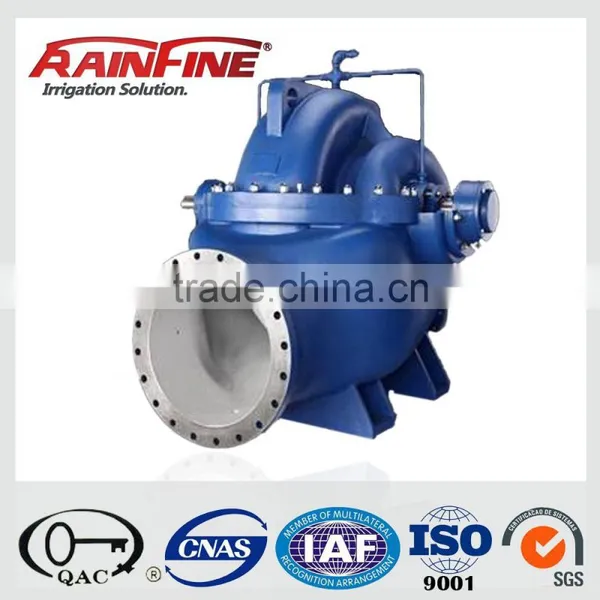

Description of Single Stage Double Suction Axially Split Casing Centrifugal Pump :
Standard Material:
Casting: Cast iron / Stainless steel / Cast steel / Ductile cast iron / Duplex S.S
Shaft: C-steel / Cr -steel / Stainless steel
Impeller: Cast iron / Bronze or stainless steel
Water ring: Cast iron / Brass / Stainless steel
The casting is axially split, which permits removal of the complete rotor whish moving either piping or motor. Pumps generating high heads have double volute to reduce radial forces. Replaceable wear ring protect the casting at the impeller running clearances. Flange drilled to ISO, DIN, BS or ANSI.
The close double suction impeller gives practically zero axial forces. Each impeller is statically and dynamically balanced according to ISO 1940.
The NSC series pumps have a reduced number of parts and extensive interchangeability, which leads to minimum levels of inventory for customers and faster parts delivery.
Vertical installation is a standard option with the same upper and lower casing parts. It is mounted for a space-saving configuration or when apace is at a premium.
Soft packing or mechanical seal, grease or oil lubricated bearing is optional. Oil lubrication is with constant level oiler.
1. If you want pivot, please give us the following details"
- your country and name
- land area (in ha or m2 )
- crop and water application (mm/day or m3 /h or LPS)
- working degree (0- 360O )
- if you need any extras (options) for pivot such as Diesel generator, end gun with booster pump, corner control system for end gun, Fertilizer unit
2. Small parts are not sold seperately, except for large amount.
GLOBAL MANUFACTURER OF IRRIGATION EQUIPMENT SINCE 2002
Rainfine is an international irrigation company based in Dalian, China that specializes in center pivot and lateral move systems.
We are a leading manufacturer across the globe, supplying irrigation parts and equipment to major manufacturers in the United States, France, Russia, Australia, Sudan, Kazakhstan, Nigeria and Saudi Arabia.
Our irrigation manufacturing meets the following standards:
International: ISO15873 ISO12374 ISOTR15155
French: NFEN909
British: BSEN12325-2
American for galvanizing: A123
ISO9001-2008 QC standard
-land surveying and planning
-Pipeline network calculation
-Pump station calculation and design
-Business proposals and budget plans
-Pumps, valves and irrigation machines supply
-Installation and commissioning
-1 year concerning electric equipment
-10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
-20 years concerning the galvanized equipment against corrosion
-3 years for tires and rims
