High Flow Electric Water Pump 12v/24v for DC,115v~220v for AC

packing with strong seaworthy carton.

Specifications

High Flow Electric Water Pump
1.water transfering & pumping
2.high flow, low pressure,automatic
3.Rohs/CE/TUV/ISO9001:2000

 High Flow Electric Water Pump 12v/24v for DC,115v~220v for AC





1)APPLICATION:



This pump may be used for general water transfer, sprayer pumps, small rain system, ship,steamship,boat,or other industry usage (Liquid with weak acid & alkaline is ok)



2)SPECIAL FUNTION:



• Quiet Performance with long life.
• Runs dry without damage
• Self Priming
• Built-in Check Valve(EPDM)
•  Easy Installation
•  Small size with high flow:17l/min.



3) PUMP:

• Type: 2 Chamber Diaphragm
• Ports: 9.5mm(3/8”) Hose barb
• Liquid: 136 °F [60 °C] Max
• Self-priming: 6 feet [within 2M]
• Run Dry: Yes

4)ELECTRICAL:

• Motor:              12/24VDC Permanent Magnet, Intermittent Duty
• Protection:       Thermal Overload, Automatic Restart
• Leads:                16 AWG, Red +,  Black -



5)MATERIALS:

• Housing: PA66
• Check valves: EPDM
• Diaphragm: Santoprene /vition
• Check valve spring Stainless steel
• APPROVALS:CE & Rohs

6)package:

 Carton Size: 64*39*22cm

(10 pcs per carton)



7)Specification:



1.Maximum torque and operating efficiency/higher operating pressure and/or lower amperage than competitive pumps

2.Long life, no leaks, strong corrosion resistant

3.12V/24VDC and 115/220VAC motors standard (consult factory for other voltages)

4.Quality components for extreme performance

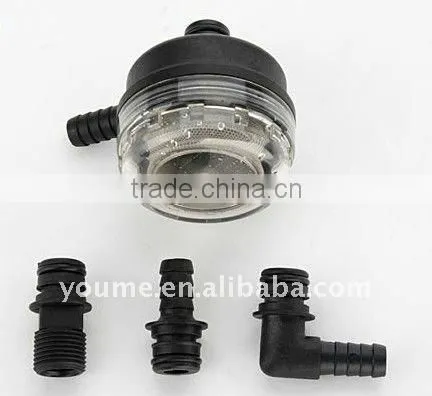

5.Numerous fitting options for greater mounting flexibility

6.Voltage:12V/24V DC Diaphragm Pump,115V/230V AC Diaphragm pump

7. Expecially suitable for marine and recreation vehicle, such as boat and ship



8)Performance data:



TECHNICAL DATA OF DC VOLTAGE
Model	Volt	Flow(L/Min)	Pressure(PSI)	Amp Draw(A)
FL-30	12	10	17	2.2
FL-31	24	10	17	1.5
FL-35	12	12.5	35	7
FL-34	24	12.5	35	4
FL-40	12	17	40	9.2
FL-44	24	17	40	5.6
TECHNICAL DATA OF AC VOLTAGE
Model	Volt	FLow(L/Min)	Pressure(PSI)	Amp Draw(A)
FL-33	115	12.5	35	0.5
FL-32	220	12.5	35	0.4
FL-41	115	17	40	0.5
FL-43	220	17	40	0.8
Inlets size:	3/8''hose barb, thread
Outlets size:	3/8''hose barb, thread
dimension/pc FL-3:	33.5x12.5x10.5cm
Net weight/pc FL-3:	1.9kg
Gross weight/pc FL-3:	2.3kg
Carton dimension(10pcs FL-3 Series):	63x29x22.5cm
dimension/pc FL-4:	37x12.5x10.5cm
Net weight/pc Shape FL-4:	2.45kg
Gross weight/pc FL-4:	2.9kg
Carton dimension(10pcs FL-4 Series):	64x39x22cm

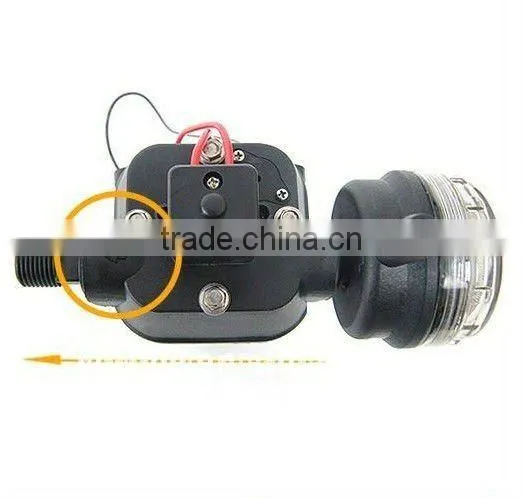

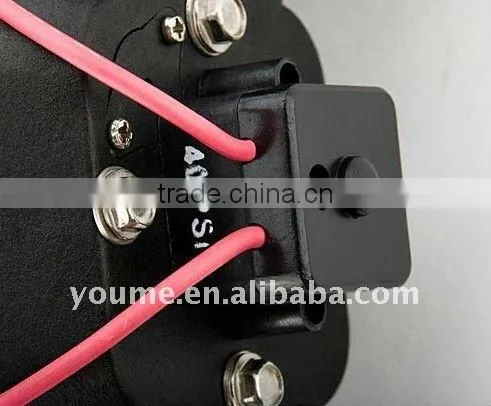

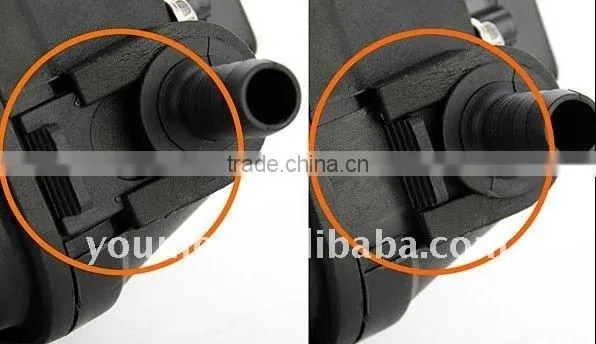

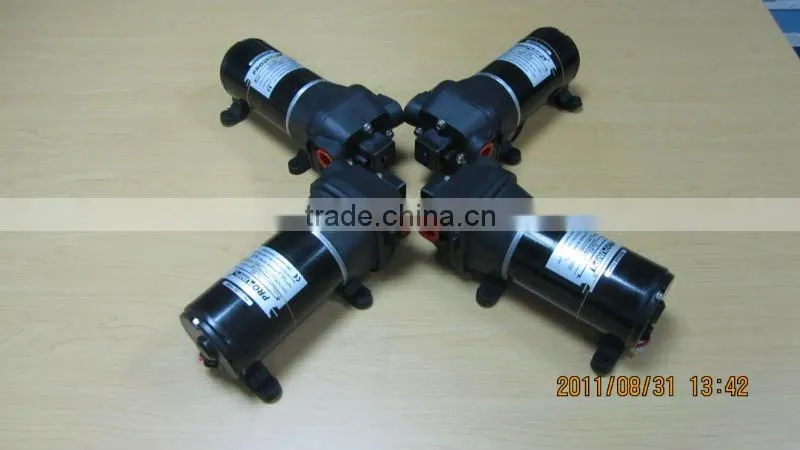

9)photo details:

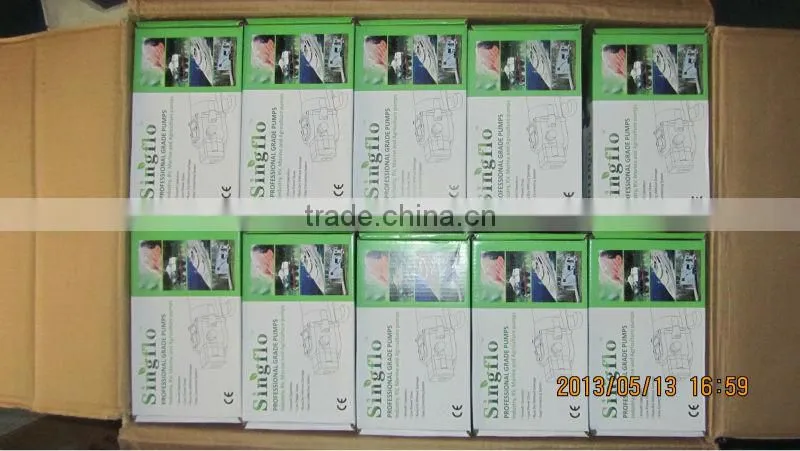

1 psc one color box

10 psc /carton
