12v high flow electric water pump
- 30000 Piece / Pieces per Month
- Fuzhou port /Xiamen port
- T/T Credit Card PayPal
Product Details
Place of Origin: | Fujian, China | Brand Name: | Singflo | Model Number: | FLSERIES |
Theory: | Reciprocating Pump | Structure: | Diaphragm Pump | Usage: | Water |
Power: | Other, power | Standard or Nonstandard: | Standard | Fuel: | Other, electric power |
Pressure: | High Pressure | Application: | Other, maritine |
Packaging Details
with strong seaworthy carton ,inner with poly foam
Product Description
Specifications
12v high flow electric water pump1.RV high flow boat pump
2.Marine water pump
3.Long life, no leaks
4.booster pump
12v high flow automobile water pump,12v high flow water pump /12v high flow electric water pump
Application:
Multi-fixture for RV & Marine fresh water installations. Other uses may include 100-240V AC pressurized water systems in cabins. This pump may be used for general fresh water, sea water & salt water transfer. (Liquid with weak acid & alkaline is ok)
Special fuction:
• Quiet Performance
• Runs dry without damage
• Self Priming
• Built-in Check viton/ EPDM Valve
• Easy Installation
• Thermally Protected
Type: 4 Chamber Diaphragm
Ports: 1/2”-14 NPSM-Female
Liquid: 136 °F [60 °C] Max
Self-priming: 6 feet [within 2M]
Inlet PSI: 17 PSI [1.17Bar] Max
Run Dry: Yes
Motor: Permanent Magnet, Intermittent
Duty Protection: Thermal Overload, Automatic Restart
Leads: With 180cm wire & plug
Approvals: CE & Rohs
Warranty: 1 Year Limited Warranty. Contact pump agents for details
TECHNICAL DATA OF DC VOLTAGE | ||||
Model | Volt | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
FL-30 | 12 | 10 | 17 | 2.2 |
FL-31 | 24 | 10 | 17 | 1.5 |
FL-35 | 12 | 12.5 | 35 | 7 |
FL-34 | 24 | 12.5 | 35 | 4 |
FL-40 | 12 | 17 | 40 | 9.2 |
FL-44 | 24 | 17 | 40 | 5.6 |
TECHNICAL DATA OF AC VOLTAGE | ||||
Model | Volt | FLow(L/Min) | Pressure(PSI) | Amp Draw(A) |
FL-33 | 115 | 12.5 | 35 | 0.5 |
FL-32 | 220 | 12.5 | 35 | 0.4 |
FL-41 | 115 | 17 | 40 | 0.5 |
FL-43 | 220 | 17 | 40 | 0.8 |
Inlets size: | 3/8''hose barb, thread | |||
Outlets size: | 3/8''hose barb, thread | |||
dimension/pc FL-3: | 33.5x12.5x10.5cm | |||
Net weight/pc FL-3: | 1.9kg | |||
Gross weight/pc FL-3: | 2.3kg | |||
Carton dimension(10pcs FL-3 Series): | 63x29x22.5cm | |||
dimension/pc FL-4: | 37x12.5x10.5cm | |||
Net weight/pc Shape FL-4: | 2.45kg | |||
Gross weight/pc FL-4: | 2.9kg | |||
Carton dimension(10pcs FL-4 Series): | 64x39x22cm |
Any interested,Pls feel free to contact us.
Sample is warm welcome.

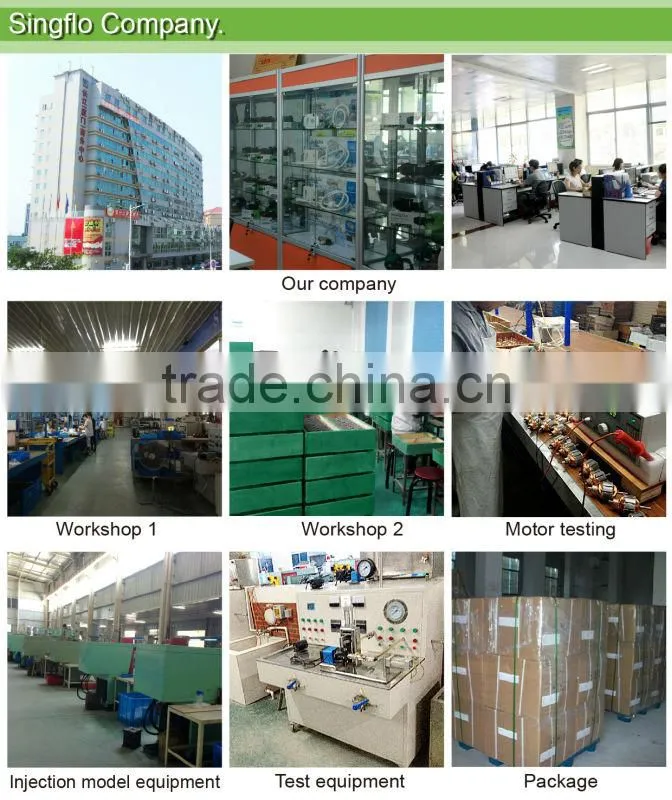

Company Profile
YouMe Electric Co., Ltd is a leading company that mainly manufactures and trades precision pumps and flow control components. Since 2010, we have provided innovative, high-quality products with reasonable price for a wide range of fluid control applications.
Our product engineers work closely with customers to meet their precise performance requirements:
-- We have devoted on adblue /def dispenser system since 2008 cooperating with adblue liquid factories & distributers in Europe & Asia.
-- Each product has been tested on functionality and performance, and the flow meters are calibrated piece by piece after complete assembly in workshop before delivery.
-- Our new plus-bottled water dispenser design was customized with convenience - the pump automatically shuts off when the water source is depleted, and automatically restart when water is restored. This assures damage free to the appliance when running dry.
Our products are widely used in a varity of industries including: Adblue / DEF dispenser, Water Treatment and Purification, Biotechnology (Lab water), Medical, Floor Care, Automotive, Road Construction & Maintenance, Beverage/Foodservice, RV/Marine, Agriculture, and Alternative Energy (Solar & Fuel Cell). We directly base on a factory with OEM in over forty countries, and globally deliver our products on time through our distribution network.
