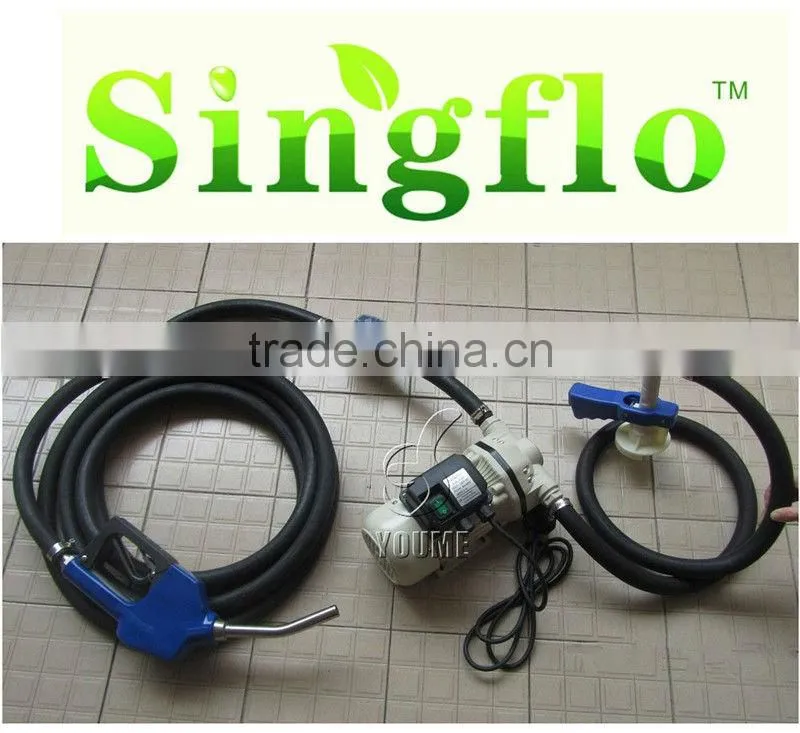

Ad blue Pump For Urea Solution
- 10000 Piece / Pieces per Month
- XIAMEN NINGBO FUZHOU
- Credit Card PayPal
Product Details
| Place of Origin: | Fujian, China | Brand Name: | YOUME | Model Number: | HV |
| Theory: | Reciprocating Pump | Structure: | Diaphragm Pump | Usage: | Other, AdBlue,area |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electric |
| Pressure: | High Pressure | Application: | Other, AdBlue pumps-urea solution |
Packaging Details
packing with strong seaworthy carton
Product Description
Specifications
Ad blue Pump For Urea Solution1)Continuous working with low temperature
2)Max flow:30~50LPM
3)Pressure max: 40PSI
Ad blue Pump For Urea Solution
Ad Blue pumps for urea solution SPECIFICATION
PUMP Design: 5 chamber diaphragm
Motor Design: Permanent magnet DC/AC
Voltages: 12, 24VDC,115/230VAC
Pump Body: Aluminium
Diaphragm: Viton
Check valves: Viton
Max. Flow Rate: 30~50LPM
Max. Pressure: 40PSI (2.75BAR)
Liquid Temp: 40°F (5°C)MIN;
140°F (60°C)MAX
Duty cycle: Continuous work with self-ventilated
Weight: 5.5KG for DC pump 6.5KG for AC pump
Certifications: CE
Port Size inlet/ outlet: 3/4” 1''
Ad blue Pump For Urea SolutionTechonical data:
Model | Volts | Open Flow | Pressure | Amps | Speed | N.W / G.W |
DC /AC | LPM | Shut Off | (A) | (RPM) | (KGS) | |
HV-30A | 12 VDC | 30-35 | 40 psi (2.8 bar) | 15 | 2800 | 5 /5.5 |
HV-30B | 24 VDC | 30-35 | 40 psi (2.8 bar) | 7.5 | 2800 | 5/5.5 |
HV-30S | 115 VAC | 30 | 40 psi (2.8bar) | 4 | 3400 | 6 / 6.5 |
HV-30M | 230 VAC | 30 | 40 psi (2.8bar) | 1.5 | 2900 | 6 / 6.5 |
HV-40S | 115 VAC | 40 | 40 psi (2.8bar) | 4.2 | 3400 | 6 / 6.5 |
HV-40M | 230 VAC | 40 | 40 psi (2.8bar) | 1.8 | 2900 | 6 / 6.5 |
HV-50S | 115 VAC | 50 | 40 psi (2.8bar) | 4.5 | 3400 | 6 / 6.5 |
HV-50M | 230 VAC | 50 | 40 psi(2.8bar) | 2 | 2900 | 6 / 6.5 |
- Permanent magnet and continuous duty
- Built-in pressure switch automatically starts and stops
- Pump when faucets is opened
- Self-priming 3m so pump can be located above water tank
- Runs dry for extended periods of time without damage
- Hold excellent motor keep stable temperature of pump body
DC MOUNTING
The HV Series pumps are self-priming and may be located above or below the water supply in a dry location. To vertically mount these units, it is best to do so with the motor on top. This will prevent water dripping on the motor in the event of a leak. Place pump on a solid surface and secure with four mounting screws; be careful not to compress the rubber grommets, which act as vibration dampers.
AC assembled
Company Profile
YouMe Electric Co., Ltd is a leading company that mainly manufactures and trades precision pumps and flow control components. Since 2010, we have provided innovative, high-quality products with reasonable price for a wide range of fluid control applications.
Our product engineers work closely with customers to meet their precise performance requirements:
-- We have devoted on adblue /def dispenser system since 2008 cooperating with adblue liquid factories & distributers in Europe & Asia.
-- Each product has been tested on functionality and performance, and the flow meters are calibrated piece by piece after complete assembly in workshop before delivery.
-- Our new plus-bottled water dispenser design was customized with convenience - the pump automatically shuts off when the water source is depleted, and automatically restart when water is restored. This assures damage free to the appliance when running dry.
Our products are widely used in a varity of industries including: Adblue / DEF dispenser, Water Treatment and Purification, Biotechnology (Lab water), Medical, Floor Care, Automotive, Road Construction & Maintenance, Beverage/Foodservice, RV/Marine, Agriculture, and Alternative Energy (Solar & Fuel Cell). We directly base on a factory with OEM in over forty countries, and globally deliver our products on time through our distribution network.
