Help CenterSingflo DC Pump/Pumps for AdBlue
Related Products
Specifications
Pumps for AdBlueContinuous working with low temperature
Max flow 13GPM,40psi

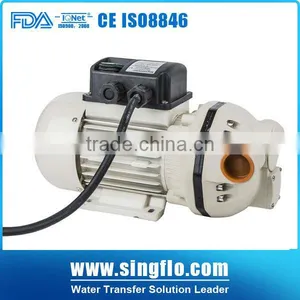

Singflo DC pump/Pumps for AdBlue
Function:
* Permanent magnet and continuous duty
* Built-in pressure switch automatically starts and stops pump when faucets is opened and closed
* Self-priming so pump can be located above water tank
* Runs dry for extended periods of time without damage
* Hold excellent motor keep stable temperature of pump
| Self Priming | More than 3 meters |
| Port Size: | Hose tail connection 3/4'' |
| Pressure Max. | 40PSI (2.8Bar) |
| Diaphragm Material | Viton |
| Check valve Made | Viton |
| Voltage: | 12V,24V DC, 115V,220V,230V AC |
| Power: | ON/OFF Switch |
| Body Material(DC) | Polypropylene |
| Body Material (AC) | Aluminium |
| Liquid of application: | Water,oil, Urea, Adblue |
Technical Data:
| Model | Volts | Open Flow | Pressure | Amps | Power | Speed | N.W / G.W |
| dc / ac | gpm (lpm) | Shut Off | (A) | (W) | (rpm) | (kg) | |
| HV-30A | 12 Vdc | 30-35 | 40 psi (2.8 bar) | 15 | 180 | 2800 | 5/5.5 |
| HV-30B | 24 Vdc | 30-35 | 40 psi (2.8 bar) | 7.5 | 180 | 2800 | 5/5.5 |
| HV-30S | 115 Vac | 30 | 25 psi (1.7 bar) | 4 | 460 | 3400 | 6 / 6.5 |
| HV-30M | 230 Vac | 30 | 25 psi (1.7 bar) | 1.5 | 345 | 2900 | 6/6.5 |
| HV-40S | 115 Vac | 40 | 25 psi (1.7 bar) | 4.2 | 483 | 3400 | 6 / 6.5 |
| HV-40M | 230 Vac | 40 | 25 psi (1.7 bar) | 1.8 | 414 | 2900 | 6/6.5 |
| HV-50S | 115 Vac | 50 | 25 psi (1.7 bar) | 4.5 | 518 | 3400 | 6 / 6.5 |
| HV-50M | 230 Vac | 50 | 25 psi (1.7 bar) | 2 | 460 | 2900 | 6/6.5 |
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended.
Q: What's your payment way?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
