CE&ISO9001 approved corn oil factory manufacuring

CE&ISO9001 approved corn oil factory manufacuring

1.Our company has been set up since 1982, It has been awarded the "The quality-star enterprise of China"

2.Our factoru is also a group enterprise integrating scientific research, manufacturing, sales as one.

3.We have cooperated with Research Institute of Machine Design Company and Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein etraction, phospholipid etraction, etc. R & D and application of new technologies.

4.We have more than 200 employees ,among them ,there are 20 engineering technical personnel who hold intermediate and senior professional titles, and two highly reputed professors.

5.We have eported our machines to Moscow, Romania, Pakistan, India, Bangladesh, Thailand, Indonesia, Nigeria, Malaysia, Tunisia, and so on. Our new customers can visit our demo machines in different countries.

What can we supply to our customers?

1.Oil seed press:6YY Korea hydraulic sesame oil press, 6YL screw oil press and 6YT-5T oil press unit.

2.Small top-grade cooking oil press unit, 1t-5t treated daily

3.Oil seed pretreatment: prepress unit, 10t-2000t treated daily
4.Oil seed etraction: 5t-1000t cake treated daily, adopting solvent(heane) etraction.

5.Top-grade cooking oil and salad oil press unit, 5t-500t treated daily
6.First class oil refining unit: 5t-1000t crude oil treated daily

Customer visiting:

Corn oil machine flowchart:

1.Pretreatment section flowchart:

Metering Cleaning Magnetic separationDestonerCrushing Softening Flaking Etrusiongo to etraction section

2.Etraction section

Oil heating Etractor Solvent spraying Micella Evaporation section Cooling system

Cake Desolventization Cooling system Crude oil

Meal Meal packing

Corn oil machine instruction:

a. Cleaning device:remove the raw material peanut in various impurities, such as: iron, stones, clump, such as the plant leaf, clean up till impurity content does not eceed 0.2%.

b.Crushing machine: peanut is crushed into 6-8 pieces. In order to meet the requirements of crushing, the peanut is suitable for crushing with the moisture of 7% to 12%.

c. Softening process:the purpose of softening is to adjust the moisture and temperature of oil, and make it soft.

d.Flaking process: rolling raw material into flakes, and the purpose is to increae surface area, destroy the peanut cell tissue, shorten the way of oil out from cake.

e:Etrusion: use steam and pressure to make flaks into porous pellets.

Extraction process:

1. Solvent pumps: continuously spray solvent to the rotary-type etractor

2. Roary etractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be diss-olved in solvent(form miscella). After processing, you can get wet meal and miscella (mied oil).

3. DTDC: usd to separate the solvent from the wet meal.

4. Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , then add saline water to it. The phospholipid in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.

5. Miscella tank 2nd: the purified miscella will be pumped into it.

6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.

7. Condensers: to cooling the solvent gas separated from the wet meal and miscella for recycling.

Corn oil machine advantage:

1.Our products have the high quality and high performance.we use the stainless steel instead of the carbon steel.

2.we buy directly from the manufacturer for guaranteeing the quality.

3.our welding worker should get the certificates.and our electric machines all imported from Germany.

And more other advantages we will talk in our specific condition.

Corn oil machine consumption in operation:

Picture show of Corn oil machine:

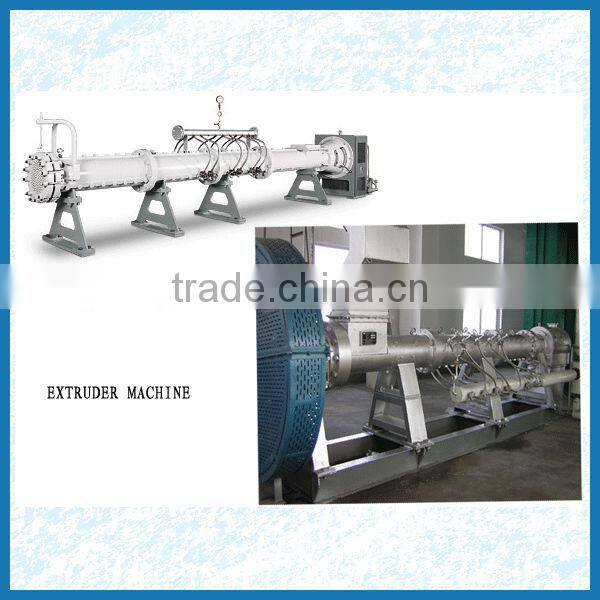

Etrusion:

Towline etractor:

Rotary etractor:

Oil filling line:
