Coconut cake oil solvent extraction equipment
Raw material:

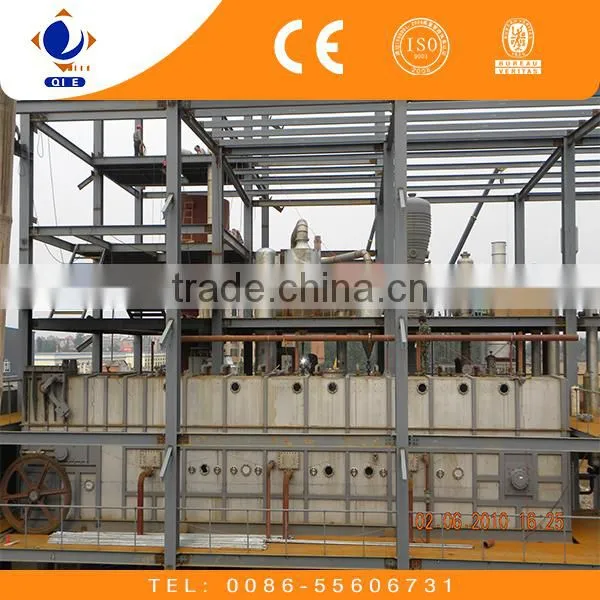

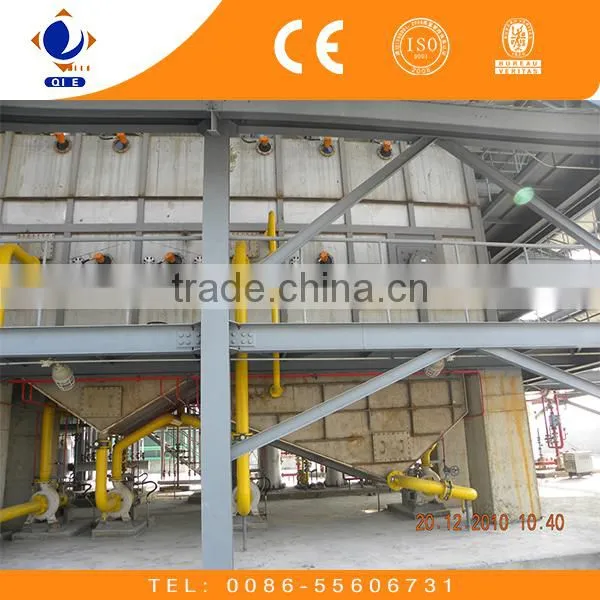

Towline Extractor Advantages:
1) The material is divided into several independent units on the material bed, which can effectively prevent miscella at all levels from fleeing hither and thither on the material layer and ensure the concentration gradient between several sprays.
2) Immersion area appears in each lattice, which can help achieve better immersion effect.
3) The chain bo is supported by track and can prolong the service life of screen deck by not touching it.
4) The towline etractor is driven by world leading double-shaft hydraulic motor, with balance force, reliable operation and less maintenance cost.
5) Specialty suitable for the etraction of high oil and high power materials, and better immersion effect can be epected for ordinary oil plants.

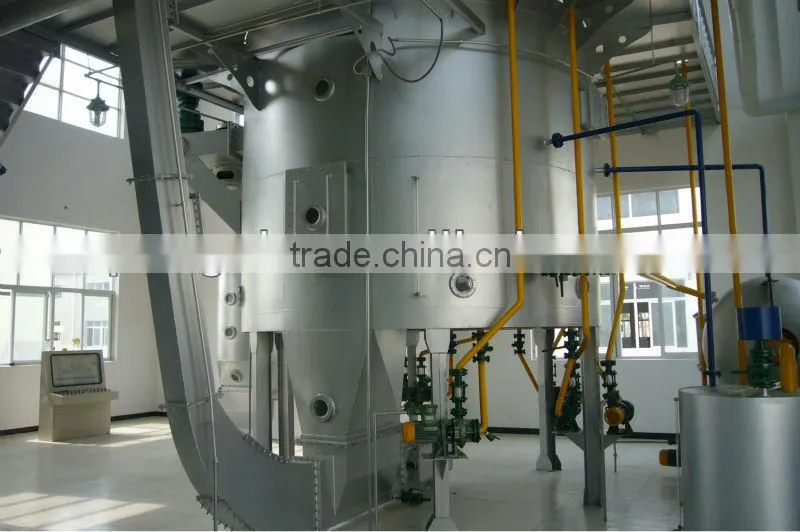

Wet Meal Desolventizing Process
Desolventizer toaster advantages:
a) Passivate and damage the anti-nutritional components such as the urea enzyme and trypsin in the meal, and improve meal value in use.
b) Control the protein denaturation degree in the meal , and improve the NSI inde effectively.
c) It can better regulate the color, flavor and taste of the meal.
d) It can better reduce residual solvent in the meal and regulate the meal moisture, so as to guarantee the minimum solvent consumption and safe use of the meal.

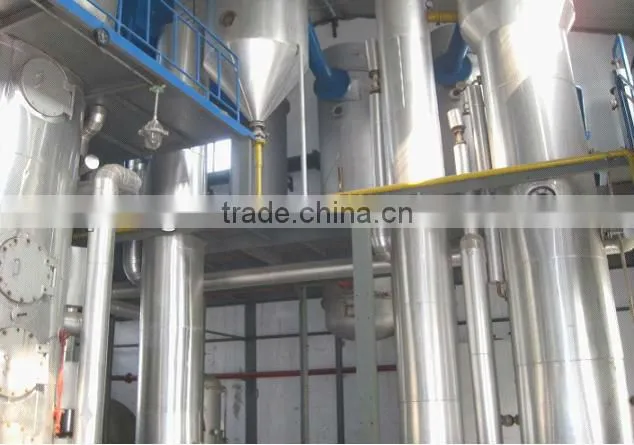

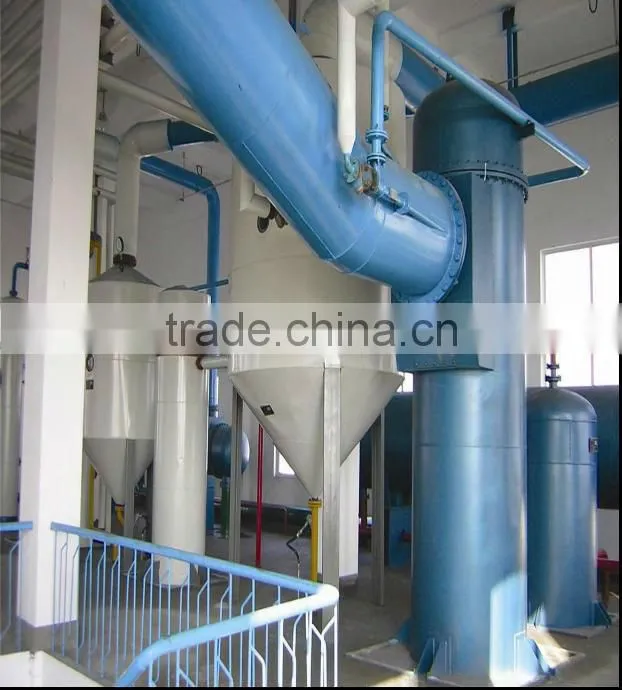

Negative pressure evaporation process
The liquid from the etractor is the miscella containing grease and oil, which can be separated out according their different vaporization temperatures. Our company mainly uses vacuum evaporation technology, and it can reduce solvent leakage and consumption. The separated solvent vapour is cooled and recycled back to the etractor for reuse, which can improve the solvent efficiency.
Vacuum Evaporation Advantages:
a) Vacuum evaporation features high efficiency, thorough de-solvation and low solvent consumption in crude oil.
b) Use the second steam of desolventizer toaster and remaining steam from steam jet pump as the heat source of the first steam, which can save energy, reduce the condenser configuration area and save investment.
c) Due to the low temperature of the steam, the crude oil features light color, good quality and low residual solvent.

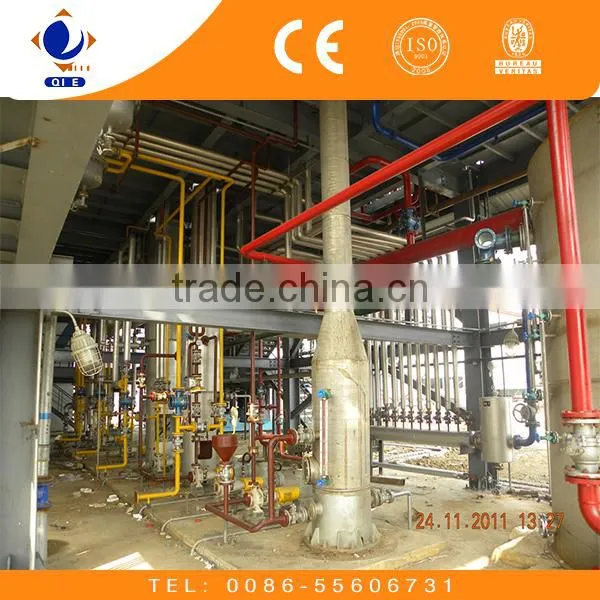

Solvent condensation & recovery process
Solvent condensation system combines with evaporation system closely, and evaporative condenser and steam stripping condenser all work under negative pressure. Non-condensable gas enters the energy saver from the shell of the first evaporator. In energy saver, noncondensable gas echanges heat with condensate from the evaporative condenser. Finally, the condensate temperature discharged from energy saver is increased, and the solvent separated from water goes to solvent holding tank. The high temperature makes it unnecessary to be reheated for the recycling, so as to save energy. Noncondensable gas from energy saver enters desolventizing condenser, in which a great deal of gas is condensed, and the tail gas is discharged into the final condenser. The solvent gas from the etractor enters etraction condenser, and the noncondensable tail gas enters the final condenser. For the free gas in final condenser, diversion bo, holding tank, underground solvent library and miscella tank, cool them with low temperatured cold water to recycle most of solvent gas. The tail gas with little solvent goes to paraffin recovery process.
Certificate:
1. Q: Which kind of materials can be processed?
A: All kinds of oil seeds. For eample, rice bran, corn germ, cottonseeds, peanut, sunflower, soybean, rapeseed, etc.
2. Q: What's the capacity?
A: 5-2000 tons per day.
3. Q: The materials of our machine?
A: The stainless steel and carbon steel.
4. Q: Can you install the machine in local place?
A: We will send our engineers to local place to help installing the machine.
5. Q: How to operate the machines?
A: Our engineers will train the worker how to operate it after running.
