Edible oil processing plant equipment, Grade 1 salad oil processing machine,cooking oil production machinery
Customer visiting:
Edible oil processing plant equipment,Grade 1 salad oil processing machine,cooking oil production machinery
Application scope:
Cooking oil processing plant equipment, first one salad oil processing flowchart:
extraction section
Soybean cake extractor Solvent spraying Micella Evaporation section Cooling system
Cake Desolventization Cooling system Crude oil
Meal Meal packing
cooking oil processing plant equipment, first one salad oil processing introduction:
extraction process
1. Solvent pumps: continuously spray solvent to the rotary-type extractor
2. Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be diss-olved in solvent(form miscella). After processing, you can get wet meal and miscella (mied oil).
3. DTDC: usd to separate the solvent from the wet meal.
4. Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , then add saline water to it. The phospholipid in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
5. Miscella tank 2nd: the purified miscella will be pumped into it.
6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
7. Condensers: to cooling the solvent gas separated from the wet meal and miscella for recycling.
Cooking oil processing plant equipment,first one salad oil processing advantage:
1.Our products have the high quality and high performance.we use the stainless steel instead of the carbon steel.
2.we buy directly from the manufacturer for guaranteeing the quality.
3.our welding worker should get the certificates.and our electric machines all imported from Germany.
And more other advantages we will talk in our specific condition.
Soybean processing oil plant consumption in operation:
Residual oil in meal |
1% (soybean cake ) |
Solvent consumption |
3Kg/T(heane) |
Crude oil moisture and volatile matter |
0.30% |
Power consumption |
15KWh/T |
Steam consumption |
280Kg/T (0.8MPa) |
Finished meal moisture |
10-13% (adjustable) |
Residual solvent in finished meal |
300PPM (qualified detonated eperiment |

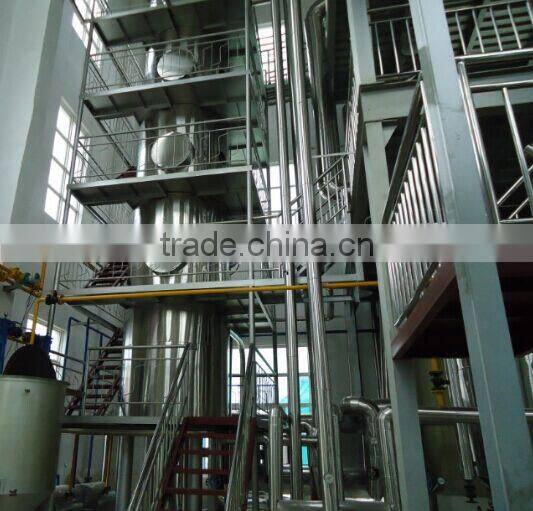

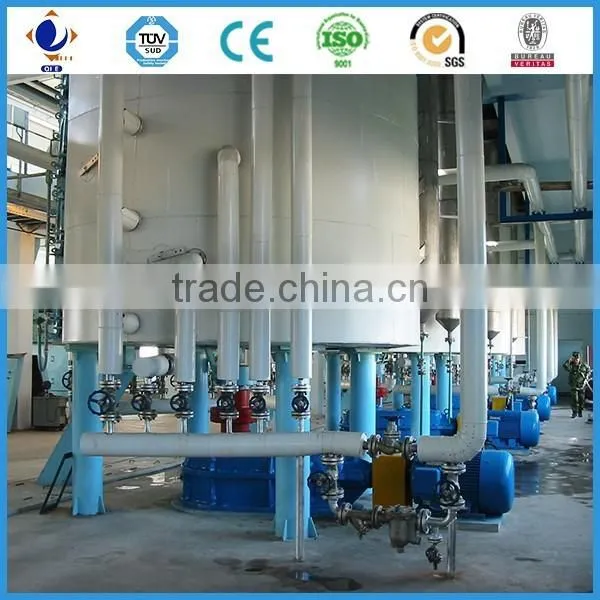

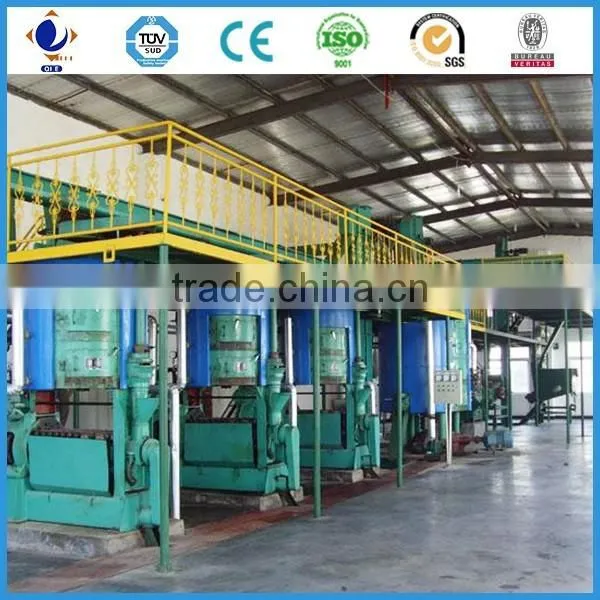

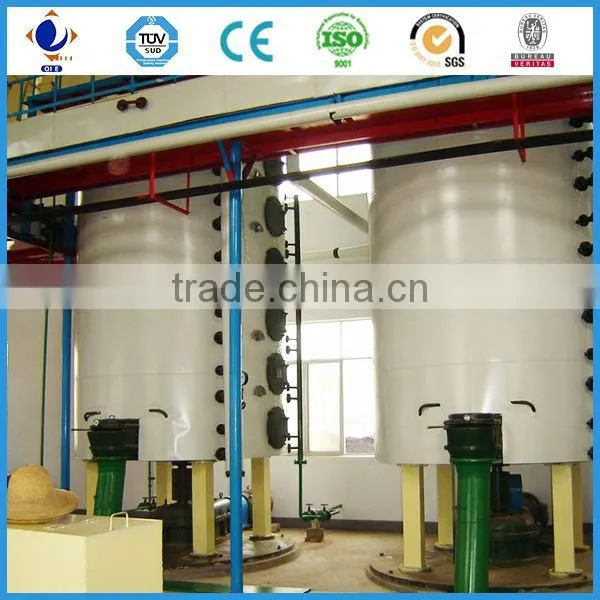

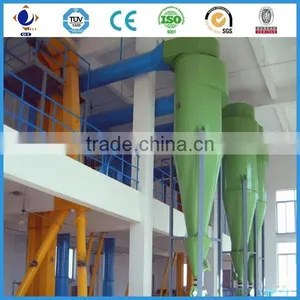

Picture show of edible oil processing plant equipment,Grade 1 salad oil processing machine,cooking oil production machinery :

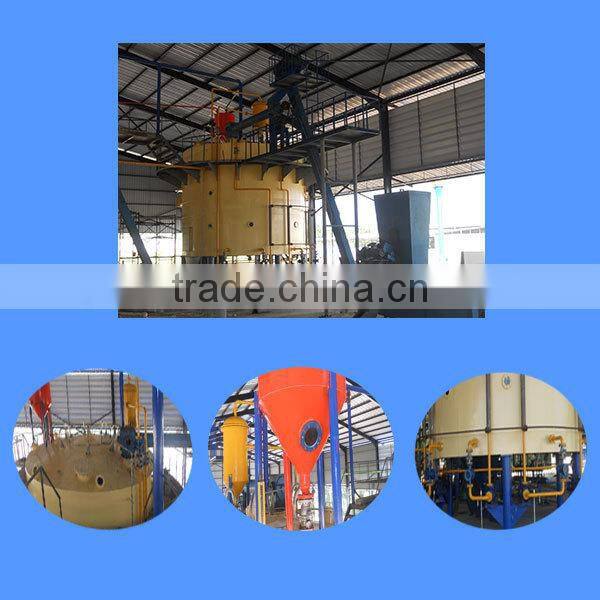

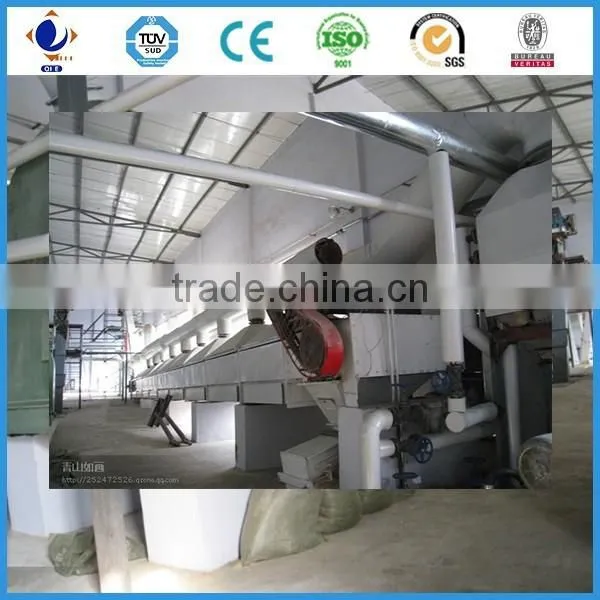

Rotary etractor of cooking oil processing machinery plant equipment,first one salad oil processing :

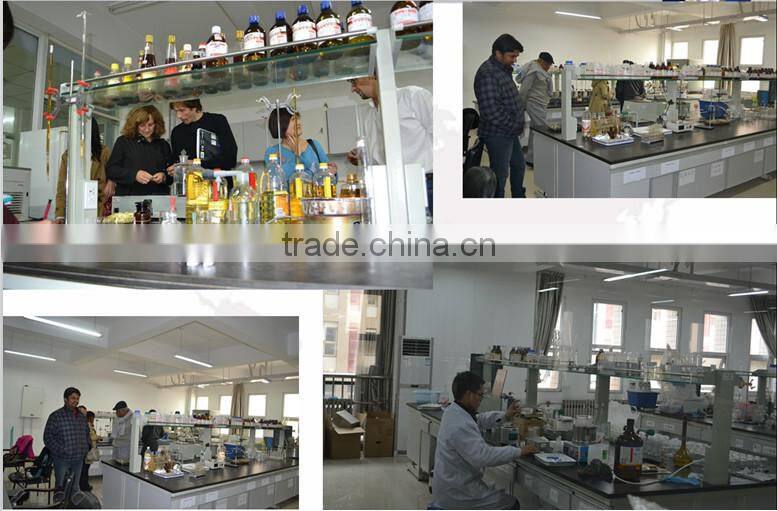

Our Lab:
Quality and Service Commitment | ||
|
Our company always put the interests of customers and product quality to the first place, and always adhere to the"no best, only better" as our purpose. We will be commitment to provide high quality products with perfect site services and after-sales service. Now the specific commitments are as follows: | ||
1. |
Ensure to timely provide complete sets of equipment and accessories. |
|
2. |
Ensure that one-time installation debugging acceptance. |
|
3. |
To provide high quality material with preferential price. |
|
4. |
Priority to provide customer our new craftworks and products. |
|
5. |
Free training technological operator to ensure the trained staff can operation independently. |
|
6. |
In the installation process,we will appoint a installation supervision staff on the spot. |
|
7. |
we will offer an eperienced project manager, organize a good installation team for the work of field installation debugging. |
|
8. |
After the equipment field assembly and installation, we will be also responsible for the single equipment debugging, online debugging and Feeding trial operation, to ensure that equipments can normal operate in full load conditions. We will provide all kinds of information and records according to the requirements of the bid. The qualified completion files will be provided to customers according to their requirements within one month after acceptance. |
|
If you are interested in our machine ,please kindly contact us with your required daily capacity, treated quantity, raw material and related data, then we would suggest suitable production line and make flowchart for you as your requirement.

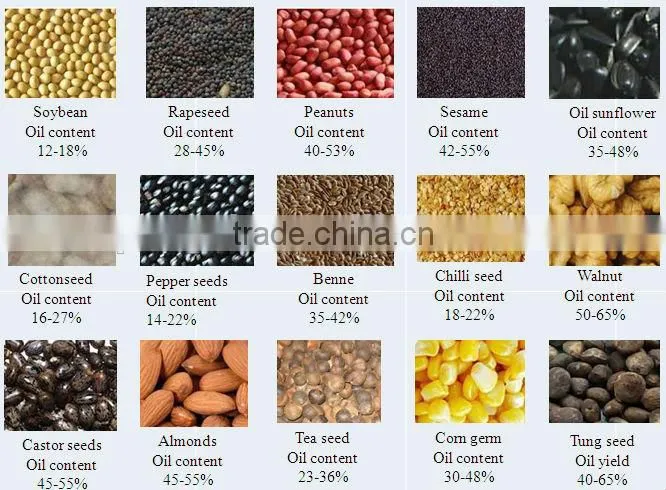

1. Q: Which kind of materials can be processed?
A: All kinds of oil seeds. For eample, rice bran, corn germ, cottonseeds, peanut, sunflower, soybean, rapeseed, etc.
2. Q: What's the capacity?
A: 5-2000 tons per day.
3. Q: The materials of our machine?
A: The stainless steel and carbon steel.
4. Q: Can you install the machine in local place?
A: We will send our engineers to local place to help installing the machine.
5. Q: How to operate the machines?
A: Our engineers will train the worker how to operate it after running.
