Oil deodorization equipments for crude oil refining plant oil deodorization equipments manufacturer with ISO,BV,CE

Oil deodorization equipments for crude oil refining plant oil deodorization equipments manufacturer with ISO,BV,CE

Electric consumption:28Kwh/T oil
Min.Order Quantity:1 Set/Sets
Port:Qingdao or the nearest one
Packaging Details:International standard usually use the wooden case, changed with the requirements of the clients
Delivery Detail:45-60 days

oil deodorization equipments

oil deodorization equipments ----Continuous deodorization(Stainless Steel):

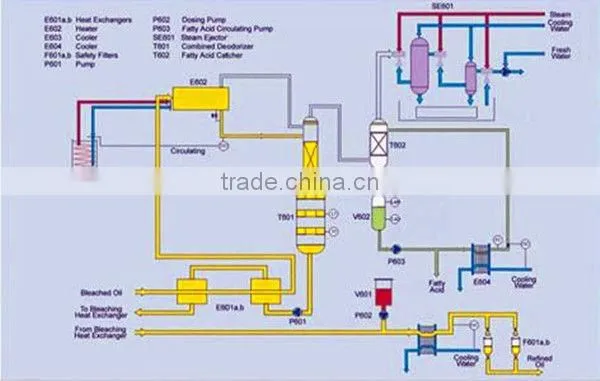

The qualified decolored oil enters into the spiral plate heat echanger to recover most of the heat, and net goes to high pressure steam heat echanger to be heated to the process temperature (240-260C) and then enters the deodorization tower. The upper layer of combined deodorization tower is the packing structure which is mainly used to remove the odor producing components such as free fatty acid (FFA); the bottom layer is the plate tower which is mainly for achieving the hot decoloring effect and reducing the peroide value of the oil to zero. Oil from the deodorization tower enters into the heat echanger to recover most of the heat and makes further heat echange with crude oil, and then is cooled to 80-85C through the cooler. Add the required antioidant and flavor agent, and then cool the oil below 50C and store it. Such volatiles as FFA from the deodorizing system are separated by the packing catcher, and the separated liquid is FFA at low temperature (60-75C). When the liquid level in the temporary tank is too high, the oil will be sent to the FFA storage tank.

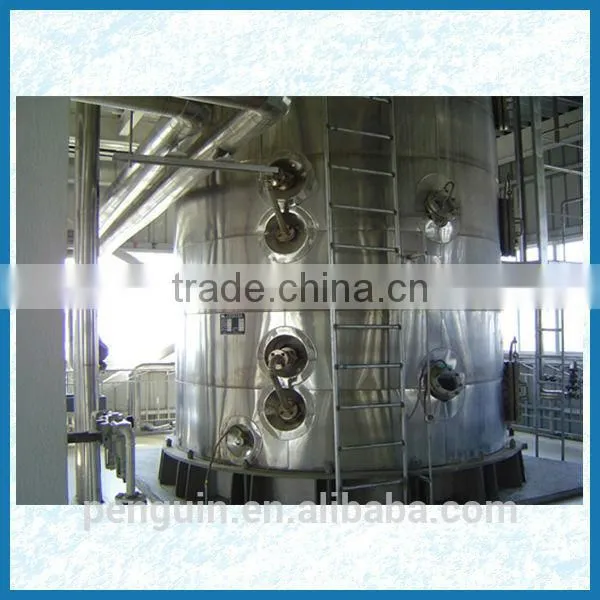

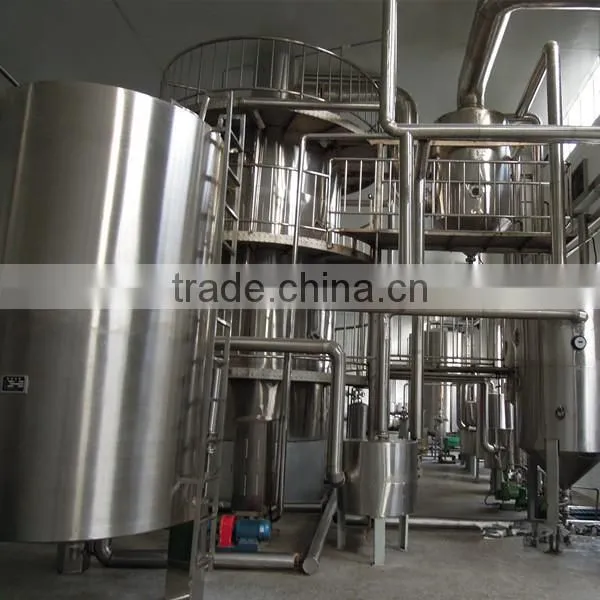

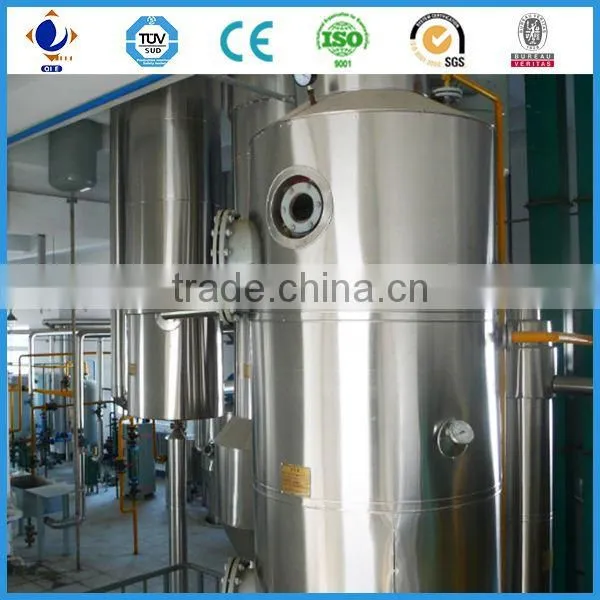

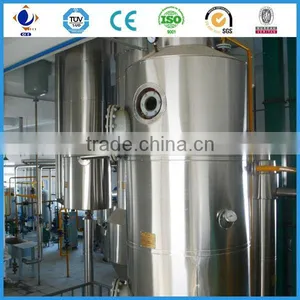

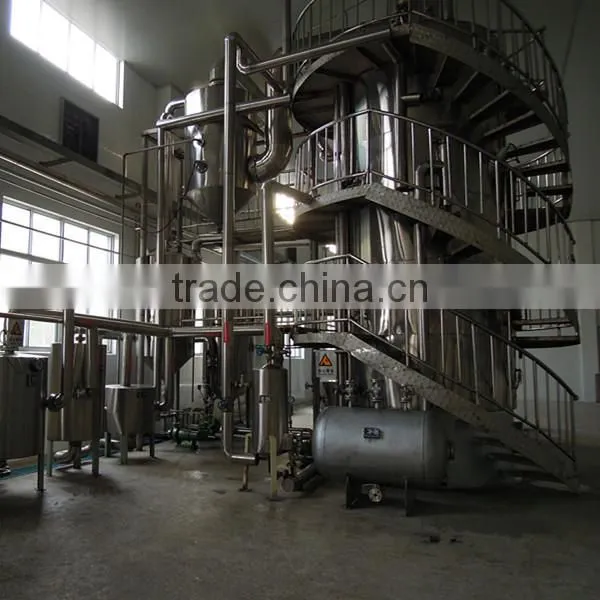

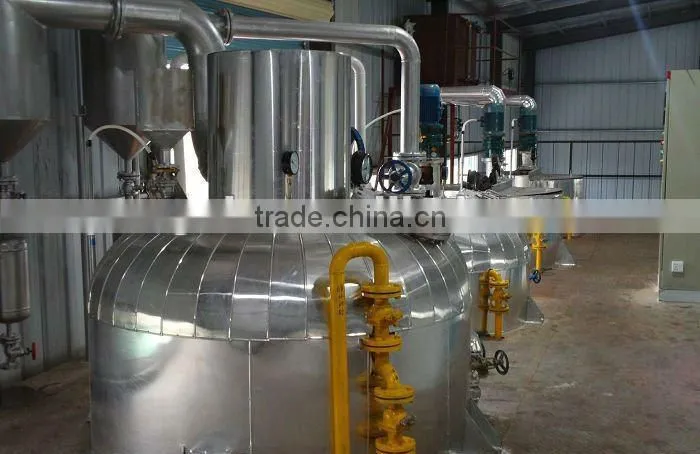

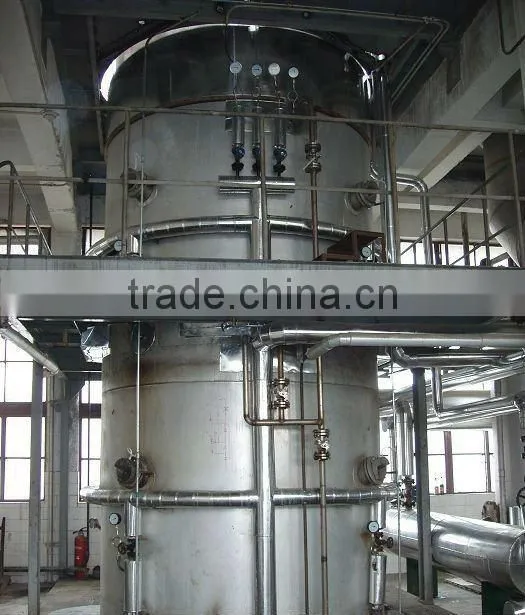

Picture of oil deodorization equipments :

oil deodorization equipments

oil deodorization equipments

oil deodorization equipments
