rapeseed oil refining machinery
colza oil refinery equipment Introduction
rapeseed oil refining machinery Characters
Safety:
1. we using auto welding machine to make the reactor,which can quarrantee the quality of welding seam,avoid cracking and has a long life for about 8 years.
2. professional heating treatment and -ray detection chamber for welding seam .
3. vacuum system to prevent oil gas be back to reactor causing accident.
4. with professional thermometer , professiona pressure gauge and safety valve.
Environment friendly:
1.dedusting system to prevent gas and dust from coal burning.
2.the ehaust gas will be recycled for heating reactor ,no gas pollution.
3.well sealing on every junction parts to prevent gas leak,no smelly.
Longer life :
Using Q345R special steel plate ,welding seam with auto welding an will get heating treatment and -ray detection to etend the life of reactor to the most etend, and the life will tens years.
Energy saving:
1. well sealing for heating system ,no gas leak and saving fuel.
2. the ehaust gas will be recycled for reactor heating
rapeseed oil refining machinery Parameters
Steam consumption |
450KG/T oil |
Electric consumption |
28Kwh/T oil |
Phosphoric acid |
2~3 kg/T oil |
Circulating water cooling water yield |
150m³/H |
Bleaching earth consumption |
5~50Kg/T oil |
Waste bleaching earth oil content |
<35% |
Deodorization loss consumption |
0.5% |
rapeseed oil refining machinery Description
(1) The main parts are two neutralizing tank, one bleaching tank and one deodorizing.They are all hanging on the steel strucutre.
(2)It has proper staircase and railing on all the sides of steel structure at the first floor and also on staircase. There are also two filters,one is used after bleaching,one is used after deodorization.
(3) Two oil tanks : raw oil tank and bleached oil tank ,accomodated under the strucutre on the ground floor. Then cooler, thermal oil boiler, two steam generators, vacuum pump, water pumps, oil pumps and refined oil tank are arranged on the ground floor around the steel structure .
(4) 40ft. tower is erected just near the deodourizer and its complete structure is supported from the ground floor and also it is attached with the refinery structure. Berometric condenser is arranged at 40ft. height to create proper vacuum.
(5) All types of pipes are interconnected as per the requirement of the refinery i.e. oil pipes , vacuum pipelines , steam pipelines, water pipelines , thermic fluid pipelines . At all appropriate places, proper valves controll the pipelines.
(6) Neutralizer is provided with thermal oil coil for heating the oil.
(7) Bleacher is provided with double pipe coil. One is for thermal oil and another is for cooling water.
(8) Deodorizer is provided with double pipe coil i.e. in both the coils, thermal oil is circulated. Steam is ejected from the stainless nozzles provided on the steam pipe cross supported at the bottom.
(9) Cooler is provided with double pipe coil. Both for cooling water.
(10) In every parts, temperature gauge is provided. Vacuum gauge is provided on deodorizer, bleacher and cooler.
(11) Neutralizer is open on the top having conical bottom.
(12) Bleacher has dished ends on both the sides. Similarly deodorizer has dished ends on both the sides. Cooler has also dished ends on both the sides.

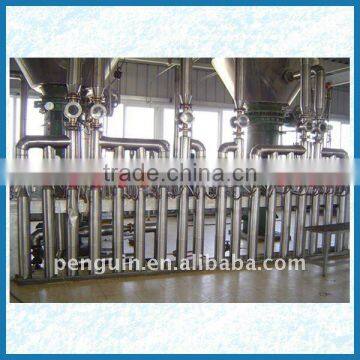

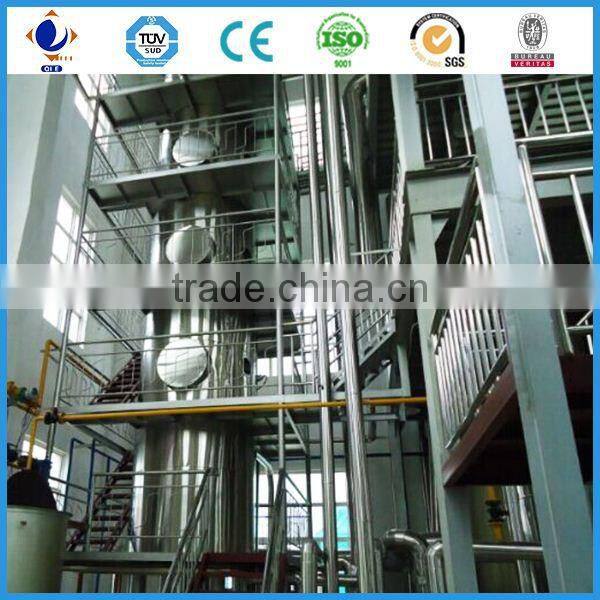

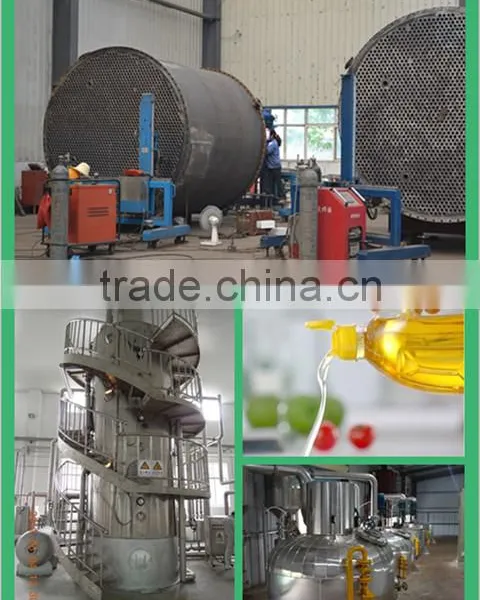

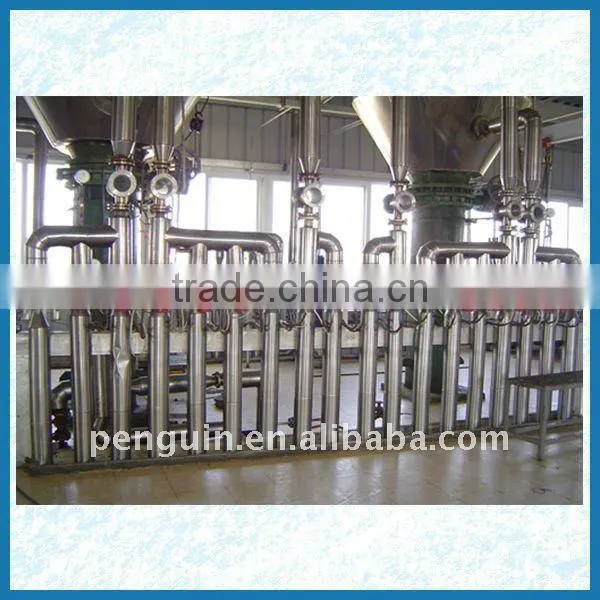

rapeseed oil refining machinery Picture
If you have interest in our rapeseed oil refining machinery ,just feel free to contact us!
1 Engineers to the scene to guide the installation;
2 Online question reply;
3 The warranty period of 12 months;
Our engineers in guiding workers how to operate the machine:
