Brass Wire/Copper Wiredia:0.05--3mm
good corrosion and
constant straightness
used for edm and cable

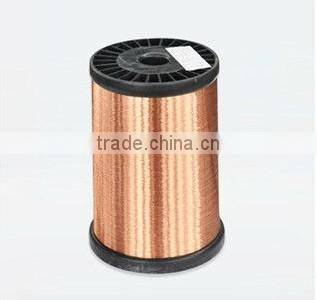

Brass Wire/Copper Wire
Edm brass wire with diameter 0.20, 0.25, 0.30mm, used for wire cutting machines with high quality and competitive price.
1.Material : quality brass wire
2.Wire diameter: 0.30mm, 0.25mm, 0.20mm
3.Weight/spool: 3 kg, 5 kg, 7 kg, 15 kg, 20kg
4.Tensile strength: 1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2
5.Packing: shrink wrapped+carton+pallet to resist moisture, quake, and corrosion.
6.Application: used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi and Makino.
Condition |
Specification |
Diameter (mm) |
Tolerance (mm) |
Tensile Strength (N/mm2) |
Type of Spool (Standard Weight) |
|
Hard |
BSH1003 |
0.10 |
±0.001 |
≥980 |
DIN125(3kg,3.5kg) |
BSH1503 |
0.15 |
±0.001 |
≥980 |
||
BSH20** |
0.20 |
±0.001 |
≥980 |
DIN125(3kg,3.5kg) P5(5kg) DIN160(7kg,8kg) DIN20(15kg,16kg) |
|
BSH25** |
0.25 |
±0.001 |
≥980 |
||
BSH30** |
0.30 |
±0.001 |
≥980 |
||
Semi-hard |
BSSH25** |
0.25 |
±0.001 |
480—520 |
|
BSSH30** |
0.30 |
±0.001 |
|||
Soft |
BSS25** |
0.25 |
±0.001 |
380—420
|
|
BSS25** |
0.30 |
±0.001 |
Brass Wire | ||
mesh/inch |
wire diameter mm |
aperture mm |
2 |
1.6 |
11.10 |
4 |
0.91 |
5.44 |
6 |
0.71 |
3.52 |
8 |
0.50 |
2.67 |
10 |
0.50 |
2.04 |
12 |
0.45 |
1.66 |
14 |
0.40 |
1.41 |
16 |
0.30 |
1.28 |
18 |
0.25 |
1.16 |
20 |
0.25 |
1.02 |
30 |
0.21 |
0.64 |
40 |
0.19 |
0.45 |
