Specifications
brass wire mesh1.Mesh:6mesh-160mesh
2.Material: Brass Wire
3.Length: 30m or as required
4.Width:0.9m,1.0m,1.2m etc...

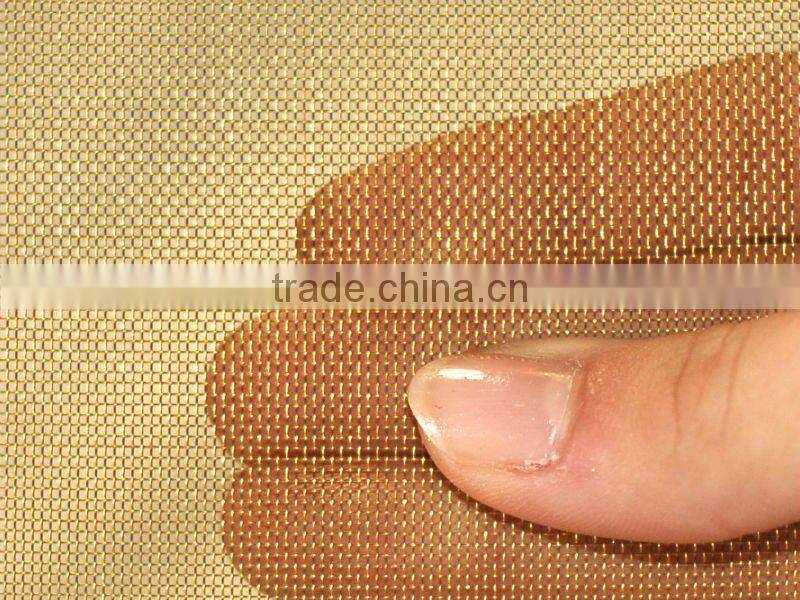

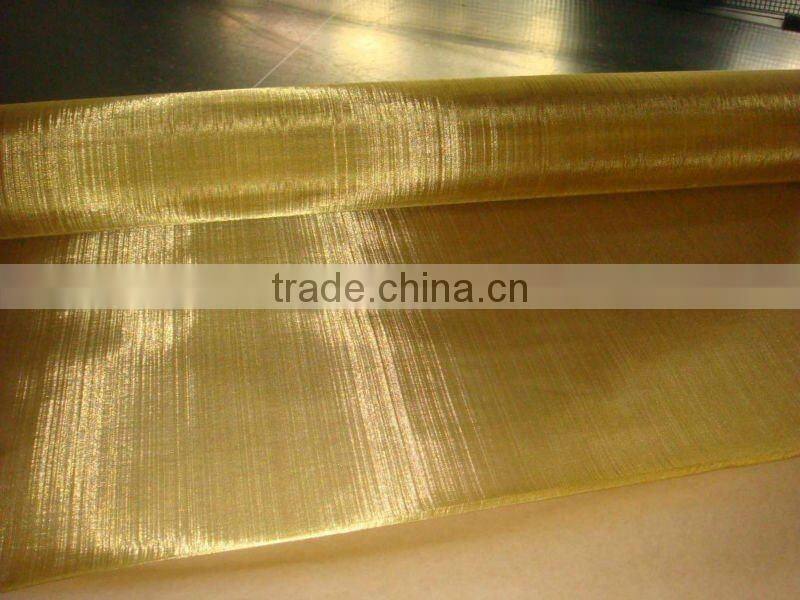

Brass wire mesh
Brass wire mesh (cloth) and phosphor bronze wire mesh (wire cloth) are frequently used as sieving and filtering materials in screening pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas.
Brass wire mesh and wire cloth possess greater strength than copper wire mesh or bronze wire mesh. Copper wire cloth finds wide usage in traveling water screens, radio frequency interference shielding, sugar and marine applications.
For more information about brass woven wire mesh and wire cloth products, please contact us.
Some specifications for your reference
Mesh |
Wire Dia. (MM) |
Opening(mm) |
||
SWG |
mm |
inch |
||
6mesh |
22 |
0.711 |
0.028 |
3.522 |
8mesh |
23 |
0.610 |
0.024 |
2.565 |
10mesh |
25 |
0.508 |
0.020 |
2.032 |
12mesh |
26 |
0.457 |
0.018 |
1.660 |
14mesh |
27 |
0.417 |
0.016 |
1.397 |
16mesh |
29 |
0.345 |
0.014 |
1.243 |
18mesh |
30 |
0.315 |
0.012 |
1.096 |
20mesh |
30 |
0.315 |
0.0124 |
0.955 |
22mesh |
30 |
0.315 |
0.0124 |
0.840 |
24mesh |
30 |
0.315 |
0.0124 |
0.743 |
26mesh |
31 |
0.295 |
0.0116 |
0.682 |
28mesh |
31 |
0.295 |
0.0116 |
0.612 |
brass wire mesh for filter disc
1. characteristics
Non-magnetic, wear resistance, acid and alkali resistance, good ductility, good conductivity, good heat transfer performance and so on.
2. material
copper wire
3. weaving types and specification
mesh 3-400mesh
standard roll size
length is 30.5m(100ft),special order 15m(50ft),60m(196ft),100m(327ft)
width is 0.914m(3ft),1m,1.22m(4ft),1.5m(5ft), 2m(6ft)
special order 2.5m(8ft),3m(10ft),4m(13ft),6m(19ft),8m(27ft)
4. packing
Copper wire cloth wrapped around flat and dry mandrel
inside with a moisture-proof wrapping paper or other packaging materials
outside wooden boxes or wooden pallets available
5. How to order ?
If order, please specify
Material ;
Type of Weave ;
Mesh ; Wire diameter ;
Length and width of each roll or piece;
Number of rolls or pieces .
