Specifications
bronze brass wire mesh filter cloth1.factory manufacturer
2.Custom designs available
3.High quality competitive price

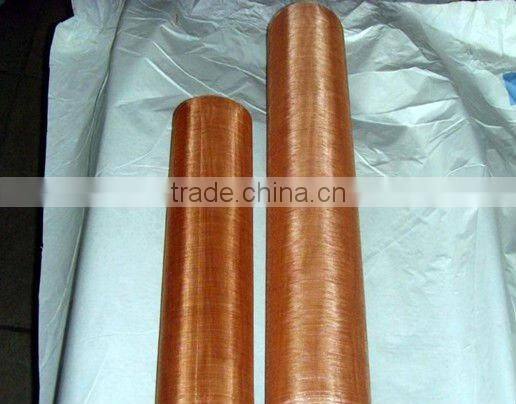

phosphor bronze brass wire cloth
materials:brass wire,
red wire ,phosphor wire
width:0.6-2m
length:30.5m/100'
phosphor bronze brass wire cloth
Anruifeng metal wire mesh group as an exporter in woven wire mesh is able to provide solution for your most specific weaving and application requirement. We can produce brass wire mesh and red copper wire mesh and cloth in excellent quality.
Varieties of brass wire mesh according to the materials:
Brass Wire Mesh (Wire Cloth) H65
Brass Wire Mesh (Wire Cloth) H68
Brass Wire Mesh (Wire Cloth) H80
Red Copper Wire Mesh (Wire Cloth)
Phosphor Bronze Wire Mesh (Wire Cloth)
1.brass wire mesh(brass wire cloth)
material: brass, we have 65 brass(the brass proportion is 65%, the zinc proportion is 35% ), 80 brass(the brass proportionis 80%, the zinc proportion is 20%)., etc.
mesh: 6mesh/inch,----200mesh/inch.
2.purple copper wire mesh
material: purple copper wire(pure copper proportion 99.8%)
feature: non-magnetism, and be able to bear the grind.
Usage: filtrate electron beam and electron display screen, etc.
Mesh: 5mesh---100mesh.
3.phosphor copper wire mesh
material: phosphor copper wire (copper proportion 85%--90%, tin proportion is (5%-15%)
feature: non-magnetism, and be able to bear the grind and ache and alkali, good ductibility
mesh: 8mesh-400mesh/inch
4. Characteristics: Brass wire cloth offers good abrasion resistance, good corrosion resistance and low electrical conductivity
5. Uses and Property: Brass wire cloth(Wire Mesh) is extensively used in sieving diversified pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas. Brass and phosphor bronze wire mesh(wire cloth)are frequently used in sieving diversified pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas.
6. Specification:
Brass Woven Wire Mesh | ||
Mesh/Inch |
Wire Gauge |
Aperture |
8 |
24 |
2.616 |
10 |
24 |
1.98 |
12 |
26 |
1.66 |
14 |
26 |
1.357 |
16 |
30 |
1.27 |
18 |
30 |
1.096 |
20 |
32 |
0.88 |
30 |
34 |
0.613 |
40 |
38 |
0.485 |
50 |
39 |
0.378 |
60 |
40 |
0.301 |
70 |
41 |
0.251 |
80 |
42 |
0.216 |
90 |
43 |
0.191 |
100 |
43 |
0.164 |
120 |
45 |
0.140 |
140 |
45 |
0.110 |
160 |
46 |
0.087 |
180 |
46 |
0.081 |
200 |
47 |
0.067 |
