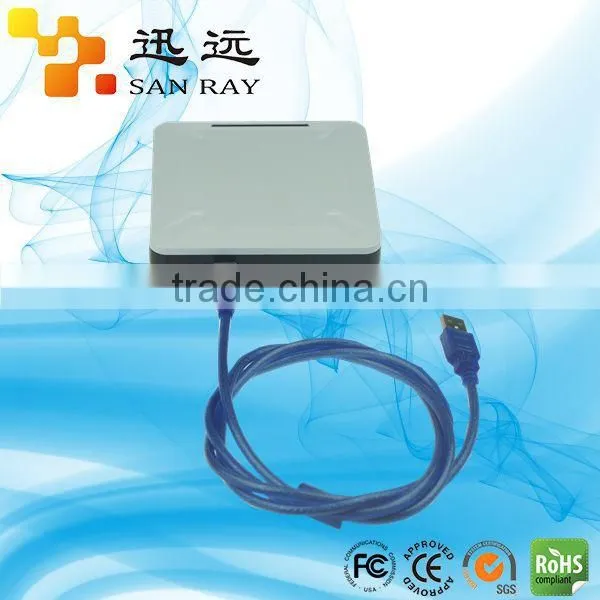

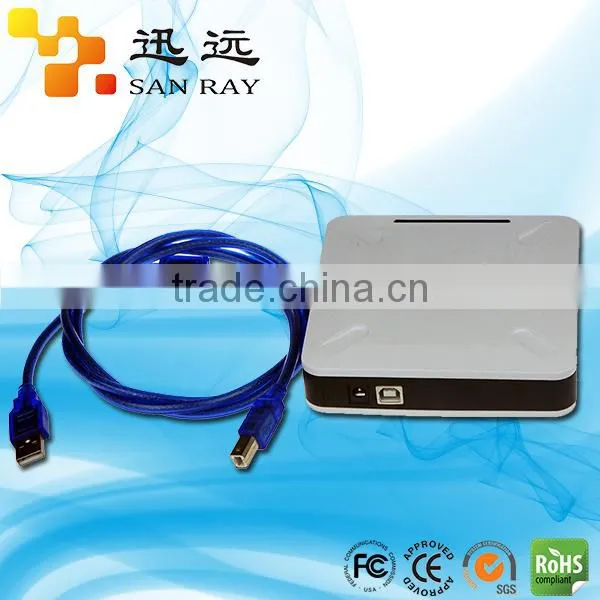

Impinj chip 1m rfid module reader
Description of Impinj 1m rfid module reader F5002-H
F5002-H Mini Desktop Reader is a small and portable integrated reader that is newly developed by Sanray Technology and is used for short distance identification or backstage reader management. Employing SR-M2210 RF Module as the core and basing on the newest IMPINJ R2000(R500 optional) RF chip make this reader’s performance and quality remarkable and stable. It is suitable for personnel access control, pictures or documents management, as well as electronic tags reading, writing, authorizing, formating and other background operations.
Note: reading distance(shorther than 2M) is optional,but please kindly tell me.thanks
Technical Specifications of Impinj 1m rfid module reader F5002-H
NO. |
Name |
Parameters |
1 |
Working Voltage |
DC +12V |
2 |
Working Temperature |
-25~+65℃ |
3 |
Working Humidity |
≤95%(+25℃) |
4 |
Storage Temperature |
-40~+80℃ |
5 |
Tag Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
6 |
Working Frequency |
840--960 MHz optional |
7 |
Supporting Working Areas |
China 1, China 2,US, Canada and other regions following U.S. FCC, Europe and other regions following ETSI EN 302,208 with & without LBT regulations, Japan, Korea, Malaysia, Taiwan |
8 |
Output Power |
Software adjustable, step interval 1.0dB, maximum +30dBm |
9 |
Output Power Flatness |
±0.2dBm |
10 |
Receiving Sensitivity |
-82dBm |
11 |
RF Port Standing Wave |
≤1.5 |
12 |
Reading Range |
Maximum 0.5m (relate to tags type, transmitted power and application environment) reading distance(shorther than 2M) is optional,but please kindly tell me,then we will choose another built in antenna.thanks |
13 |
Writing Range |
Maximum 0.2m (relate to tags type, transmitted power and application environment) Same as above |
14 |
Interface Communication Rate |
115200bps |
15 |
Working Temprature Detection |
Support |
16 |
RSSI |
Support |
17 |
Antenna Type |
-1dBi ceramic antenna |
18 |
Communication Port |
USB |
19 |
Buzzer |
Yes |
20 |
LED |
Red(power indicator) Green(status indicator) |
21 |
Enclosure |
plastic case |
22 |
Size |
12.0*12.0*3.0CM |
Advantages of Impinj 1m rfid module reader F5002-H
1. Employed IMPINJ R500 and R2000 RF Chips, up to -82dbm receiving sensitivity and the highest performance in this field makes this module more suitable for harsh application environment.
2. Low power consumption, brilliant performance.
3. Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
4. Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.
5. The use of carrier wave cancellation technology makes the tags reading more accurate and reading scope wider.
6. Enhanced noise suppression function for reliable data capturing.
7. High precision return signal strength (RSSI).
8. Excellent performance of anti-interference
9. Plastic case, small and portable, rugged and durable.
Overview of Impinj 1m rfid module reader F5002-H
What we can supply
We are committed to providing the highest level of these serial RFID products below,
UHF RFID Module/ Desktop Reader / Four Port Fixed Reader / Integrated Reader / Handheld Reader / Antenna / Gate / 2.45GHz Active Reader/Tags etc.
We are the manufactuer,welcome OEM and ODM.
Why us
*Strict QC department to ensure quality and to get your trust.
*Factory sales directly with professional sales team.
*Best price High quality and favorable service.
*Express service for some urgent delivery orders to meet customer request.
*Complete RFID solutions.
*Testing samples of all models will be available upon your request.
Main applications of our uhf rfid devices
* Access control, convention registeration
* Intelligent parking management.
* Logistics & Digital warehouse management.
* Industrial production process control system.
* Attendance system
* Students management
* Auto-identifying and tracking of important person or objects
* Tracking, orientation and checking people in coal mine,etc.
If you are interested in our Impinj 1m rfid module reader F5002-H,please kindly contact
