Impinj R2000 Long Range UHF RFID Reader

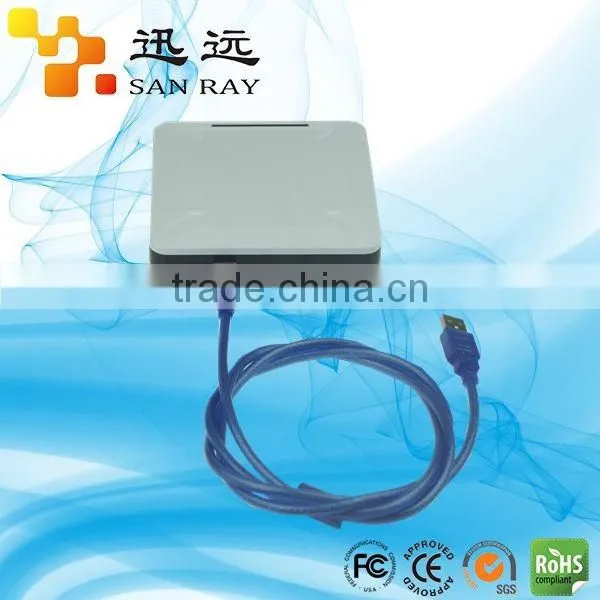

F5002H is a high end desktop UHF RFID reader/writer with USB interface, which is embedded the M2210 module and -2dBi/2dBi ceramic antenna. Its reading range can be up to 1.5 meter.
F5002H adopts plastic case, it is compact, small, portable and durable and suitable for desktop application for its rapid and precise reading/writing performance
Technical Specifications :
NO. |
Name |
Parameters |
1 |
Working Voltage |
DC +12V |
2 |
Working Temperature |
-25~+65°C |
3 |
Working Humidity |
≤95%(+25°C) |
4 |
Storage Temperature |
-40~+80°C |
5 |
Tag Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
6 |
Working Frequency |
840--960 MHz |
7 |
Supporting Working Areas |
China 1, China 2; US, Canada and other regions following U.S. FCC;Europe and other regions following ETSI EN 302 208 with & without LBT regulations (Japan/Korea/Malaysia/Taiwan) |
8 |
Output Power |
Software adjustable, step interval 1.0dB, maximum +30dBm |
9 |
Output Power Flatness |
±0.2dBm |
10 |
Receiving Sensitivity |
-82dBm |
11 |
RF Port Standing Wave |
≤1.5 |
12 |
Reading Range |
Maximum 0.5m (relate to tags type, transmitted power and application environment) |
13 |
Writing Range |
Maximum 0.2m (relate to tags type, transmitted power and application environment) |
14 |
Interface Communication Rate |
115200bps |
15 |
Working Temprature Detection |
Support |
16 |
RSSI |
Support |
17 |
Antenna Type |
-1dBi ceramic antenna |
18 |
Communication Port |
USB |
19 |
Buzzer |
Yes |
20 |
LED |
Red(power indicator);Green(status indicator) |
21 |
Enclosure |
plastic case |
22 |
Size |
12.0*12.0*3.0CM |
Product Advantage:
1. Employed IMPINJ R2000 RF Chips, up to -82dbm receiving sensitivity and the highest performance in this field makes this module more suitable for harsh application environment.
2. Low power consumption, brilliant performance.
3. Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
4. Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.
5. The use of carrier wave cancellation technology makes the tags reading more accurate and reading scope wider.
6. Enhanced noise suppression function for reliable data capturing.
7. High precision return signal strength (RSSI).
8. Excellent performance of anti-interference
9. Plastic case, small and portable, rugged and durable.
