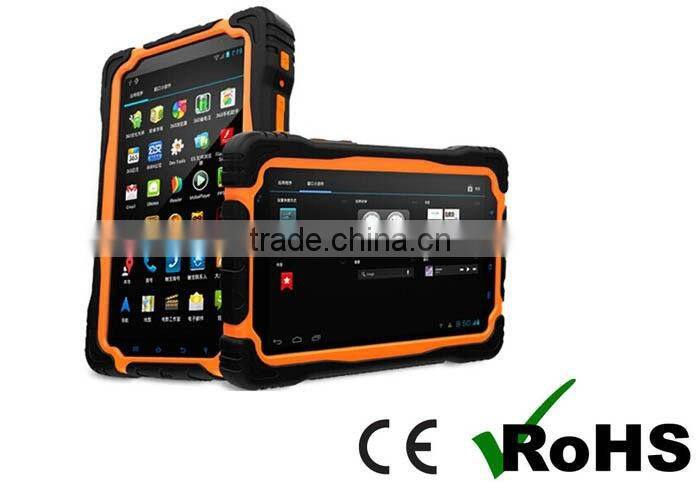

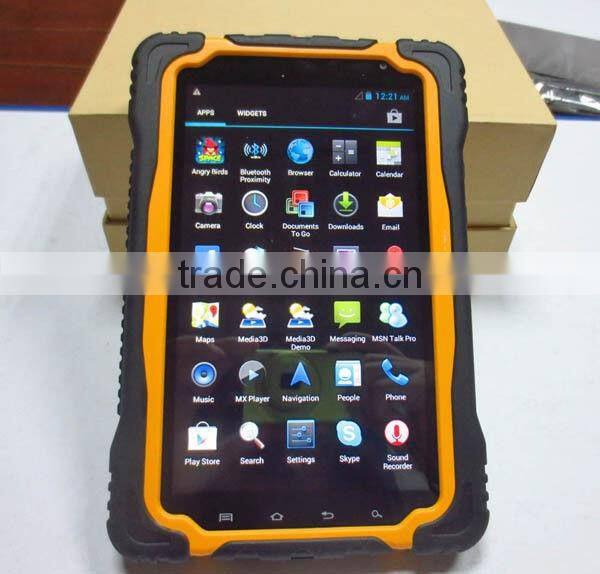

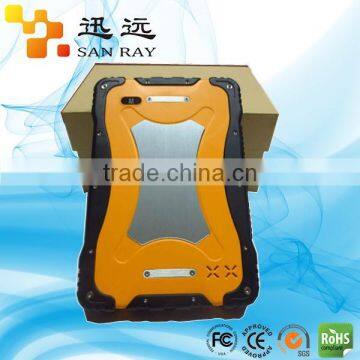

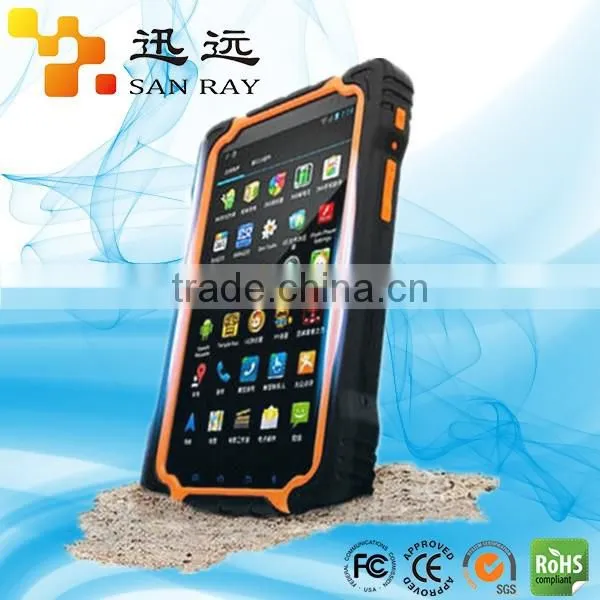

Waterproof IP67 Android 4.21 Table Rfid Reader 7 inch
P6300 uhf RFID is three-in-one tablets, adopts the design of waterproof, dust proof, put down, and With advanced uhf RFID radio frequency module, read and write distance up to 3 meters.In geography, logistics, Lin Industry, public transportation, construction, maintenance, mining, military and security, has special operation and working outdoors The domain is used.Product specifications for 200 x132x21mm, weighs 650 grams, waterproof and dust proof design level IP67 (guarantee Level IP66), fall protection in accordance with MIL - STD - 810 - g/Method516.6 / Procedure IV of the military Protection level, maximum resistance to 1.8 meters of arbitrary Angle drop, static pressure test for more than 2 tons. Also has a large capacity Quantity of batteries, outdoor sunlight environment visual, ultra-low temperature under the condition of shell start up, etc
Product advantage
- 1. Adopt high-performance UHF RFID chips, read and write distance up to 3 meters.
- 2. With high stability;
- 3. The protection grade could reach IP67
- 4. The large capacity battery, long run.
- 5. 1.8 meters fall protection.
- 6. Touch screen: full toughened capacitive touch screen surface hardness greater than 8 h, 400 CD/M2 brightness visible in the sunlight.
Main Parts Performance Parameters:

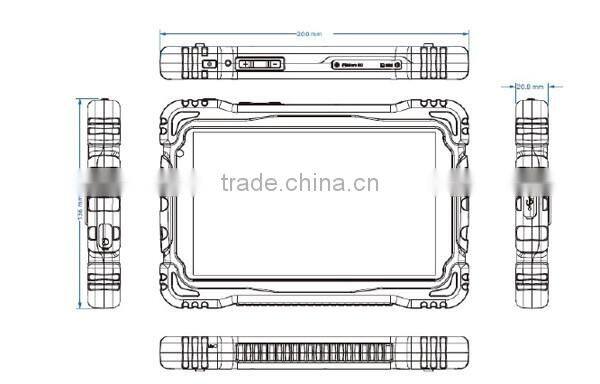

| Size | 200*136*21mm(L×W×H) |
| Weight(g) : | 650g |
| CPU | MT6589WK/MT6582 (Quad core 1.2Ghz Processor) Cortex A7 |
| Phone and 3 g spectrum | WCDMA 850/2100 (850/1900 optional) & GSM850/900/1800/1900 |
| Phone SIM card interface: | support,common1.8/3.3V SIM card |
| OS | Android 4.2.1 |
| Navigation and positioning built-in | GPS Satellite-navigation chips, support A-GPS,EPO |
| RFID | Support functions of uhf RFID,read range up to 3m |
| OTG | support |
| FM radio | support |
| Bluetooth | BT4.0 (A2DP+EDR) |
| Motion sensor | support |
| Gravity sensor | support |
| Geomagnetic sensor | support |
| Gyro Sensor | support |
| Trumpet | 20x30 Membrane type speaker unit |
| Network connections | 3G |
| Communication | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ |
| 11.5Mbps), support WIFI route sharing | |
| EDGE : | support |
| GPRS | support |
| WAP | support |
| WI-FI | support |
| Main display | 7.0”hd IPS/AFFS display 1024 * 600 600 CD/m2 visual highlight the sun. |
| Touch screen | G + G 5 full toughened high strength capacitance touch screen |
| Main camera | 5 million pixels with af and electronic flash |
| Deputy camera | 2 million megapixel camera |
| Built-in storage | 1 GB of RAM + 8 GB ROM |
| External memory expansion | Micro SD card (T - FLASH card) card reader, maximum support 64 GB extension |
| Battery | 9650 mah |
| Charging interface | USB Micro 5 pin |
| Data interface | USB Micro 5 pin |
| Headphone jack | 3.5 mm |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (podcast), Italian, German, Dutch, French, Polish, Romanian, Turkish, the Russian, Arabic, Indonesian, Malay,Thai, Vietnamese, Hindi, Hebrew, Simplified Chinese |

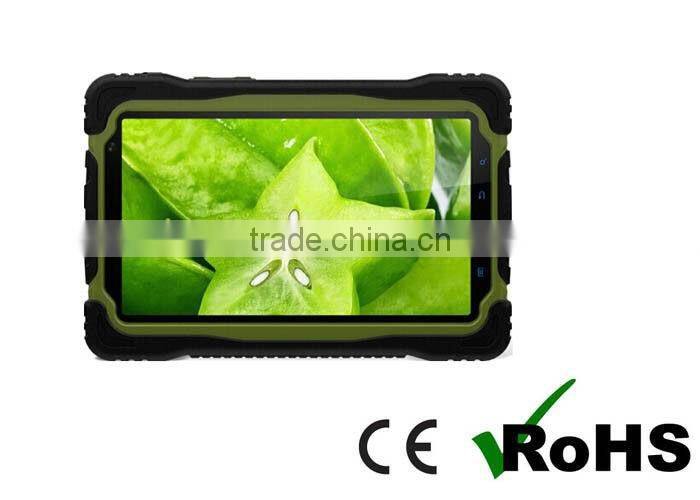

| Color | yellow sun, army green, metallic grey |
| Shock resistant | 1-19 Hz / 1-1.0 mm 19-200 Hz / 1.0 g acceleration amplitude |
| Shock resistance | Meet MIL - STD - 810 - g/Method516.6 / Procedure military protection grade IV |
| Waterproof grade | 6 class |
| Dust proof grade | 6 class |
| Reliability | MTBF > 50000 h;MTTR < 0.5 h |
| Working temperature | - 20 ° C to + 65 ° C |
| Storage temperature | - 40 ° C to +80 ° C |
| Relative humidity | 5% to 95% |
| Working height | maximum working height: 4500 meters (15000 feet) |
Application scenarios
1. Storage: intelligent storage management program
2. Electricity: intelligent Inspection tour management solution, electric assets tracking management system
3. Exhibition: Access control, data acquisition solution, RFID wrist strap technology solutions in the exhibition center,
4. Manufacture: garment manufacturer’s operational sequence solution
5. Interlock: running multiple shop’s management solution
6. Express: express and logistics industry’s mobile application
7. Transportation: jeeves,smart parking’s charging solution
8. Medicine: the application of the electronic supervision of drug
9. Highroad: road traffic inspection management solution
10. Asset: Mobile assets inventory management system, routing inspection management system.
11. Traceability: products/goods traceability management system.
12. Anti-fake: cigarettes and wine, valuables’ anti-fake application
13. Sales: the retail inventory, promotion, cargo inventory management
14. Agriculture: smart agriculture and forestry management solution, Temperature and humidity monitoring system.
15. Operator: the base station inspection, network optimization
Package:
| Business type: | Manufacturer,Trading company |
| Main Products: | RFID Reader/Tag/Module,UHF Reader,Active Reader |
| Location: | Guangdong, China (MainlaManufacturer, Trading Companynd) |
| Year Established: | 2011 |
| Year start exporting: | 2013 |
| Number Of Employees: | 101 - 200 People |
| Total Revenue: | US$2.5 Million - US$5 Million |
| Main Markets: | Eastern Europe, Mid East, North America, Western Europe, South America |
