Home > Products > 2.45GHz Active RFID Reader > RTLS 2.45GHz Active RFID Reader 100M

RTLS 2.45GHz Active RFID Reader 100M

FOB Price

USD $150 - $300 / Piece

1 Piece(Min.Order)

Product Details

Place of Origin:

Guangdong, China

Model Number:

SR-RFID3421, SR-RFID3421

Product Name: RTLS 2.45GHz Active RFID Reader

Model No: SR-RFID3421

Frequency:2.4GHz~2.5GHz ISM(customizable)

Small size, easy to install

Excellent anti-collision performance

Multiple Interface

Key features

Small size, easy to install

Long distance identification, strong receiving sensitivity

Excellent anti-collision performance

Little RF Power (No more than 1dBm, transmitting power ≤2mw), which is suitable for human carry and environment friendly

Multiple communication interfaces, also can be customized

Self-development communication protocol and can customize and expand as your requirement

Compatible to other tag protocol and improve the performance of system application

*Technology specification*s
Operating frequency	2.4GHz~2.5GHz ISM
Identify direction	Directional
Antenna	15dBi build-in antenna
RF power range	-18.0dBm~0.0dBm( adjusted by 32 grade)
Receiving sensitivity	-90.0dBm
Operating mode	FHSS or fixed frequency(set by software)
Modulation	GFSK
Reading range	0~200m adjustable RSSI reader can be adjusted less than 10m
Anti-collision	Up to 1000 tags read simultaneously
Buffer capacity	2000 tags data
Communication speed	25Kbps, 1Mbps, 2Mbps(adjustable)
Communication interface	RS-232, S-485, Ethernet, Wiegand26/34/42/50
Input and output	1 triggering input, 1 relay output
Optional function	2 relays, CAN, RSSI, ID match function, Offline function, Time function
Power supply	AC input: 100~240V, 50/60Hz 1.2A DC output: 5V/1A
Product size	225mm225mm100mm
Packing size	450mm300mm140mm
Gross weight	2.78kg
Net weight	1.82kg
Working temperature	-20°C~+70°C(-4~+158 degree F)
Storage temperature	-40°C~+85°C (-40~+185 degree F)

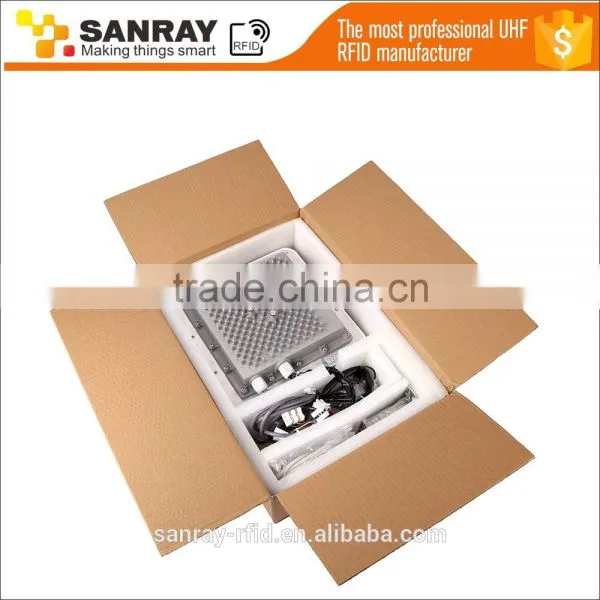

Accessories	Power adapter, Power cable, RS-232 cable, Mounting bracket
Working status indication	Buzzer

Typical Applications

Intelligent transportation management

Asset identification, tracking and checking management

Intelligent management in traffic police, patrolman etc.

Position moniter management for baby, prisoner, olders psychotic etc.

Electronic ticket, access control, time attendance, school management etc.
