2.4Ghz Active RFID Reader RS232 Interface

US$ 150 - 300 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

SR-RFID3421, SR-RFID3421

Shenzhen Sanray Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number SR-RFID3421, SR-RFID3421

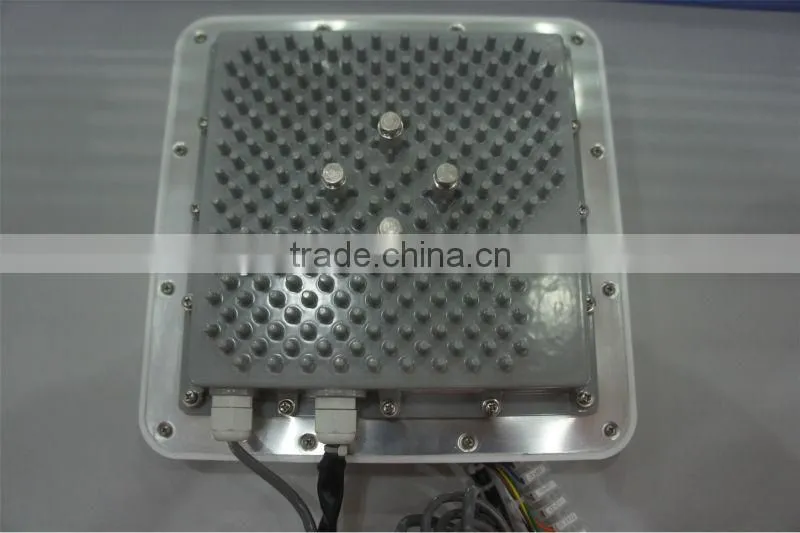

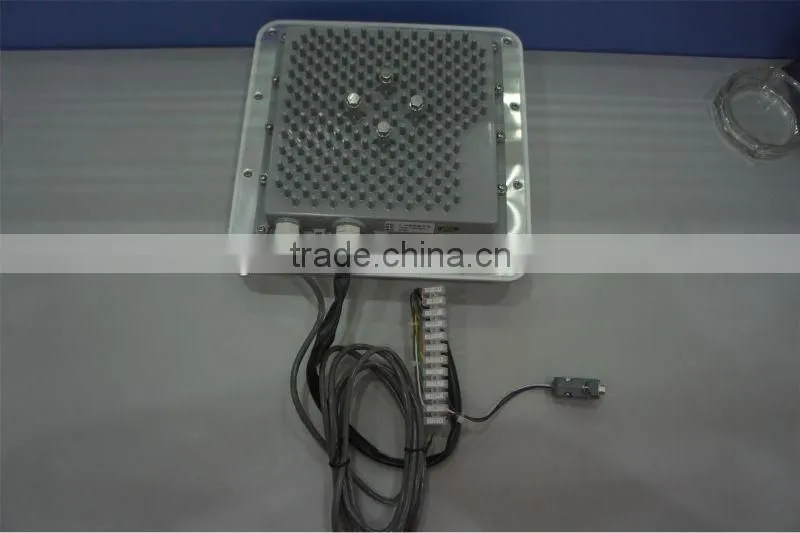

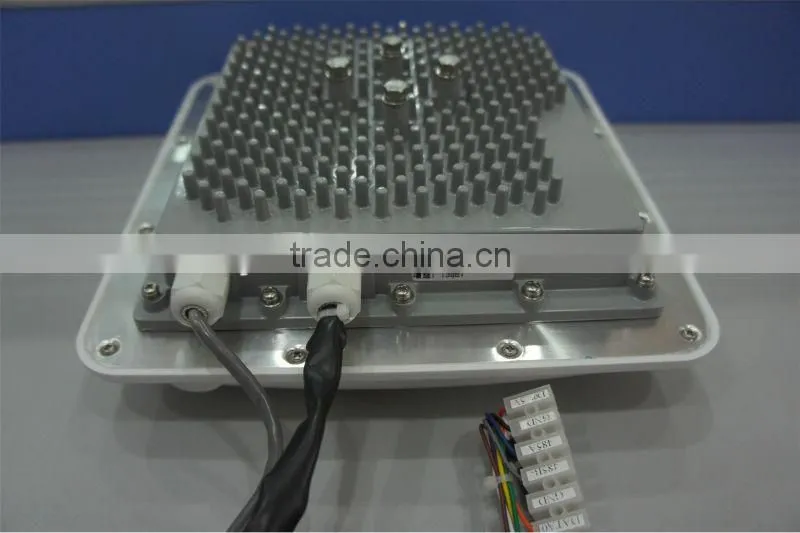

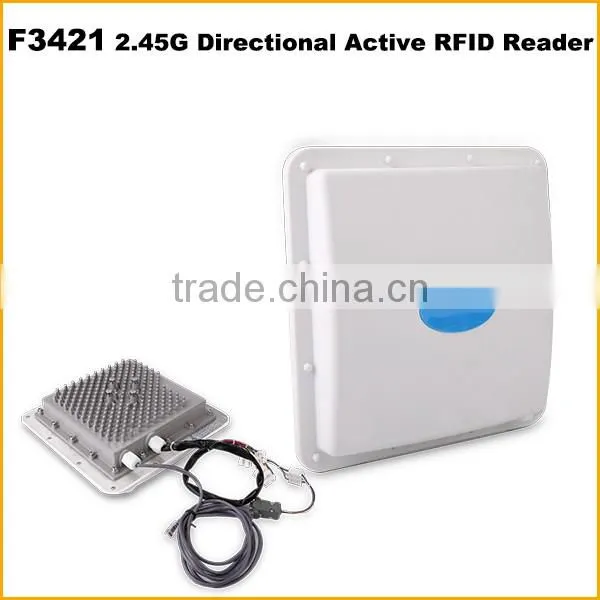

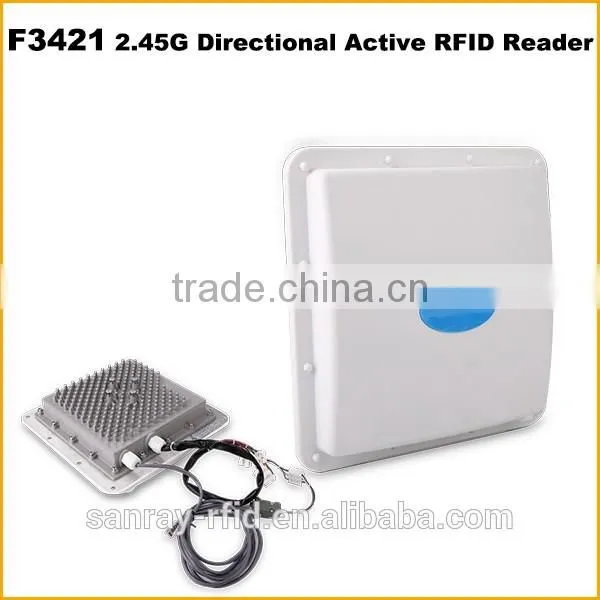

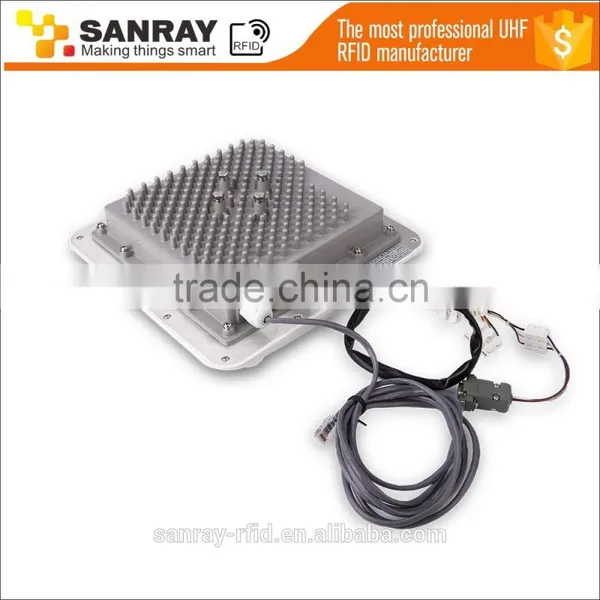

Product Name: Sanray 2.45GHz Active RFID reader with RS232 Interface for RTLS (Directional)

Model No: SR-RFID3421

Frequency:2.4GHz~2.5GHz ISM(customizable)

Small size, easy to install

Excellent anti-collision performance

Multiple Interface

Key features

Small size, easy to install

Long distance identification, strong receiving sensitivity

Excellent anti-collision performance

Little RF Power (No more than 1dBm, transmitting power ≤2mw), which is suitable for human carry and environment friendly

Multiple communication interfaces, also can be customized

Self-development communication protocol and can customize and expand as your requirement

Compatible to other tag protocol and improve the performance of system application

*Technology specification*s
Operating frequency	2.4GHz~2.5GHz ISM
Identify direction	Directional
Antenna	15dBi build-in antenna
RF power range	-18.0dBm~0.0dBm( adjusted by 32 grade)
Receiving sensitivity	-90.0dBm
Operating mode	FHSS or fixed frequency(set by software)
Modulation	GFSK
Reading range	0~200m adjustable RSSI reader can be adjusted less than 10m
Anti-collision	Up to 1000 tags read simultaneously
Buffer capacity	2000 tags data
Communication speed	25Kbps, 1Mbps, 2Mbps(adjustable)

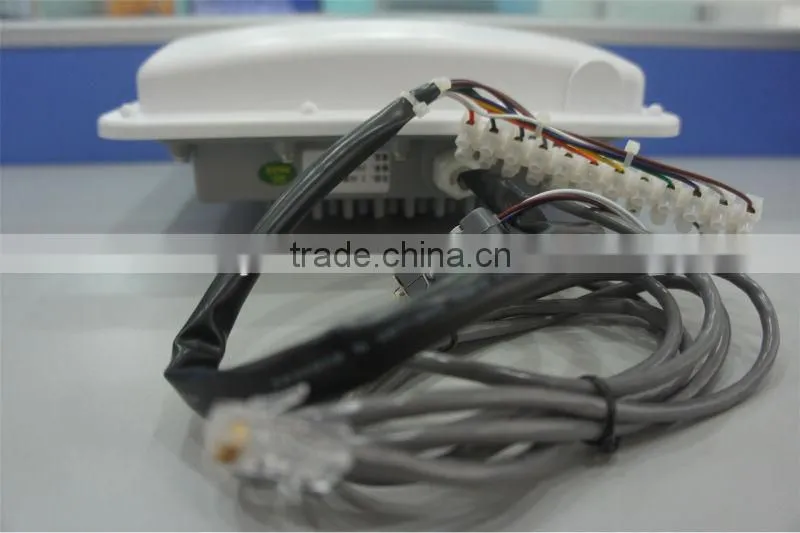

Communication interface	RS-232, S-485, Ethernet, Wiegand26/34/42/50
Input and output	1 triggering input, 1 relay output
Optional function	2 relays, CAN, RSSI, ID match function, Offline function, Time function
Power supply	AC input: 100~240V, 50/60Hz 1.2A DC output: 5V/1A
Product size	225mm225mm100mm
Packing size	450mm300mm140mm
Gross weight	2.78kg
Net weight	1.82kg
Working temperature	-20°C~+70°C(-4~+158 degree F)
Storage temperature	-40°C~+85°C (-40~+185 degree F)

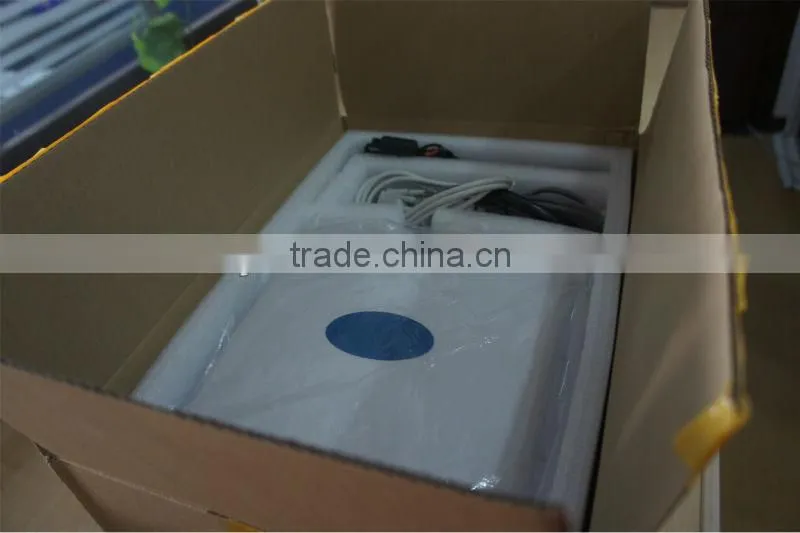

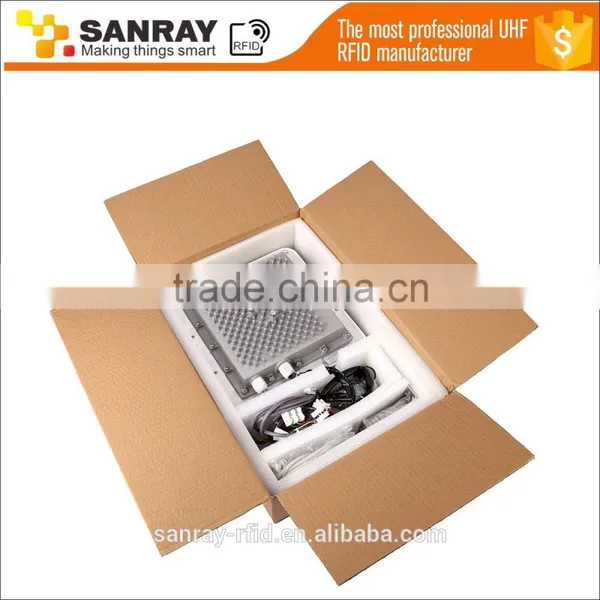

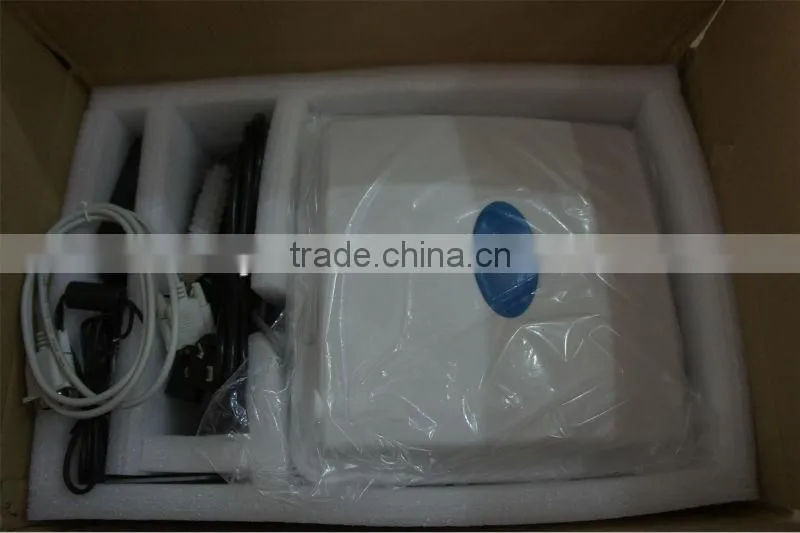

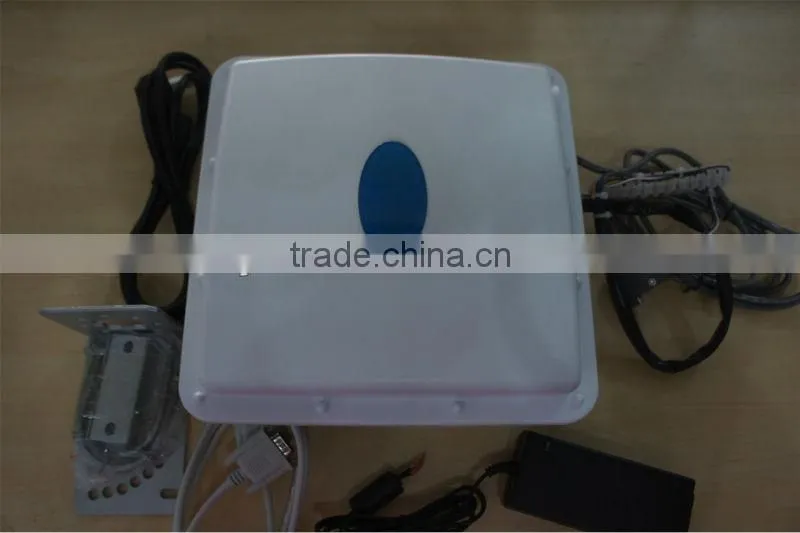

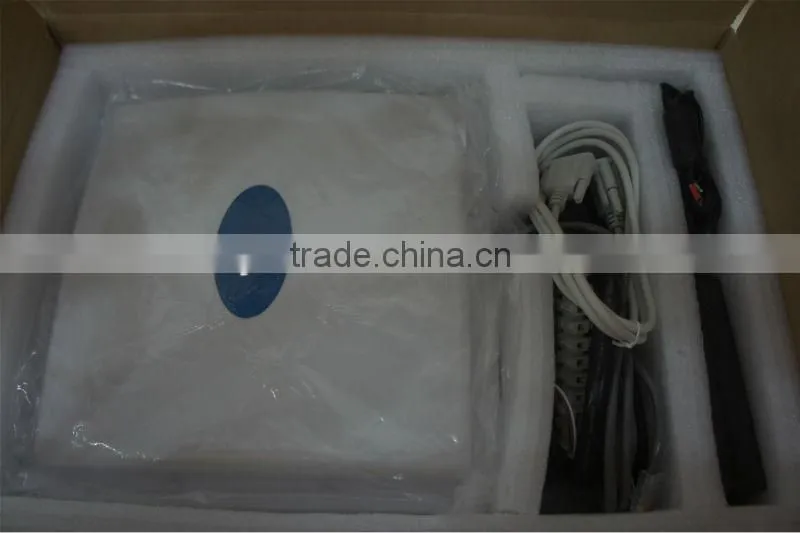

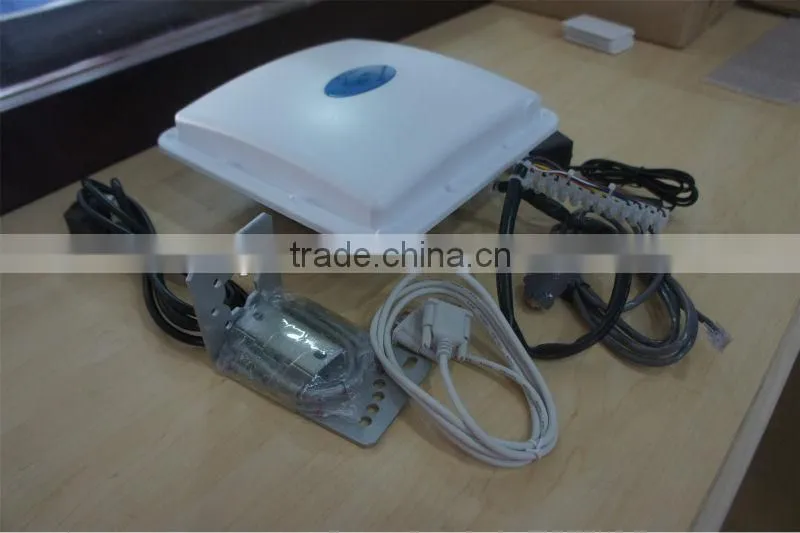

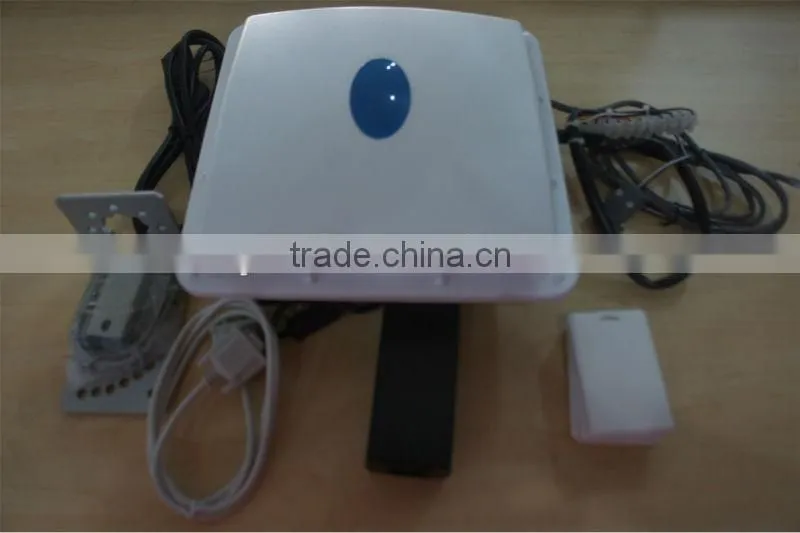

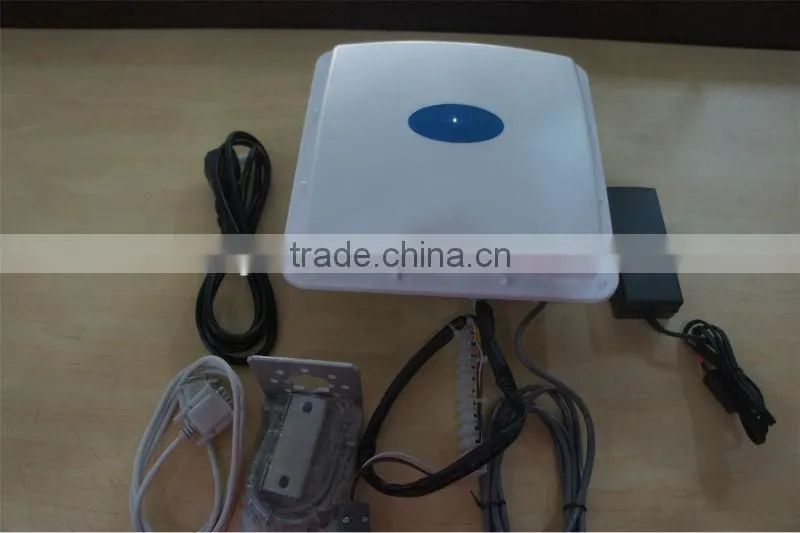

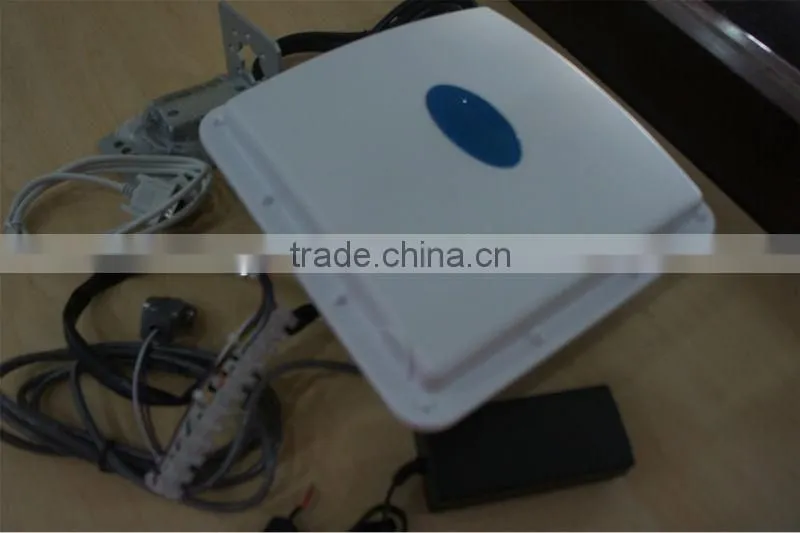

Accessories	Power adapter, Power cable, RS-232 cable, Mounting bracket
Working status indication	Buzzer
