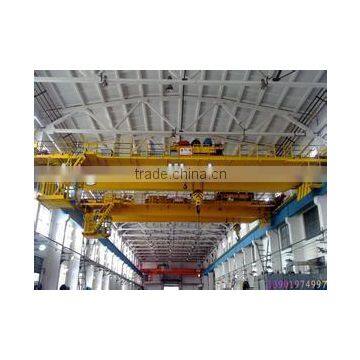

20t Workshop Overhead Crane

FOB Price

US$ 190 - 20,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	workshop
Rated Loading Capacity	20t	Rated Lifting Moment	7.5-22.5m
Max. Lifting Load	20t	Max. Lifting Height	30m
Span	6.5-31.5m	Place of Origin	Shandong, China
Brand Name	Xinguangzheng	Model Number	LD
Certification	ISO, CE, SGS	Warranty	12 month from the B/L date
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Workshop Overhead Crane

No 1. Introduction

The single girder 10t overhead crane is the most popular crane for all type of workshops. It can be characterized by advanced metal structure and higher steel strength, used together with CD1 or MD1 electric hoist as a complete set.

These cranes are more efficient and require less maintenance.working class A3-A5, working temperature is between -25C to 40C.

This crane model recommended by the WTO and match China standard JB/T1306-94.

Which has two operational methods- pendant or cabin (open or closed type).

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

No 2.Sketch

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

No 3.Technical parameter

LD-10t-20m-9m
Crane traveling system	Traveling speed (m/min)		20
	Ratio i		58.78
	Motor	Model	ZDY₁22-4
		Power (Kw)	2×1.5
		RPM (m/min)	1380
Hoist part	Model		CD1
	Lifting speed (m/min)		7
	Lifting height (m)		9
	Traveling speed (m/min)		20
	Lifting motor		ZD₁51-4/13
	Traveling motor		ZDY₁21-4/0.8X2
Work duty	A5
Power supply	380V 50Hz 3P
Wheel diameter	Φ270
Rail range	60~70

Basic dimension (mm)	H1	1000
	h	1600
	L2	1830
	L1	1230
	W	3000
	B	3500
	h1	1250
Min wheel load (t)		1.55
Max wheel load (t)		6.6
Total weight (t)		7.76
Span (m)		20
Lifting capacity (t)		10

-----------------------------------------------------------------------------------------------------------------------------------------

No 4. Lifting tools required:

No 5.Matching accessories:

No 6.If you are in need of Bridge crane,please let me have the following information:

No 7.Short introduction about our company:

Our company is established in 1996,has been in steel structure building,container house,prefabricated house,related building materials,various matchines for almost 20years,So I am fully confident in supplying you the relavant products.
