Home > Manufacturing & Processing Machinery > Crane > Overhead Crane > Workshop Mobile Gantry Crane

Workshop Mobile Gantry Crane

Name: Workshop Mobile Gantry Crane
Brand: Xinguangzheng
SKU: 139188405

Workshop Mobile Gantry Crane thumbnail-1

US$ 190 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

workshop

Rated Loading Capacity:

20t

Contact Supplier Request Quote Chat Now

Qingdao XGZ Steel Structure Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application workshop

Rated Loading Capacity 20t

Rated Lifting Moment 7.5-22.5m

Max. Lifting Load 20t

Max. Lifting Height 30m

Span 7.5-45m

Place of Origin Shandong, China

Brand Name Xinguangzheng

Model Number LD

Certification ISO, CE, SGS

Warranty 12 month from the B/L date

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1)Span:7.5m-45m
2)Working grade:A3-A5
3)EURO design ok
4)Push button or radio control

Workshop Overhead Crane

1. Introduction

Workshop overhead crane 10ton 16ton LDA model Single girder bridgecrane is improved and designed on the basis of LD model.

It is characterized by more reasonable structure and higher strength steel as a whole.

Used together with CD1 model, MD1 model,

HC model electric hoist as a complete set, It is one kind of light duty crane Standard

This product is widely used in plants, warehouses, material stocks to lift goods or materials.

It is prohibited to use the equipment in the combustible, explosive to corrosives environment

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical Parameters of bridge crane:

Capacity		T	1,2,3,5,10	16,20
Span		m	7.5-22.5
Lifting height		m	6,9,12,18,24,30	12,18,24,30
Operation method			Pendent line with push button/ remote control
Speed	Lifting	m/min	8,8/0.8,7/07	3.5,3.5/0.35
	Cross travel	m/min	20,30	20,30
	Long travel	m/min	20,30,45,60,75
Electric hoist		type	CD/MD	CD/MD/HC
Working duty			A3	A3
Power supply		AC	380V/50HZ/3P	380V/50HZ/3P

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

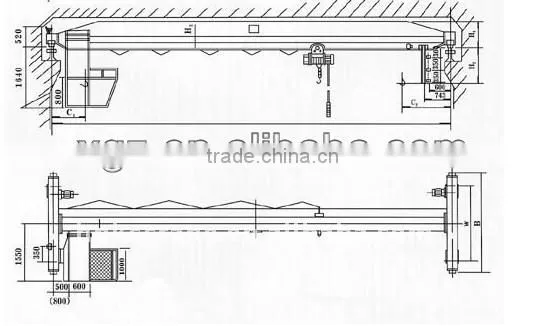

2.Sketch

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

3.Technical parameter

LD-10t-20m-9m
Crane traveling system	Traveling speed (m/min)		20
	Ratio i		58.78
	Motor	Model	ZDY₁22-4
		Power (Kw)	2×1.5
		RPM (m/min)	1380
Hoist part	Model		CD1
	Lifting speed (m/min)		7
	Lifting height (m)		9
	Traveling speed (m/min)		20
	Lifting motor		ZD₁51-4/13
	Traveling motor		ZDY₁21-4/0.8X2
Work duty	A5
Power supply	380V 50Hz 3P
Wheel diameter	Φ270
Rail range	60~70

Basic dimension (mm)	H1	1000
	h	1600
	L2	1830
	L1	1230
	W	3000
	B	3500
	h1	1250
Min wheel load (t)		1.55
Max wheel load (t)		6.6
Total weight (t)		7.76
Span (m)		20
Lifting capacity (t)		10

-----------------------------------------------------------------------------------------------------------------------------------------

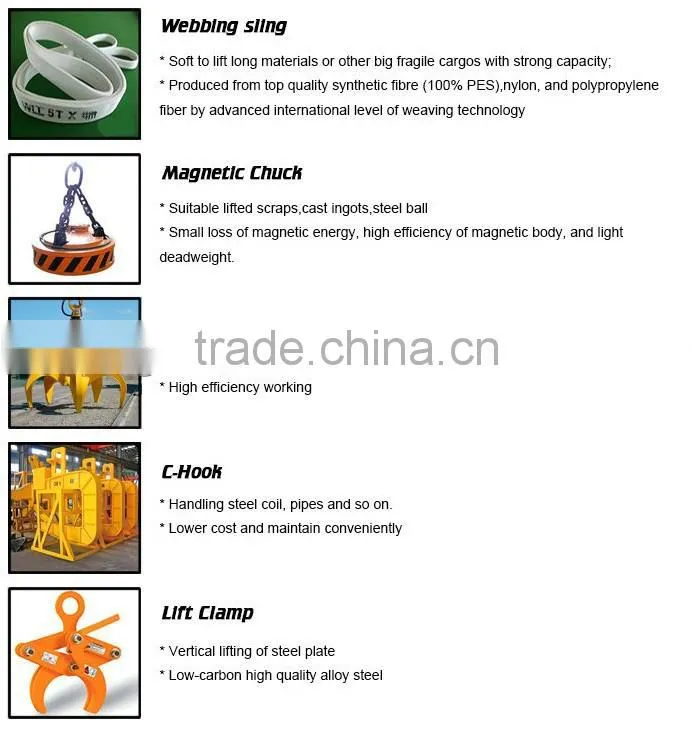

4. Lifting tools required:

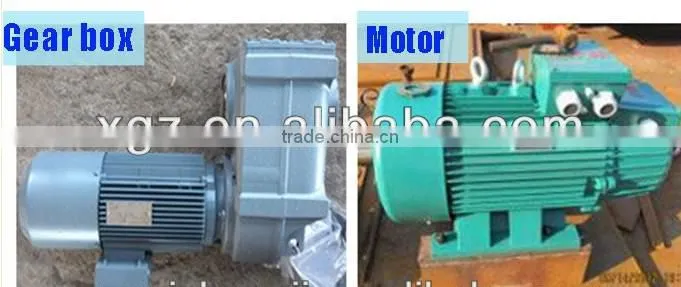

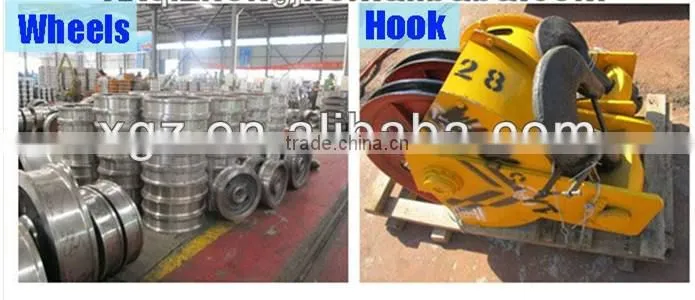

5.Matching accessories:

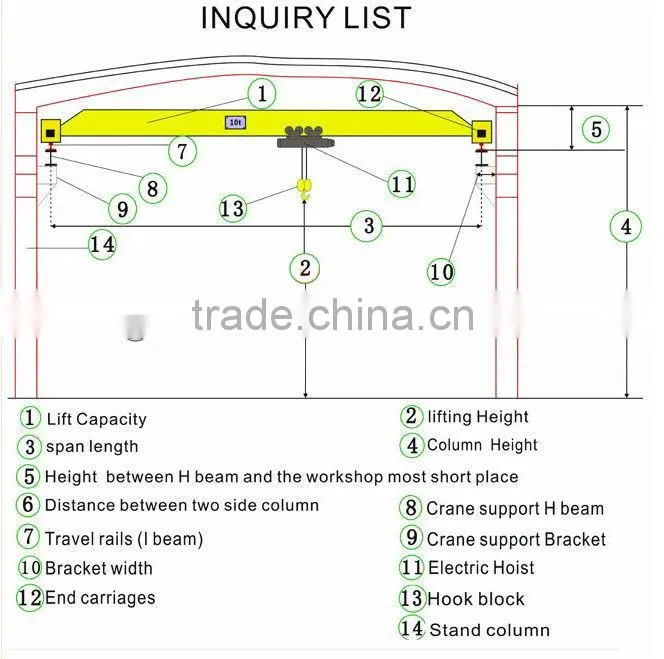

6.If you are in need of Bridge crane,please let me have the following information:

7.Short introduction about our company:

Our company is established in 1996,has been in steel structure building,container house,prefabricated house,related building materials,various matchines for almost 20years,So I am fully confident in supplying you the relavant products.
