Grain Bucket chain conveyor/ rice mill bucket elevator
These units are available in centrifugal and continuous types. Bucket Elevators use an endless chain or belt with buckets attached and can be made in a variety of shapes and sizes for your material handling needs.
Bucket Elevators transfer bulk materials vertically from one location to another. Inlet can be flooded or control fed Volumetric transfer device

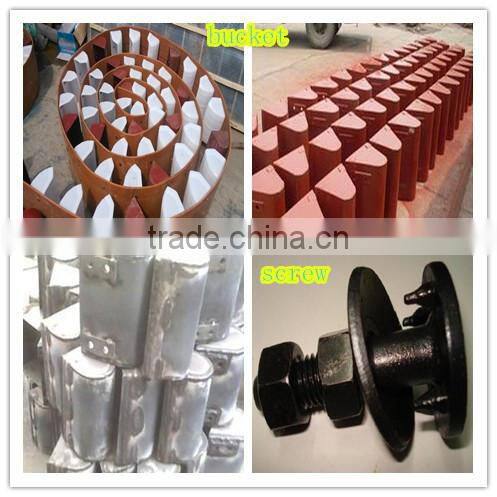

1st part: Top part with the transmission drum is the running device containing hopper and traction belt.
2nd part: Middle part with Chassis is the Motioning device and non-return braking device.
3rd part: Bottom part with tension drum.
There two kind of The transmission device of TD Series type product, YZ type reducer, ZQ(YY) type reducer. It is equipped directly on the head part of main axle which leaves out the transmission platform and coupler. The Heterotypic roller non-return device inside the equipment is reliable.
Technical Reference
| Model | TD160 | TD250 | TD315 | TD400 | ||||||||||||
| Hopper type | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd |
| Capacity (m3/h) | 5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 |
| Hopper width (mm) | 160 | 250 | 315 | 400 | ||||||||||||
| Hopper volume (L) | 0.5 | 0.9 | 4.2 | 1.9 | 1.3 | 2.2 | 3.0 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 |
| Hopper distance (mm) | 280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | ||||||||
| Belt width (mm) | 200 | 300 | 400 | 500 | ||||||||||||
| Hopper speed (m/s) | 1.4 | 1.6 | 1.6 | 1.8 | ||||||||||||
| Max granule(mm) | 25 | 35 | 45 | 55 | ||||||||||||
| Model | TD500 | TD630 | TD160 | TD250 | TD350 | TD450 | ||||||||||
| Hopper type | Q | h | zD | Sd | h | zD | Sd | Q | S | Q | S | Q | S | Q | S | |
| Capacity (m3/h) | 38 | 70 | 58 | 92 | 85 | 89 | 142 | 4.7 | 8 | 18 | 22 | 25 | 42 | 50 | 72 | |
| Hopper width (mm) | 500 | 630 | 160 | 250 | 350 | 450 | ||||||||||
| Hopper volume(L) | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 23.5 | 0.65 | 1.1 | 2.6 | 3.2 | 7 | 7.8 | 14.5 | 15 | |
| Hopper distance (mm) | 500 | 625 | 710 | 300 | 400 | 500 | 640 | |||||||||
| Belt width (mm) | 600 | 700 | 200 | 300 | 400 | 500 | ||||||||||
| Hopper speed (m/s) | 1.8 | 2 | 1 | 1.25 | 1.25 | 1.25 | ||||||||||
| Max granule (mm) | 60 | 70 | 25 | 35 | 45 | 55 | ||||||||||

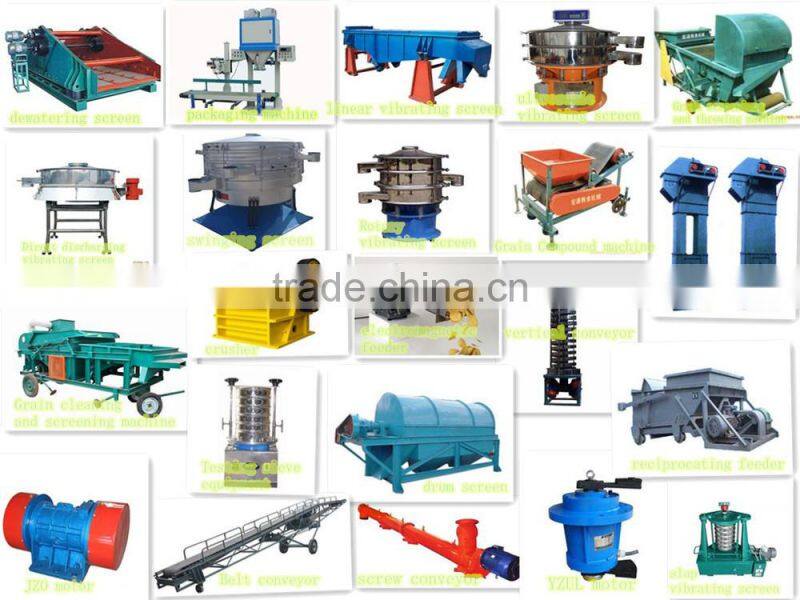

The other main products in our company:
1.What is our product range?
Our company is specialized in manufacturing screening equipment, such as Round Vibrating Sieve, Linear Screening Machine, Laboratory Test Sieve, Ultrasonic Sieving Machine, 450 Type Vibrating Screen Filter, Powder Vibrating Sieve, Granule Sieve Machine, Liquid Vibration Filter, High-Frequency Vibration Filter, vibrating feeder, conveyor system, bucket elevator, grain machine and packaging machine and so on.
2.Which industry does the crane applied to?
Chemical industry, Food industry, Pharmaceutical industry, Metallurgical Industry and so on.
3.What method of payment do you support?
We usually support T/T, L/C or Western Union, and various methods of payment is available.
4.What are the advantages of our products?
1) Reasonable structure.
2) Favorable performance.
3) All goods examined before delivery by 4QC staff.
4) Electricity saving, large capacity.
5) All voltage can be customized, such as 220V, 380V, 415V and so on.
Company information
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, highpressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and highpressure elevator).
Feel free to contact Cathy at any time, the reply will given in 24 hours. You can write down the questions or doubts under the block.
