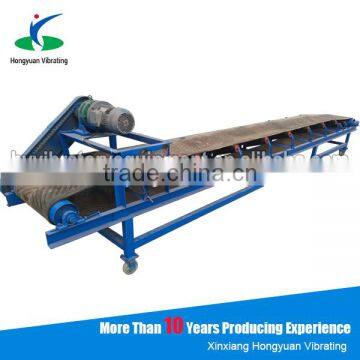

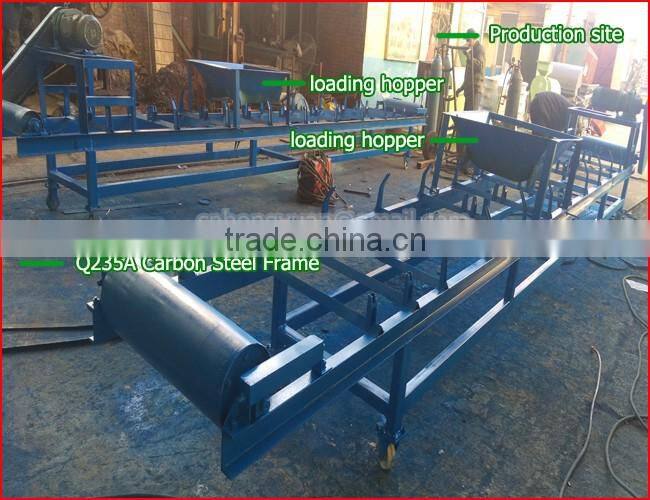

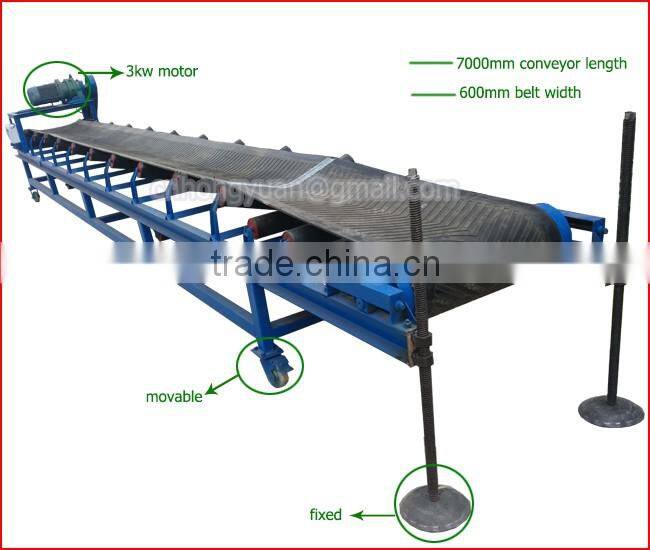

International standard gravel conveying horizontal belt conveyor
International standard gravel conveying horizontal belt conveyor is widely used for bulk or packed materials in industries like metallurgy, coal, transportation, mining, grain etc because of it’s characteristics of large conveying capacity, simple structure, easy maintaince, low cost and wide universality.As per production demand, It can convey the material by single machine or multi machine combined together to make the whole conveying system in horizontal or inclination angle or radians way.

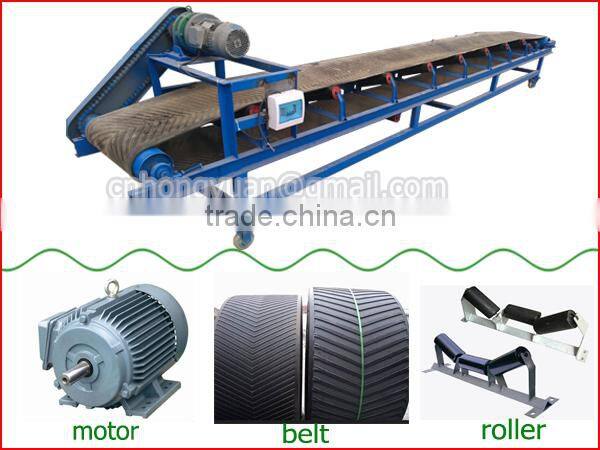

Main Structure of International standard gravel conveying horizontal belt conveyor.
Driving Part: Motor—high speed couplings—reducer---deceleration coupling;
As per demand, the driving part can be installed at the left or right side; There are different motor power from 1.5KW to 13KW, oil cooling electric drive roller with the speed at 0.80/S, 1.0/S, 1.25/S;
Rolling part: There are transimission drum and turunabout drum

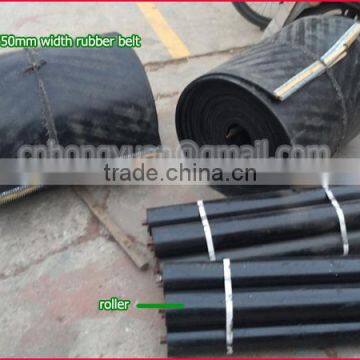

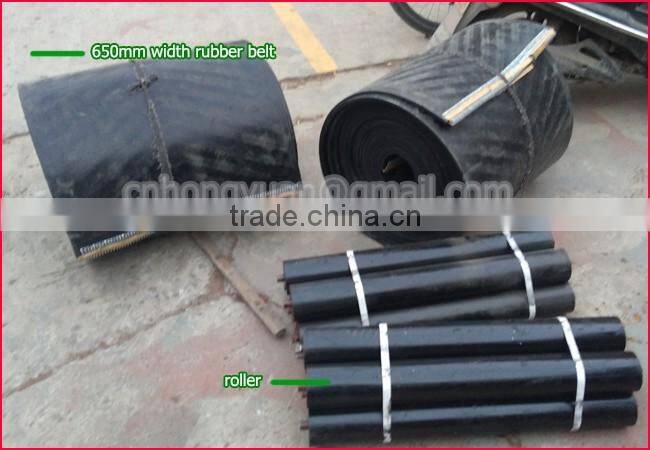

Supporting roller: There are groove types roller, parallel roller, Spherical roller,impact idler;
Discharging part:There are fixed pliugh unloader and electric unloader;
Brake Part: There arebelt brake and roller brake;

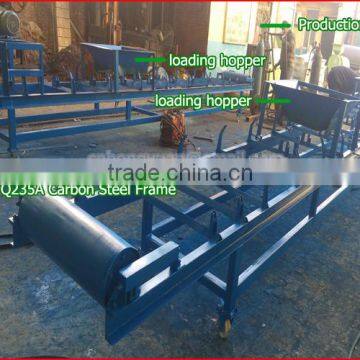

Additional spare parts: machine cover, feeding channel, funnel etc.

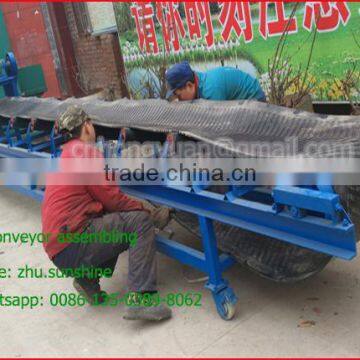

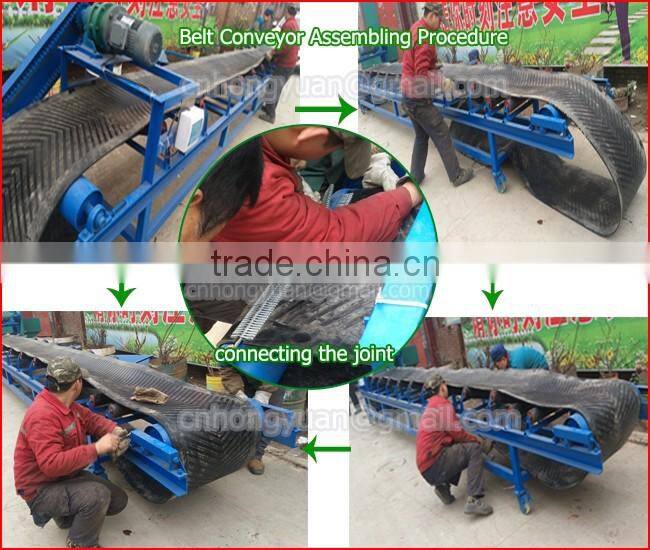

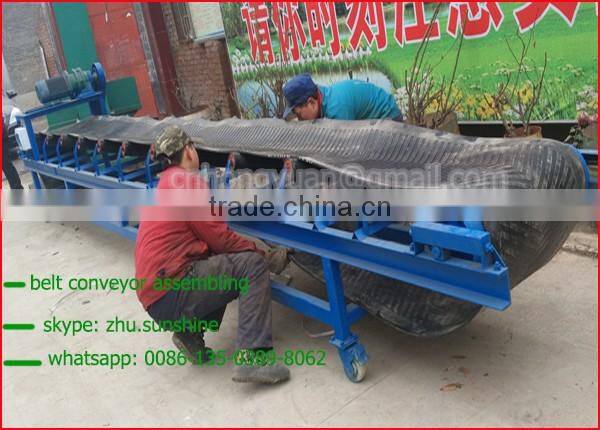

>> Machine Assembling
1. Our engineers will be dispatched to the site for installation guide.
2. Engineer's tele-guide via phone, video, email, etc.
Painting (the color is as per customers' demand)

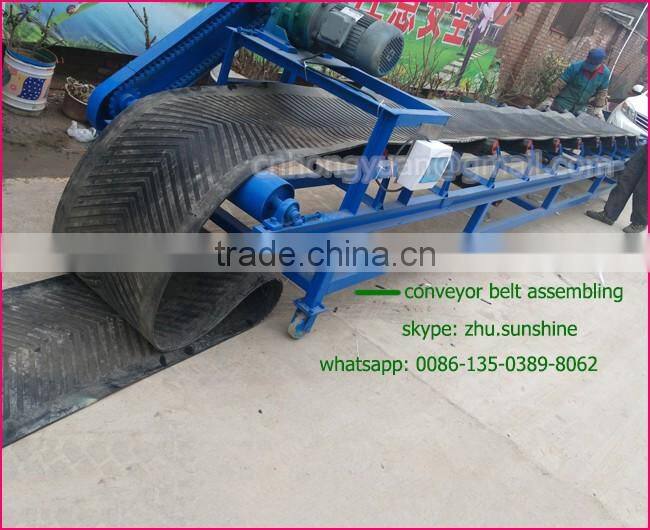

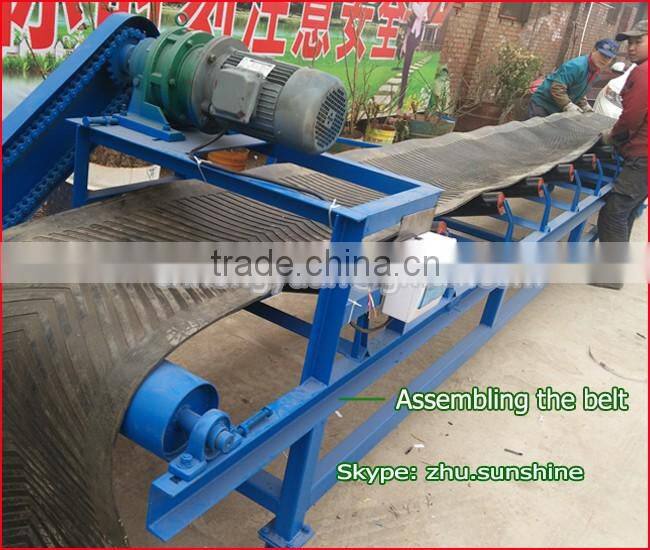

Put the belt on the machine frame
confirm the installation center line and the machine head installation point and remak it on relative position.

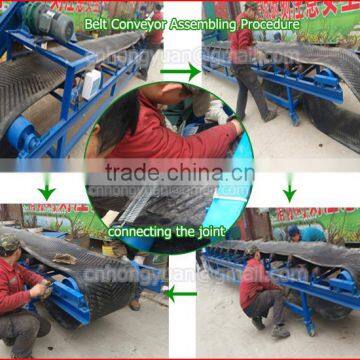

Connecting the belt joint
| Carrier Roller type | Belt Speed(m/s) | Belt Width(mm) | |||||
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Conveying Capacity(t/h) | |||||||
| Groove Rollers | 0.8 | 78 | 131 | ------ | ------ | ------ | ------ |
| 1.0 | 97 | 164 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | |
| 3.15 | ----- | ----- | 824 | 1233 | 1858 | 2528 | |
| 4.0 | ----- | ----- | ------ | ------ | 2202 | 2996 | |
| Parallel Rollers | 0.8 | 41 | 67 | 118 | ------ | ------ | ------ |
| 1.0 | 52 | 88 | 147 | 230 | 345 | 460 | |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
| 1.6 | 84 | 142 | 236 | 368 | 553 | 753 | |
| 2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 111 | |
DY Series Movable Adjustble Height Belt Conveyor (Click to see the details)

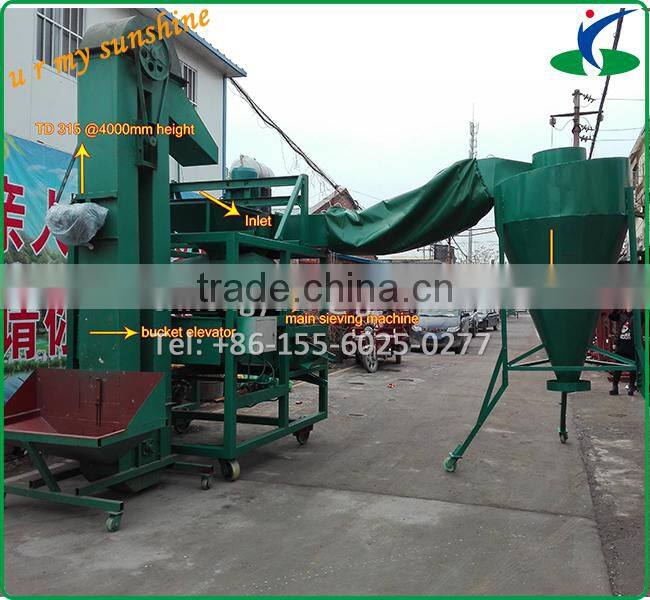

HYL-30 grain cereals cleaning sieving machine (Click to see the details)
Movable Bucket Elevator for granules vertical Lifting (Click to see the details)
Please tell us your need as per the following question on the below table so that provide you the ideal machine on International standard gravel conveying horizontal belt conveyor.
>> Material to be conveyed ?
>> Conveying Distance or Conveyor Length ?
>> Conveying Capacity or Belt Width ?
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China.
We are specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyor, belt conveyor, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image.
24 hours within 7 days for pre sales consultance >> timely technical support from our professional engineers >> professional arrangement for packing and shipping >> Professional guidance for mahcine installation >> 24 hours within 7 days for after sales service.
Contact Us by Tel: +86-155-6025-0277 or e-mail: cnhongyuan@
For more on International standard gravel conveying horizontal belt conveyor.
