vertical mining bucket elevator conveyor / chain conveyors

FOB Price

USD $2,000 - $3,500 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Qingdao Tianjin Shanghai Ningbo Guangzhou as per demand
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Bucket Conveyor	Material:	Other, Carbon steel
Material Feature:	Fire Resistant	Structure:	Chain Conveyor	Load Capacity:	Customized, 470m3/h
Place of Origin:	Henan, China	Brand Name:	yuzhen	Model Number:	NE 15
Voltage:	220/380/415V	Power(W):	it depends	Dimension(LWH):	Customized
Certification:	ISO9001:2008,CE,CCC	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

stretch film inside and fumigation wooden box for outside packing.

Product Description

vertical mining bucket elevator conveyor / chain conveyors

Product Description

vertical mining bucket elevator conveyor / chain conveyors is one kind of vertical lifting machine widely applied for granules, powder, block in mining, construction, coal, cement etc. The max temperature resistance is 250 degree.

vertical mining bucket elevator conveyor / chain conveyors is the new design machine which according to the machine standard rules JB3926-85.

It adopts system of the material automatic feeding, and gravity discharging way. The plate chain is high premium quality and strong alloy steel materials with the feature of Abrasion Resistance and durable.

Main Structure

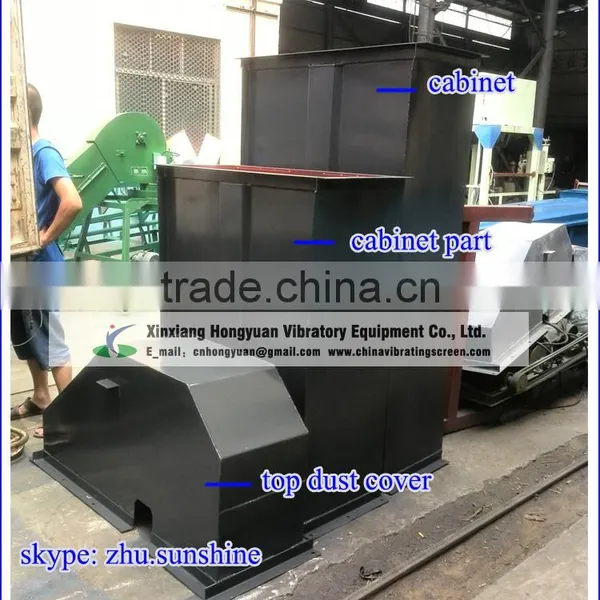

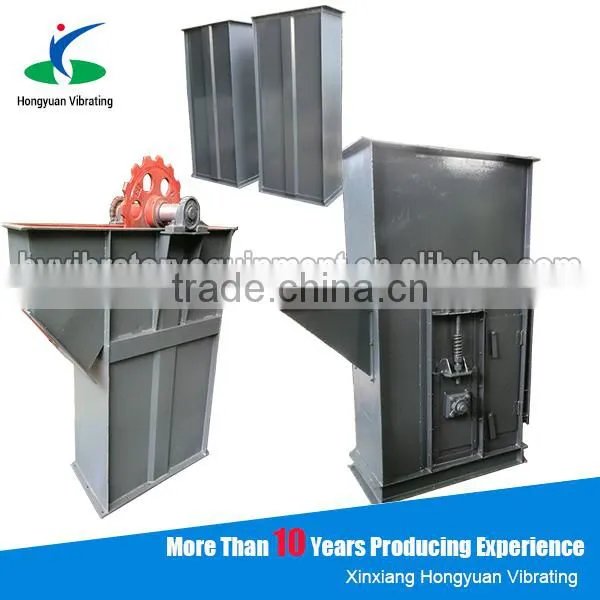

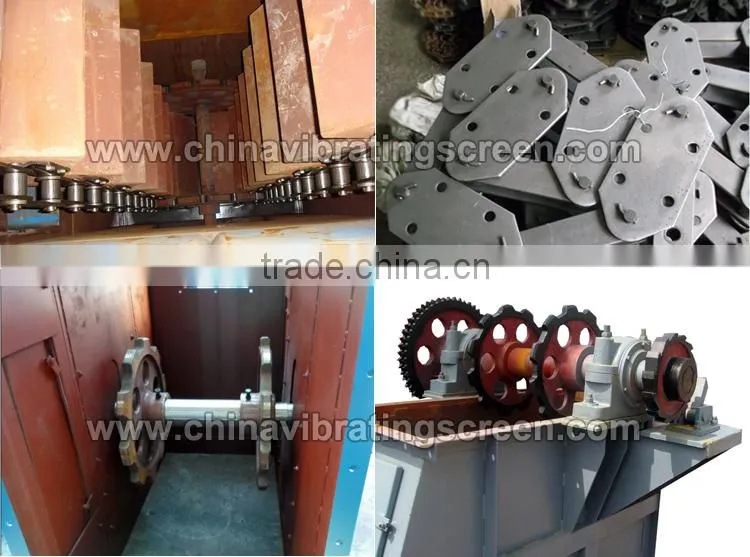

vertical mining bucket elevator conveyor / chain conveyors is made up of operation device, driving device,top part device, middle cabinet case, and down part.

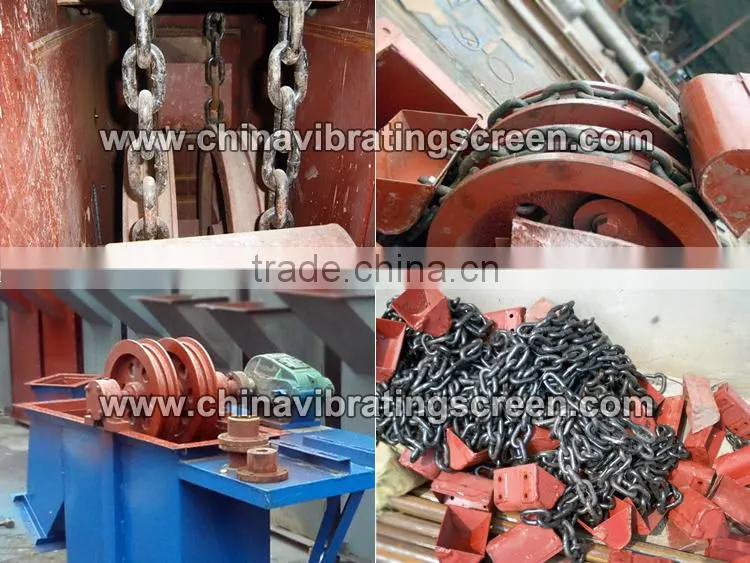

1. The operation device is made up of bucket and plate chain.

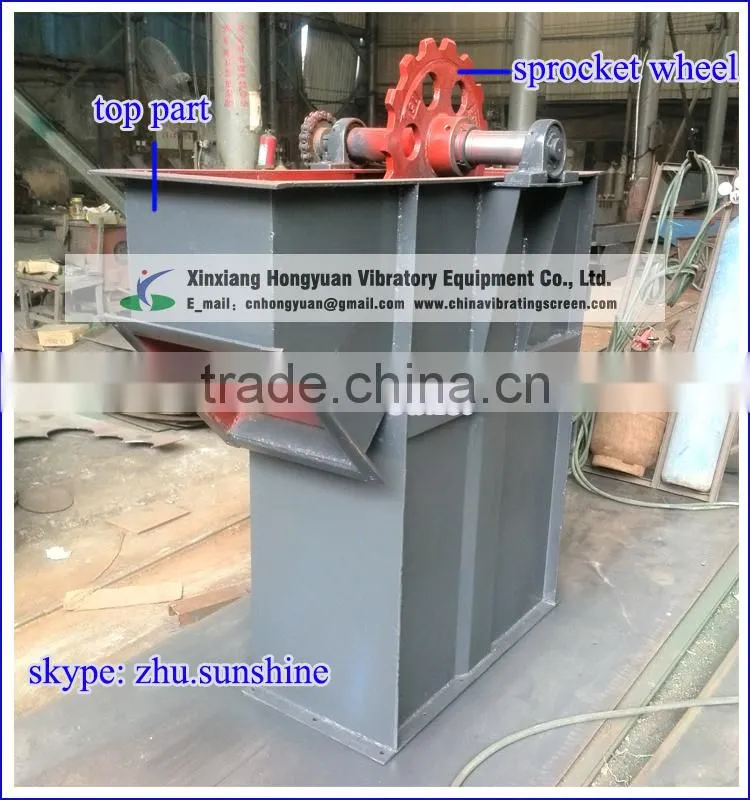

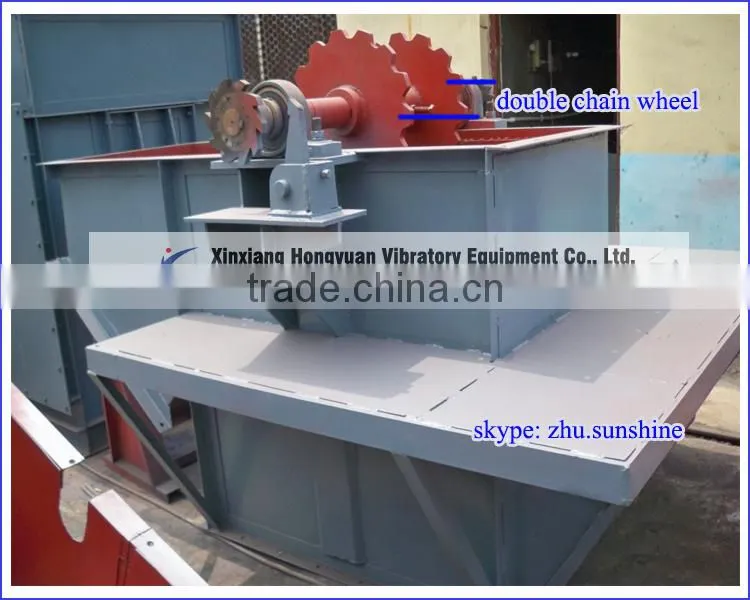

Upper device--It is installed path way and duplex chain, roller brake, and discharging outlet. And the discharging outlet is installed rubber plate which is prevent the material feeding back. Below the model No. NE30 adopts the single row plate chain.

NE50-NE800 adopts the double row plate chain.

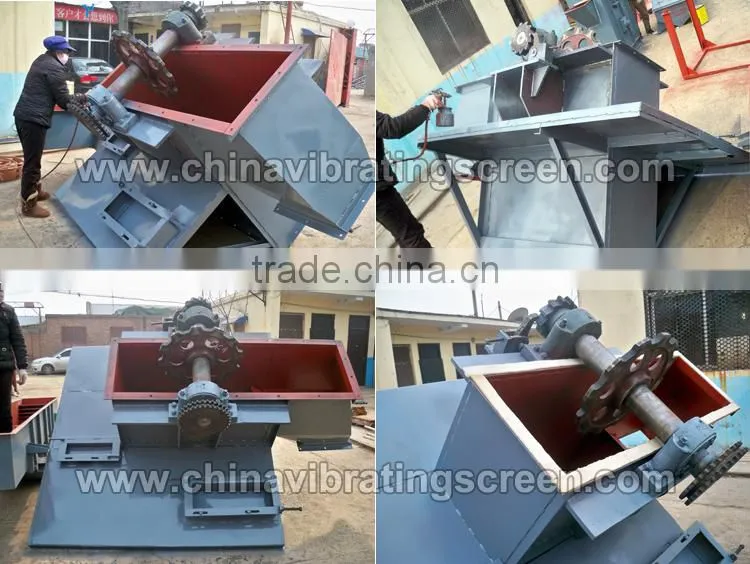

The driving device is made up of multiple drive power(customized). The driving platform is equipped with inspection frame and handrail. It can installed in left or right side.

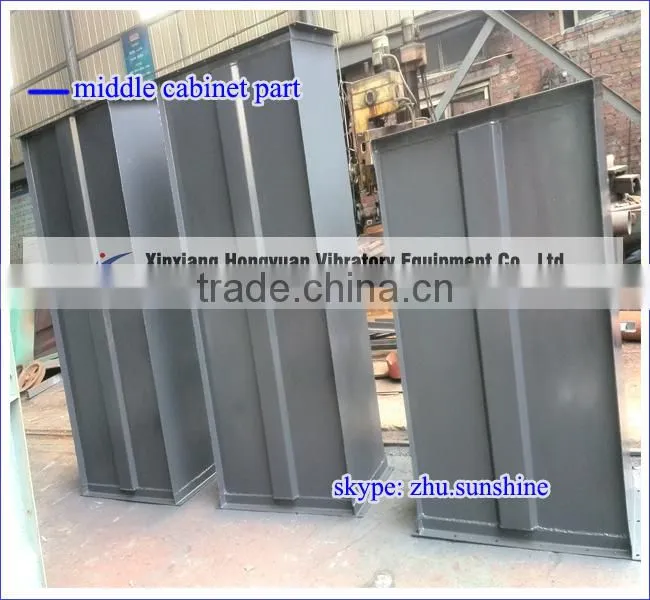

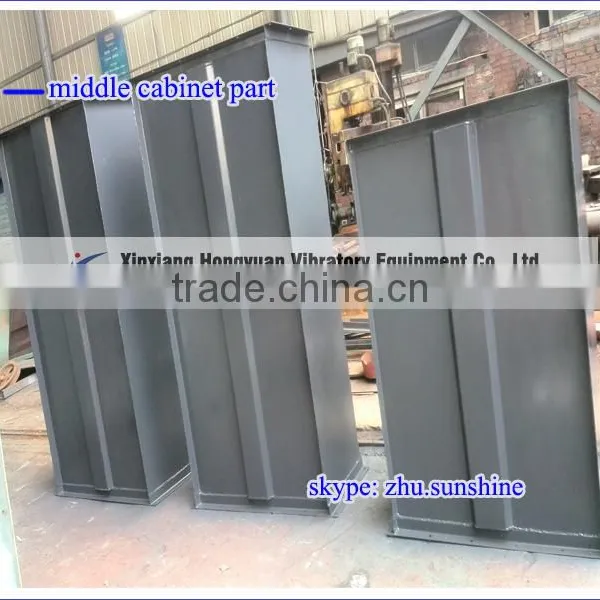

2. Middle caninet case-It is installed the path way with duplex chain inside so as to prevent the chain swing.

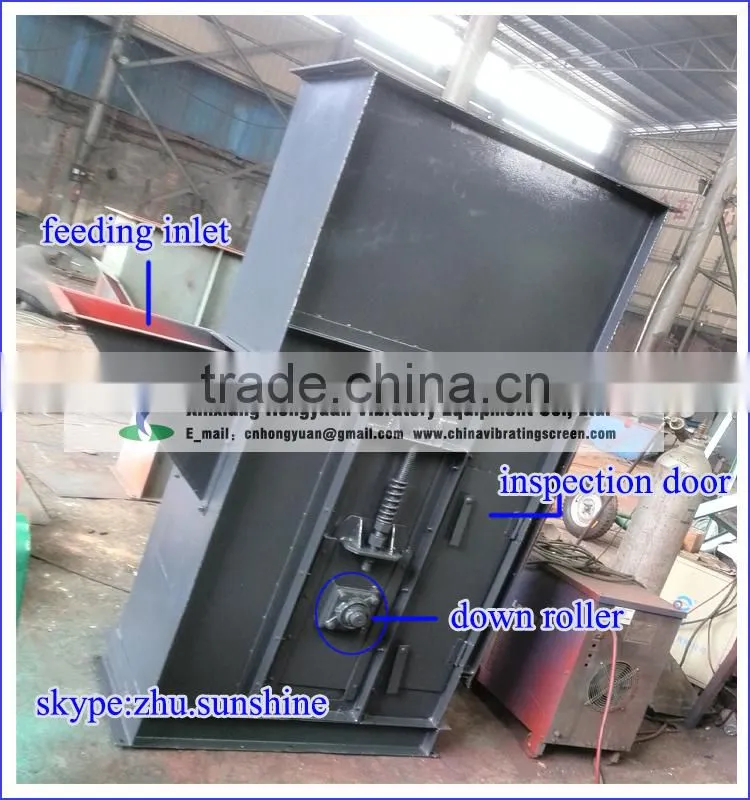

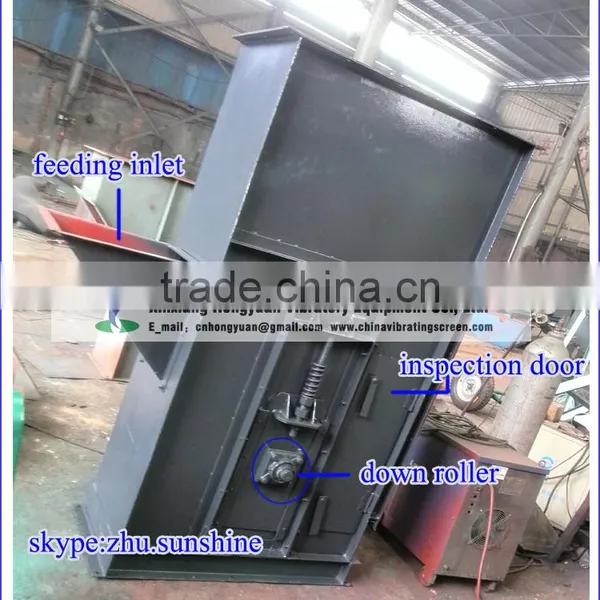

3. Down part--It is equipped with automatic tensioning device.

The NE15-NE50 is equipped with the spring tensioner, and the NE100-NE800 is equipped with heavy hammer tensioner.

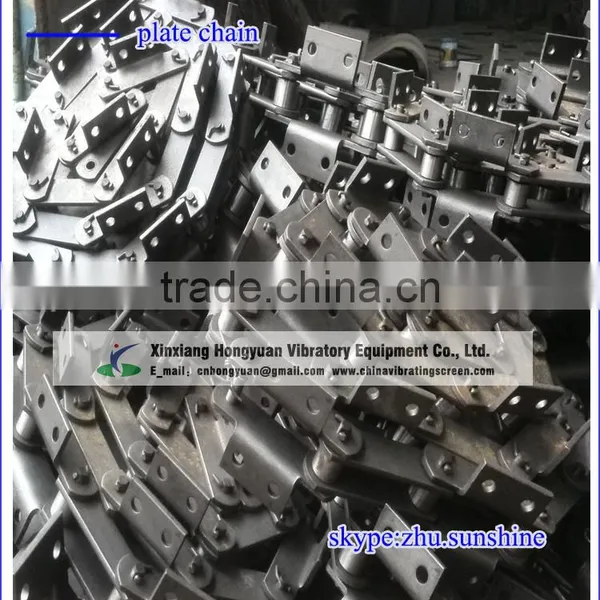

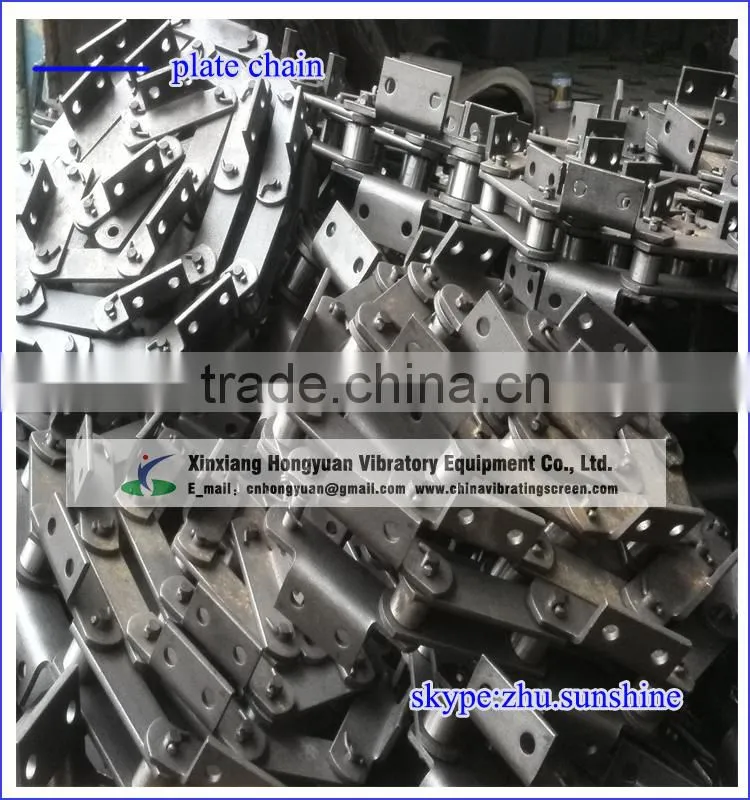

4. The plate chain is adopt 45 # HRC36~42.

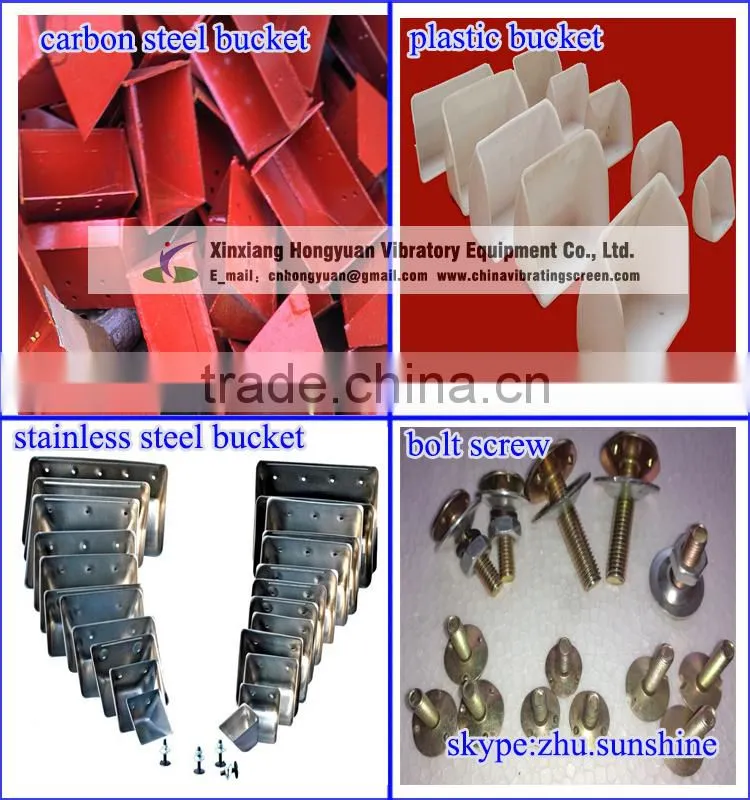

5. Different kinds of bucket and screw bolts.

Working principle

vertical mining bucket elevator conveyor / chain conveyors adopts material flow trough feeding way. when the material feed into the bucket,and plate chain will hoist to the machine top and than automatically discharging the material by the gravity function.

It has the multi model No. from NE15-NE800 which totally 11 categories. Adopts the whole close cabinet type, It has the features of wide application, high capacity, low energy, low chain speed. Hardly material return backe.
With these features it will replace other types of elevator gradually.

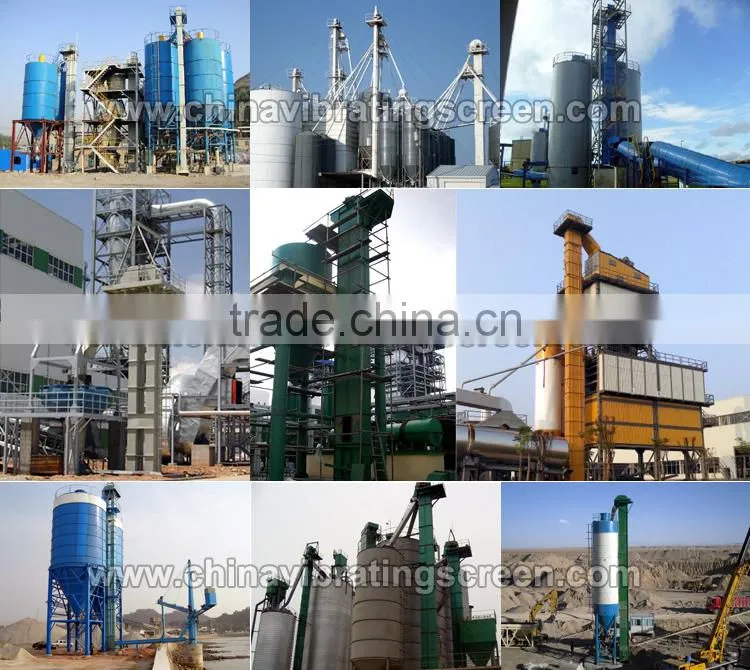

Working Site

vertical mining bucket elevator conveyor / chain conveyors has the wide application in powder,granules,grassive bulks in all kinds of industries like mining, construction, cement, grain silo,sand.etc.

Techinical Data

It has the multi model No. from NE15-NE800 which totally 11 categories.

Model	capacity	bucket			weight of operation device (kg/m)	Max granule size
	m3/h	volume(L)	bucket distance (mm)	bucket speed (m/min)		percentage%
	m3/h	volume(L)	bucket distance (mm)	bucket speed (m/min)		10	25	50	75	100
NE15	16	2.5	203.2	29.8	28	65	50	40	30	25
NE30	31	7.8	304.8	30.1	35	90	75	58	47	40
NE50	60	14.7	304.8	30.1	64	90	75	58	47	40
NE100	110	35	400	31	89	130	105	80	65	55
NE150	165	52.2	400	31	112	130	105	80	65	55
NE200	220	84.6	500	30	134	170	135	100	85	70
NE300	320	127.5	500	30	188	170	135	100	85	70
NE400	441	182.5	600	30	205	205	165	125	105	90
NE500	470	260.9	700	30	223	240	190	145	120	100
NE600	600	300.2	700	30	274	240	190	145	120	100
NE800	800	501.8	800	30	313	275	220	165	135	110

Packaging & Shipping

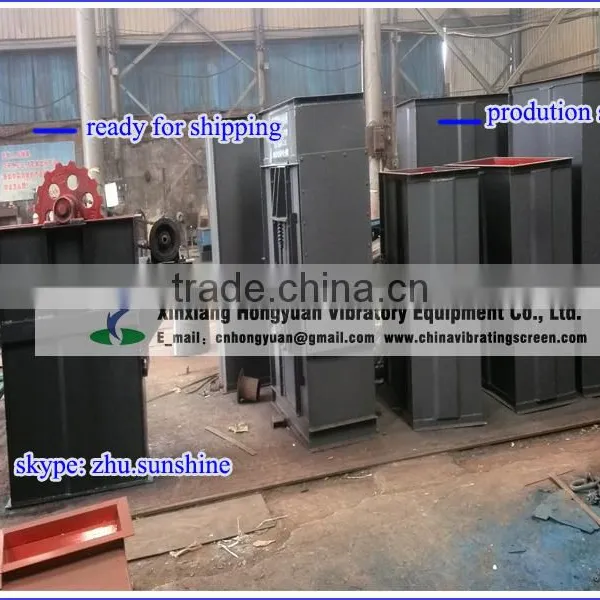

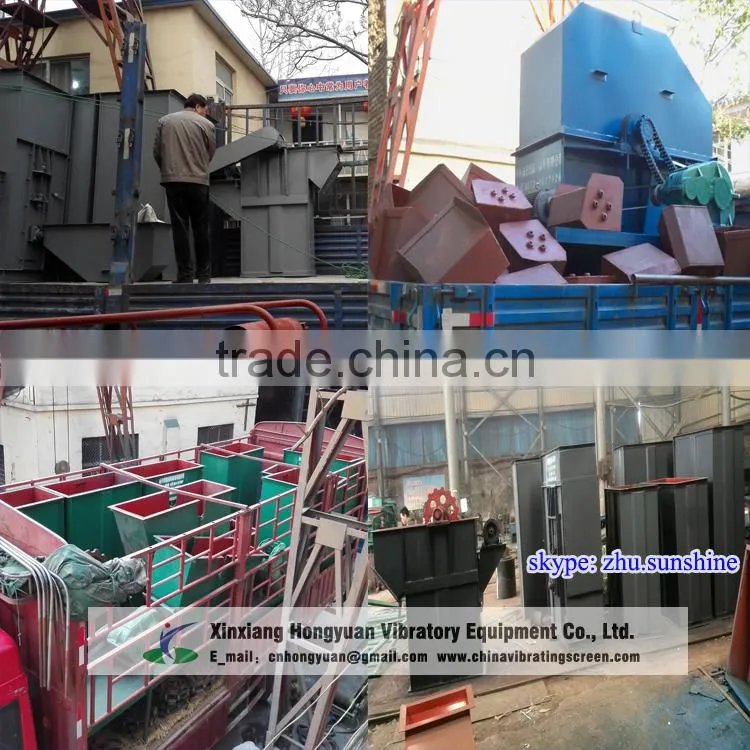

The loading and shipping site of NE series mining industries used bucket elevator
