2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved

2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved thumbnail-1
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved thumbnail-2
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved thumbnail-3
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved thumbnail-4
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved thumbnail-5
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved thumbnail-6
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved photo-1
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved photo-2
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved photo-3
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved photo-4
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved photo-5
2016 Hot Sell Wood Sawdust Continuous Charcoal Producing Stove With ce Approved photo-6
US$ 7,865 - 18,692 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Flow
Application:
Making Charcoal Powder
Contact Supplier Request Quote Chat Now
Gongyi Xiaoyi Mingyang Machinery Plant
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo and any ports in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Air Flow
Application Making Charcoal Powder
Place of Origin Henan, China
Brand Name Mingyang
Model Number THL
Effective Volume 2.9*4*5
Dimension(L*W*H) 4800*1800*3200mm
Weight 11.2T, 11.2-11.5t
Voltage 380V
Power(W) 7.22kw
Certification ISO CE, ISO&CE
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved

Why should you choose us?
1, Our factory has been set up for 28 years, and we have a lot of professional technological people to service for you at any time;
2, We can design and manufacture machine for you according to your special requirements;
3, You can find the best price from here, because we are the factory, and we are factory directly sales;
4, Our company will free of charge to arrange technical personnel to training you until you have no question about it;
5, We promise you timely and effective service once you need us.

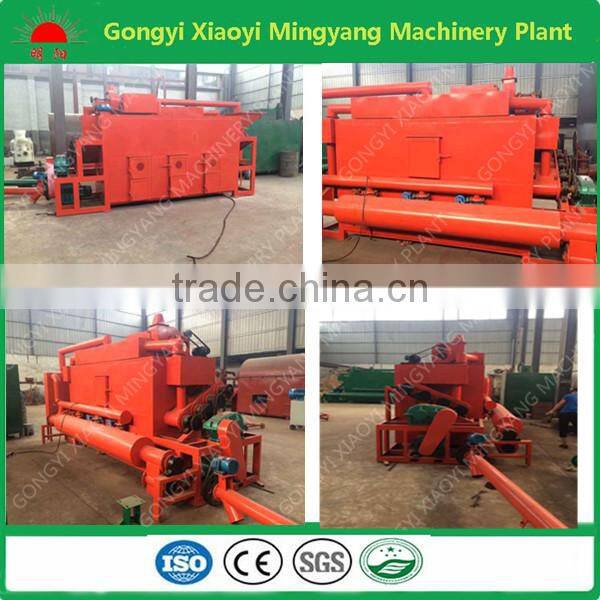

continuous charcoal producing stove

The general intriduction of  continuous charcoal producing stove

The normal production of continuous charcoal producing stove is 120-150kg/h and we will design it according to customers’ requirement. Its core technology will not change, raw material→drying→carbonization. After drying, the production of sawdust and activated carbon is 3:1, the water content of sawdust is 12% and at last we can get the carbon rod or activated carbon after deep processing.

2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved

Technology data of continuous charcoal producing stove:

  • power :7.22kw ( main machine: 5.5kw, fan 1.5kw+0.22kw)
  • capacity :150-180kg/h
  • Package dimension:4800*1800*3200mm
  • Net/Gross weight:11.2/11.5ton
  • temperature of inner stove:480-600 degree
  • Raw material requirement :sawdust, Size: 3-5mm, moisture:8-12%
  • energy consumption:35-40kg firewood per shift
  • Electricity consumption:7.22kw/h
  • motor style :5.5kw Moment speed regulating motor
  • Used for: Firecracker production, active carbon processing, certain soil improvements by scientific research unit.
  • Rotary speed :1450r/min

 2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved

Working process of  continuous charcoal producing stove

primary screening sawdust of different sizes to eliminate bigger impurity, then drying the materials to be 8-12% water content, and make carbonization in the end

 2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved

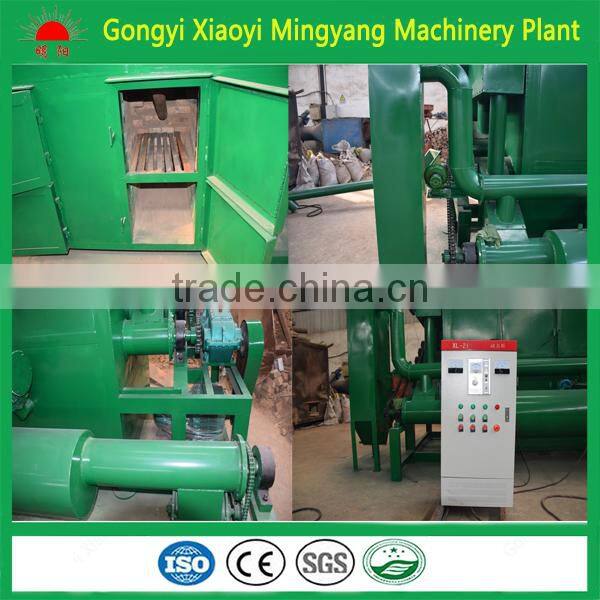

The main structure of  continuous charcoal producing stove

This model machine consists of heating parts, carbonizing parts,  cooling parts,

gas recycle parts,

smoking purification parts, and controlling parts.

Heating parts

includes three heating room (for heating the stove), furnace body and heat

keeping layer (it is made of the heat insulating material, used for keep the

heating) and the drought fan

Carbonizing parts

consist of four carbonizing tubes, Both of them are made of the heat resistance

 thermal steel, under the drive of the machine, the sawdust will be delivery to the

tube1, when the sawdust reach to the end of the tube1,it will turn around to the

tubes2, and so on,  after four tubes carbonization, the sawdust will become

charcoal powder.



Gas recycle parts

When during the process of carbonizing, there will be some smoke

(can be burning)

the smoke can return to the furnace through tube for purifying, after purification ,

the gas recycle tubes can be flow into the heating room of the main furnace for

 heating the

machine again.

Smoking

purification parts

( in this machine, there are  two purification  tank, the first one to purify the

smoking ( can not burning ), and the other one are used to purification the

gas smoking when the working process, The smoking through the purification

 system.will

become water vapor, and it will not pollute the air.

Cooling parts

in the back side of the machine, there is one tube for cooling the hot charcoal

 powder, so we can get the charcoal powder directly.

Controlling parts

the whole machine we will equip one electrical control box to control the

three electrical motors.

  2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved



The advantages of  continuous charcoal producing stove

  • Sawdust carbonization machine is adopted international advanced technology to increase the carbonization ratio from 80%to 99%,
  • This novel design product shows the features of high efficiency ,energy-saving,easy to operate and maintain ,low investment and high revenue,environment protection and so on.It is an ideal equipment to carbonize.
  • The machine can working 24hours,and it will increase the output of charcoal powder, it is popular in the European market.

2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved

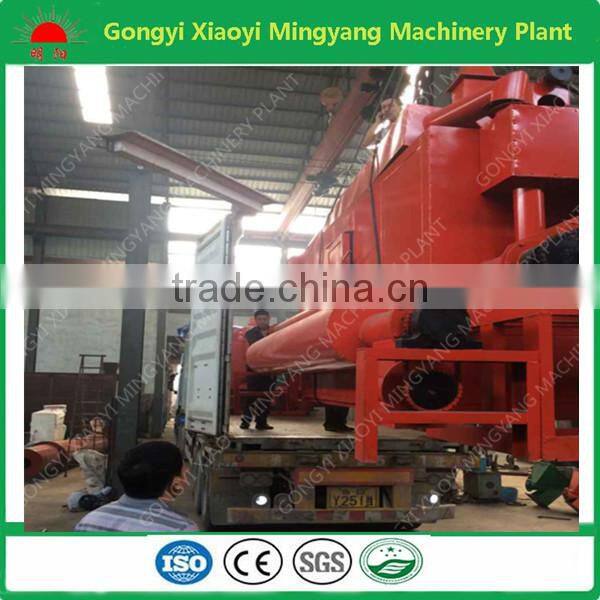

Packaging & Shipping

 2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved

2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved

Our Services

  2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved





Company Information

Gongyi Xiaoyi Mingyang Machinery Plant
is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.

2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved.

2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved

After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc

2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved

Buying Guides

1. Contact me first and make a deal;

2. Sign order and then pay the down payment;

3. Receive the down payment, we arrange our factory to produce the machines;

4. After finished the manufacturing, we test, examine the machines;

5. The last step is to transport the machines to your country port. The whole line is finished.

2016 Hot sell wood sawdust continuous charcoal producing stove with ce approved



Contact information

If you need any information, please kindly contact me, i will give you reply soon

Gongyi Xiaoyi Mingyang Machinery Plant
Sales Manager: Winnie Sun
Mobile: 0086 15225168310
Skype: winniesun1496
whatsapp 0086 15225168310
wechat : 0086 15225168310
