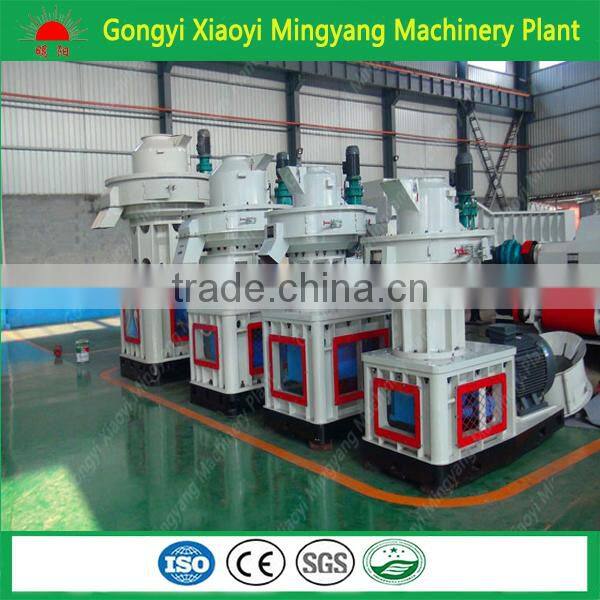

Hot sell CE approved ring die wood pellet making machine

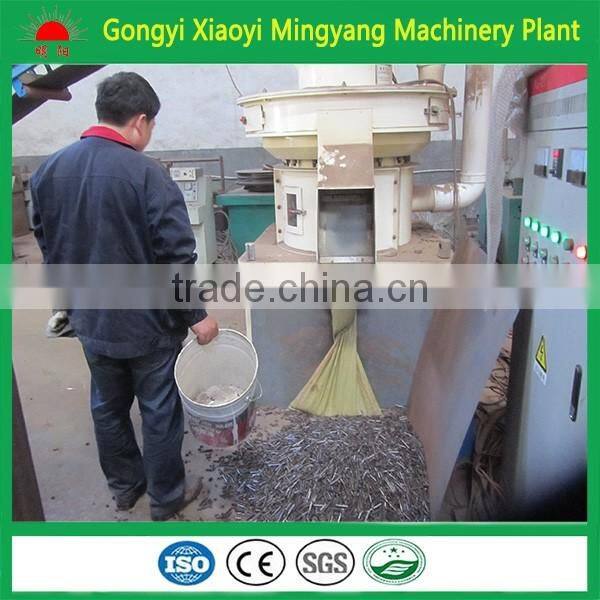

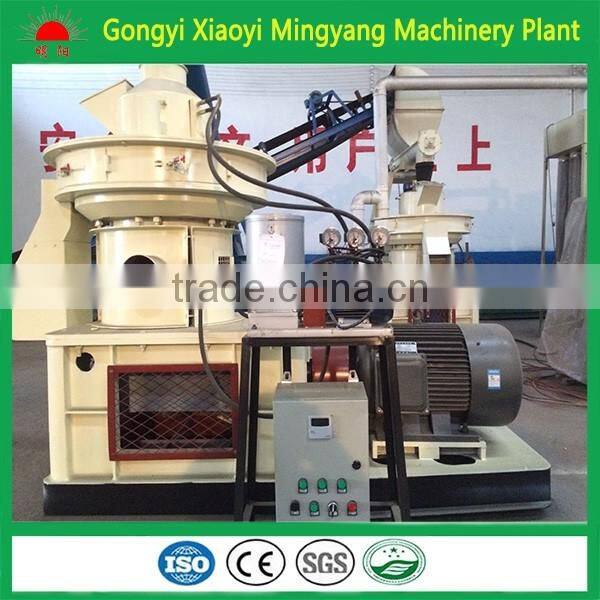

Description of the ring die wood pellet making machine:
This ring die wood pellet making machine is our initiative product in China through meticulous, research and development. And this machine with the Special design, rational structure, low power consumption and high efficiency, sturdy and durable, it achieves combining the advantage of both flat die pellet machine and horizontal ring die pellet mill and becomes the real professional pellet machine that is used to the materials with low adhesiveness and low shaping, such as the rice husk, sunflower husk, peanut shell and other fruit shell, branch, trunk, bark and other wood waste, a variety of crop straws, household waste, rubber, cement, ash and other chemical materials. is widely used in the biomass-energy fuels plant, power plant, wood processing plant, MSW processing plant, fertilizer plant, chemical plant etc. It is the ideal pressing shaping equipments with low investment and high profit.
The feature of the ring die wood pellet making machine:
1. Vertical die, feeding vertically; No arching of raw materials, easy for heating dissipation;
2. Die fixed, rollers rotating, better for even material distribution;
3. Independent lubrication; high pressure filtration, clean and unblocked;
4. Independent and frequency changeable cutting device ensuring high pelletizing rate;
5. The key parts are made of superior alloy steel with heat treatment by German vacuum furnace, so its service life is prolonged by 5-7times;
6. The machine with the automatic lubricating system that the grease is injected and filtrated automatically, which can ensure the long time working without stop;
7. The dust and cooling system that can reduce the dust during it working and improve the working environment.
Main data of the ring die wood pellet making machine:
Model |
Capacity |
Power |
Size of Finished pellets |
Weight |
Size |
HKJ-350 |
0.4-0.8 t/h |
35kw |
4-12 mm |
2.8ton |
2000*1000*1380 mm |
HKJ-450 |
0.8-1.0 t/h |
55kw |
4-12 mm |
4.2ton |
2200*1000*1580 mm |
HKJ-550 |
0.8-1.2 t/h |
75kw |
4-12 mm |
4.8ton |
2300*1000*1780 mm |
HKJ-560 |
1.0-1.5 t/h |
90 kw |
4-12 mm |
5.8ton |
2600*1300*2300 mm |
HKJ-650 |
1.5-2.5 t/h |
160 kw |
4-12 mm |
6.5ton |
2900*1300*2400 mm |
HKJ-880 |
3.0-4.0 t/h |
315 kw |
4-12 mm |
12.6ton |
3750*1650*3250 mm |
Raw material can be used to make the pellets:
To make the pellet, the material can be sawdust, rice husk, sunflower seed huak, peanut shell and other fruit shell; branch, trunk, bark and other wood waste; a variety of corp straws, rubber, cement, ash and other chemical materials. This type pellet mill machine is widely used n the biomass-energy fuels plant, power plant, wood processing plant, fertilizerplant, chemical plant etc. It is the ideal pressing shaping equipments with low investment and high profit.
PS:
The raw material size should be within 3-5mm;
The raw material moisture content should be within 15-18%.
Final pellets:

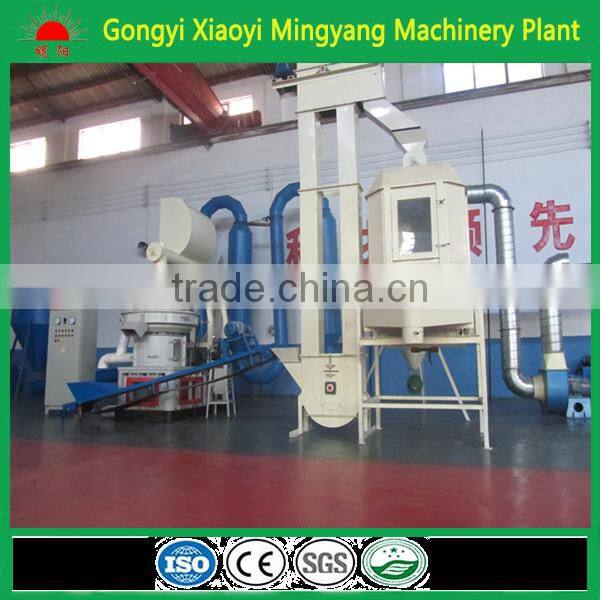

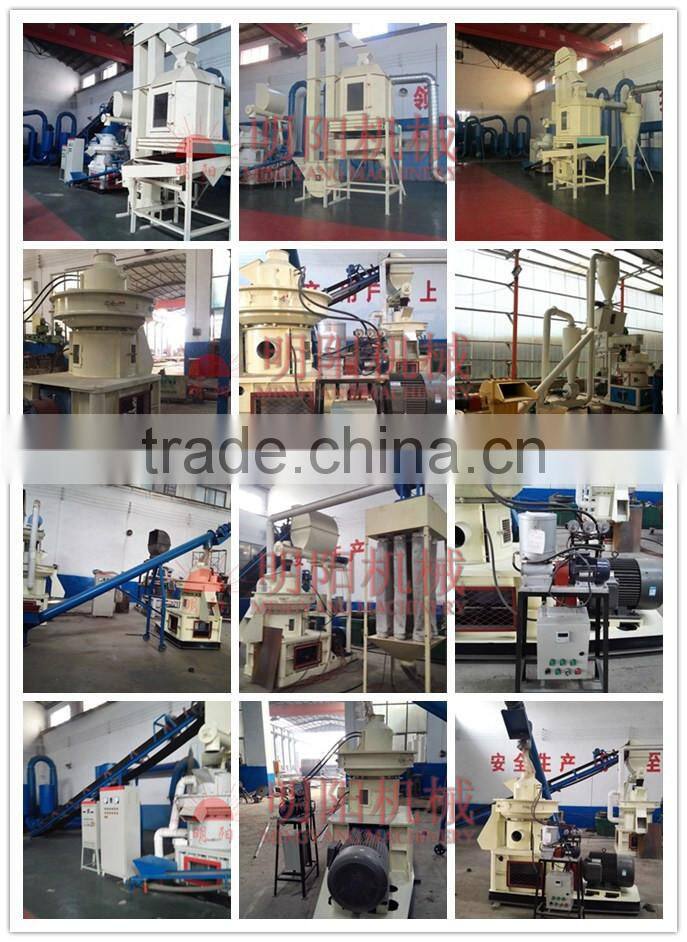

Product line of the ring die wood pellet making machine:
1. If your raw material is in big size, choosing one suitable crusher is avaiable;
2. If your raw material moisture content is over 15-18%, you can choose one dryer to dry it;
3. The you can choose one pellet machine to make pellets, you can choose the pellet machine according to your capacity;
4. This setp is packing the pellet. If you need to pack the pellet in bags, please tell me the how much kilogram per bag, and then we can choose one suitable packing machine for you.

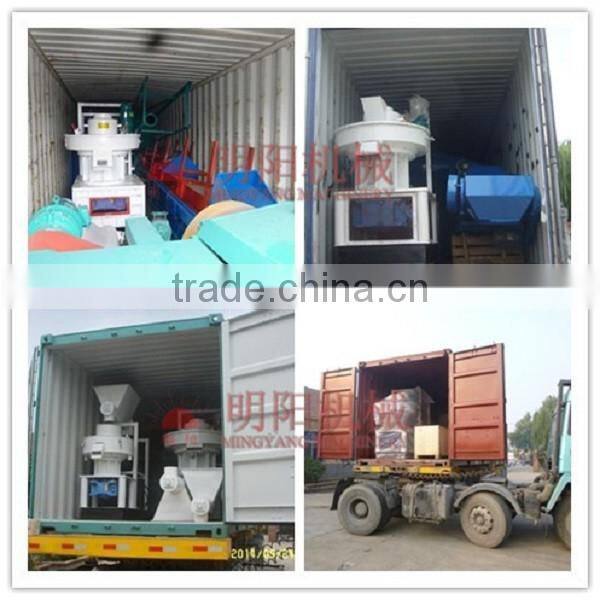

Packing pictures of the ring die wood pellet making machine:
For packing one set ring die wood pellet making machine, we pack it in the standard wooden case;
For packing more sets ring die wood pellet making machine or the product line, we pack them in the standard container.
Gongyi xiaoyi Mingyang Machinery Plant is located in Zhengzhou City,which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipment and related machinery. After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. Our products are widely accepted in both domestic and world markets, and also are exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam,etc. We have lots of experience to export and cooperate with all over the world, and we also sincerely welcome you to come to our factory to visit and watch our products and factory.
We have many kinds of certifications, famous in domestic and overseas, such as ISO Approved, CE Approved, SGS, BV and other certifications in our country. Such as Alibaba certifications, Made-in China, etc. You can find our factory and watch our products in many websites, We win in the strength, win in the quality and win in the service. This is why our clients choose us.
1. Pre-sale service: according to your special needs, design and manufacture products for you, provide you with project design, process design, purchase program.
2. On sale: accompany you to check the performance of the machine.
3. After-sale service: we will send engineers to install the equipments to put them into use as soon as possible, commissioning and training operators on site.
1. Contact me first and make a deal;
2. Sign order and then pay the down payment;
3. Receive the down payment, we arrange our factory to produce the machines;
4. After finished the manufacturing, we test, examine the machines;
5. The last step is to transport the mahcines to your country port. The whole line is finished.
Sales Manager: Ms. Bella Ren
Cellphone: 008615039052281
Skype: bella616919
Wechat: 008615039052281
Whatsapp: 008615039052281

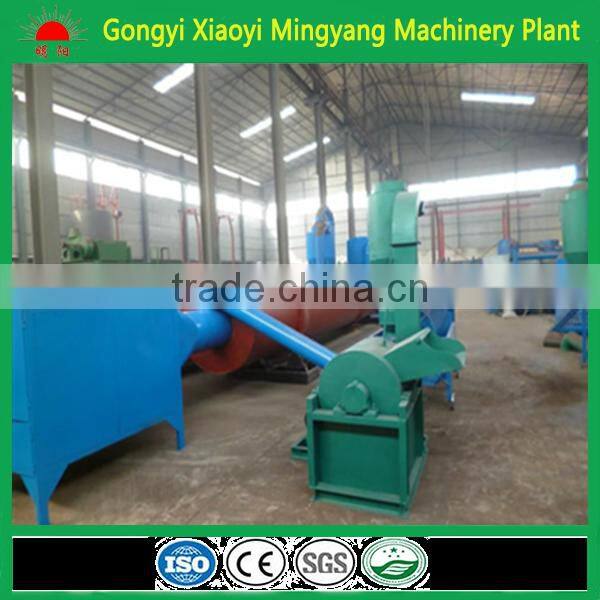

Related machine for making the wooden pellet product line:

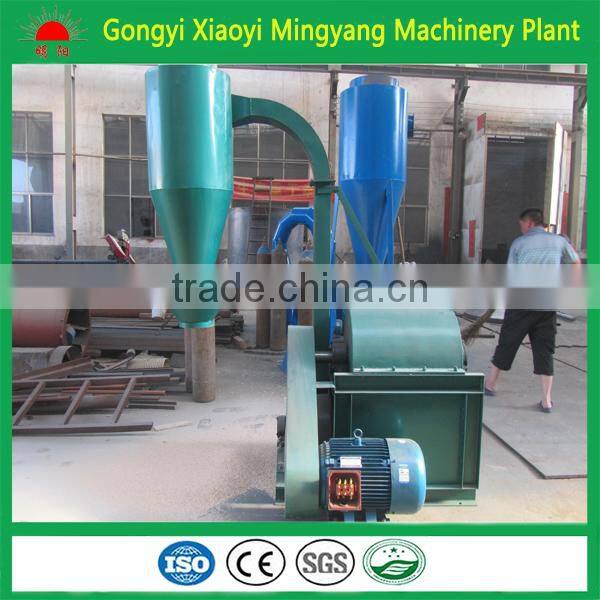

1. Hammer mill crusher:
2. Sawdust dryer machine
