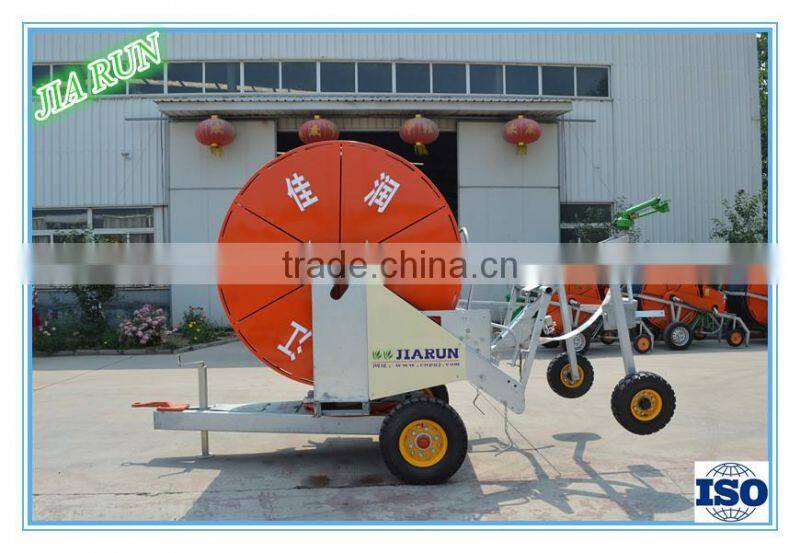

Factory Direct Sale Long Spray Distance Irrigation Spray

1.PE water pipe
Diameter: 75mm,length: 200m,burst pressure >2.0Mpa,tensile strength >16.5Mpa,service life: 15 years.
The PE pipe is a kind of high-tech products, one end of it is connected on the reel, and through the horizontal axis to water supply,the other end is connected with the sprinkler car.

2.Italy-imported Sime 10134 model spray gun

Long-distance spraying,good atomization effect,more stable and durable.

3.Digital speedometer of liquid crystal

In the process of irrigation,this device can accurately show the current layers of PE-pipe and the recycling speed of the sprinkler car.By controlling the recycling speed,adjust the amount of irrigation,achieve precise irrigation.
So it is very convenient for the user operating the machine,raise the use efficiency of the sprinkler, and it is advantageous to the irrigation plan formulation and implementation.

4.Impact type water turbine
Rotate speed:1050 r/min,with functions of automatic speed control.

5.Multi-function two-speed gearbox transmission

It is the control system of the sprinkler irrigation machine.

6.Automatic arrangement of PE pipe guide device

It is about a thread guide rod and can shift the drive, it can ensure that the PE pipe automatic recovery, each layer are volume very neatly.

7.Speed compensation mechanism

Through the drive mechanism automatically adjust the water turbine opening,compensation the speed change of the reel rotating line,when at a constant speed, then locking the five-star nut.

8.Automatic parking safety device

It can realize the transmission system of on-off, brake, variable speed, safely and quickly recycle, automatic stop function.

9.Rack

Welded by rectangular pipe,good rigidity,all structures are processed by hot dip galvanized, with good anticorrosion performance,also it can rotate 360 degrees.

10.Reel

Exclusive use pickling, phosphating, high temperature treatment process of the bake lacquer and acrylic decoration process, to ensure durable, do not fade, beautiful and high-grade.

11.Sprinkler car

Track width adjustable and can be equipped with heighten rack(irrigation tall crops).

Product main parts
1.Hose reel
2.Crankset
3.PE-pipe
4.Drive chain
5.Front prop
6.Chassis
7.Rotary support positioning pin
8.Rotary supporting
9.Tire half shaft
10.Inlet tube
11.Spray gun

Product main parts
12.Sprinkler cart
13.Balance bracket
14.Locking lever
15.Traction lever
16.Shovel
17.Shovel positioning pin
18.Closing lever
19.Induction lever
20.PE-pipe arrangement chain
21.Pressure gage
22.Fertilizer device

Product main parts
23.Water turbine
24.Triangular V band
25.Gear lever
26.Gearbox
27.Machine cover
28.Digital speedometer
29.Reciprocating screw
30.Pipe arrangement device
31.Lead screw slide block
32.Five-star nut
33.Speed control handle

Advantages of irrigation spray

Jiangsu Jiarun Sprinkler Irrigation Equipment CO.,LTD is located in Xuzhou City,Jiangsu Province.Our company was specialized in irrigation machine research,development,production and sales for 6 years.
And our company has rich experience in technology, advanced production testing equipment, stable and reliable product quality, perfect after-sales service.
Our company has always been adhering to the rigorous work attitude and strict product quality testing, equipped with Amercia, Israel imported accessories, ensure the Jiarun sprinkler irrigation products of higher quality and got good reputation in worldwide market.Also,our company has obtained a number of national patent technology.
