Help Center75mm Pipe Diameter 300m 400m 500m Pipe Length Agricultural Farming Reel Irrigation Equipment System
Related Products
-
Irrigador de Carrete Para Riego Agrícola Con Turbina de AguaNegotiableMOQ: 1 Piece -
Irrigador Por Carretel Com Turbina de Água | Ideal Para Áreas Irregulares de 20–40 ha | Sem Energia ElétricaNegotiableMOQ: 1 Piece
-
JP75-500 Traveling Hose Reel Irrigation Equipment for Farming LandNegotiableMOQ: 1 Piece
-
JP75-400 Agricultural Hard Hose Sprinkler Irrigation MachineNegotiableMOQ: 1 Piece
-
Automatic JP90-300 Hose Reel Sprinkler Irrigation System Water Turbine DrivenNegotiableMOQ: 1 Piece
Technical Specifications
| No. | Item | Unit | JP75-300 | JP75-400 | JP75-500 | JP90-300 | JP90-400 | JP90-450 |
| 1 | PE pipe diameter | ϕmm | 75 | 75 | 75 | 90 | 90 | 90 |
| 2 | PE pipe length | m | 300 | 400 | 500 | 300 | 400 | 450 |
| 3 | Inlet working pressure | Mpa | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 |
| 4 | Nozzle pressure | Mpa | 0.25-0.5 | 0.25-0.5 | 0.25-0.5 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| 5 | Nozzle diameter | ϕmm | 16-22 | 16-22 | 16-22 | 20-26 | 20-26 | 20-26 |
| 6 | Nozzle flow rate | m3/h | 13-38 | 13-38 | 13-38 | 17-52 | 17-52 | 17-52 |
| 7 | Rain gun range | m | 27.6-43 | 27.6-43 | 27.6-43 | 35-52 | 35-52 | 35-52 |
| 8 | Spray width | m | 47-74 | 47-74 | 47-74 | 60-90 | 60-90 | 60-90 |
| 9 | Interlayer velocity difference | % | ||||||
| 10 | Precipitation | mm | 8-50 | 8-50 | 8-50 | 8-50 | 8-50 | 8-50 |
| 11 | Nozzle type | / | PYC50 | PYC50 | PYC50 | PYC50 | PYC50 | PYC50 |
| 12 | Nozzle cart wheel distance | mm | 1,300-2,800 | 1,300-2,800 | 1,300-2,800 | 1,300-2,800 | 1,300-2,800 | 1,300-2,800 |
| 13 | Nozzle cart height | mm | 1,300 | 1,300 | 1,300 | 1,300 | 1,300 | 1,300 |
| 14 | Cart climbing grade | % | 20 | 20 | 20 | 20 | 20 | 20 |
| 15 | Traction height | mm | 300-500 | 300-500 | 300-500 | 300-500 | 300-500 | 300-500 |
| 16 | Ground clearance | mm | 300 | 300 | 300 | 300 | 300 | 300 |
| 17 | Chassis tires & rims | / | 185R 14c | 185R 14c | 185R 14c | 10.0/80 -12 | 10.0/80 -12 | 10.0/80 -12 |
| 18 | Maximum under-wheel width | mm | 2,000 | 2,000 | 2,000 | 2,310 | 2,310 | 2,310 |
| 19 | Control travelling speed | m/h | 8-60 | 8-60 | 8-60 | 8-60 | 8-60 | 8-60 |
| 20 | Combined spray uniformity | % | ≥85 | ≥85 | ≥85 | ≥85 | ≥85 | ≥85 |

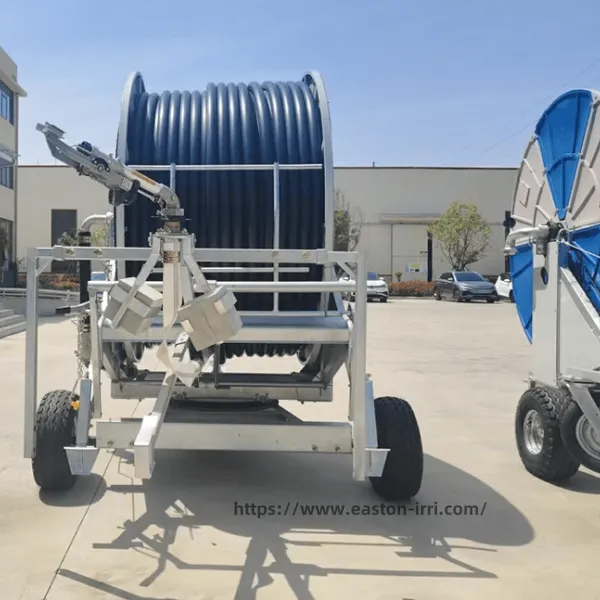

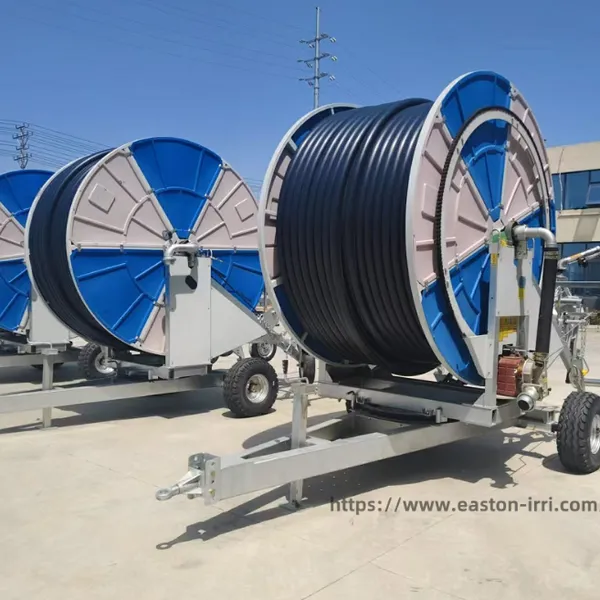

Travelling Hose Reel Sprinkler Irrigation Machine
JP series hose reel sprinkler irrigation system, driven by water turbine, combined Italian CASELLA impact turbine direct-connected four speed gearbox technology, used Italian original four speed direct-connected gearbox, with the chassis and frame are crafted from outstanding corrosion resistance and high strength 304 stainless and treated with the hot-dip galvanizing process, specially designed for efficient agricultural farming irrigation.

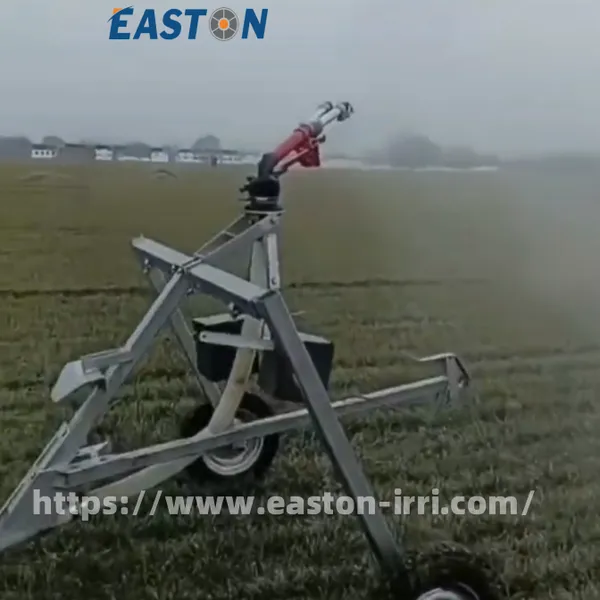

It is an irrigation equipment with its 1.6Mpa pressure PE pipe winded around the winch. It uses irrigation pressure water to drive water turbine which drives winch to rotate through the transmission and the winch pulls sprinkler cart to achieve automatic travelling and spray.
We designed the turbine to be connected directly to the gearbox, this keeps the pressure absorption to a minimum, allowing the machine to run more smoothly.
Travelling hose reel sprinkler irrigation machine are available in a range of models, including JP75-300, JP75-350, JP75-400, JP75-450, JP75-500, JP90-300, JP90-350, JP90-400, JP90-450. They are easy to move and can cover large areas, making them suitable for different field sizes.
It is widely used in large and medium scale farmland operation irrigation, garden, urban green space, fruits and vegetables, tea, forage, tobacco, sugar cane, and power plants, wharf, construction sites, coal dust removal and other fields. Whether you’re searching for Orchard or agricultural farming land dedicated travelling reel type sprinkler irrigation machine, detailed explanation of the working principle of folding travelling boom sprinkler irrigation machine or how to choose the right center pivot irrigation system for your farming land, Easton Irrigation Machinery company has got you covered.
