Help CenterHigh Quality Energy-saving Boom Sprinkler Irrigation System
Related Products
-
Lower Wind Influence Turbine-driven Irrigation System With TrussUS$ 3,000 - 10,000MOQ: 1 Set -
Low Working Pressure Good Atomization Performance Irrigation Machine With TrussUS$ 3,000 - 10,000MOQ: 1 Set
-
Agricultural Low Wind Effect Sprinkler System With TrussUS$ 3,000 - 10,000MOQ: 1 Set
-
Factory Direct Sale Water-saving Sprinkler Machine With TrussUS$ 3,000 - 10,000MOQ: 1 Set
-
High Quality China Supplier Agriculture Machinery Irrigation EquipmentUS$ 3,000 - 10,000MOQ: 1 Set
1.PE water pipe
Diameter: 90mm,length: 300m,burst pressure >2.0Mpa,tensile strength >16.5Mpa,service life: 15 years.
The PE pipe is a kind of high-tech products, one end of it is connected on the reel, and through the horizontal axis to water supply,the other end is connected with the sprinkler car.
2.Italy-imported Sime 10134 model spray gun
Long-distance spraying,good atomization effect,more stable and durable.
3.Digital speedometer of liquid crystal
In the process of irrigation,this device can accurately show the current layers of PE-pipe and the recycling speed of the sprinkler car.By controlling the recycling speed,adjust the amount of irrigation,achieve precise irrigation.
So it is very convenient for the user operating the machine,raise the use efficiency of the sprinkler, and it is advantageous to the irrigation plan formulation and implementation.
4.Impact type water turbine
Rotate speed:1050 r/min,with functions of automatic speed control.
5.Multi-function two-speed gearbox transmission
It is the control system of the sprinkler irrigation machine.
6.Automatic arrangement of PE pipe guide device
It is about a thread guide rod and can shift the drive, it can ensure that the PE pipe automatic recovery, each layer are volume very neatly.
7.Speed compensation mechanism
Through the drive mechanism automatically adjust the water turbine opening,compensation the speed change of the reel rotating line,when at a constant speed, then locking the five-star nut.
8.Automatic parking safety device
It can realize the transmission system of on-off, brake, variable speed, safely and quickly recycle, automatic stop function.
9.Rack
Welded by rectangular pipe,good rigidity,all structures are processed by hot dip galvanized, with good anticorrosion performance,also it can rotate 360 degrees.
10.Reel
Exclusive use pickling, phosphating, high temperature treatment process of the bake lacquer and acrylic decoration process, to ensure durable, do not fade, beautiful and high-grade.
11.Sprinkler car
Track width adjustable and can be equipped with heighten rack(irrigation tall crops).
12.Truss
Its main feature is low pressure, water saving, energy saving, low irrigation intensity, good atomization performance, little affected by the wind.Particularly suited to irrigate the crops in windy area.
Advantages of boom sprinkler irrigation system
This machine is suitable for farmland irrigation,fruit and vegetables irrigation,pasture irrigation,tea irrigation,tobacco irrigation,urban green land, stadiums, golf courses, soccer fields and so on.
In the meantime,the machine drives the reel by mechanical kinetic energy which made by water turbine,gearbox and transmission system working.The rotation of reel make pipes move from the end of the field to the machine.

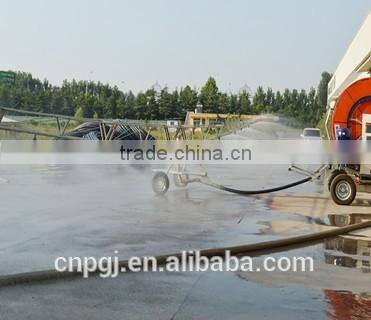

And then the reel rotates and the spraying car moves back with designed speed,the spraying car sprays water while walking until it finishes the whole irrigation.
When the spraying car moves back to the machine,the machine can lift the car and fix it on the machine.And now the whole irrigation has been finished,cut the water,the machine can move to another field and irrigate.
1.Israel-imported fertilization device
Jiangsu Jiarun Sprinkler Irrigation Equipment CO.,LTD is located in Xuzhou City,Jiangsu Province.Our company was specialized in irrigation machine research,development,production and sales for 6 years.
And our company has rich experience in technology, advanced production testing equipment, stable and reliable product quality, perfect after-sales service.
Our company has always been adhering to the rigorous work attitude and strict product quality testing, equipped with Amercia, Israel imported accessories, ensure the Jiarun sprinkler irrigation products of higher quality and got good reputation in worldwide market.Also,our company has obtained a number of national patent technology.
