Hot sale factory price mineral separator machine
Contact: Ella Skype: dhella63
Mobile/Viber/whatsapp:008613838255120
Machine Introduction
structure and characters:
1.The main part is stainless steel, and the base can be carbon steel or stainless steel.
2.Outlet can be adjusted
3.Convenient in moving
4.Kinds of wire screen mesh size to choose.
5.High precision screening and filtering
6.Compact structure, little dust, low noise and low energy consumption
Application:
Food industry: flour, milk powder, starch, rice flour, seasoning, fruit juice, granulated sugar, etc.
Chemical industry: PVC resin powder, citric acid, Polyethylene powder, washing powder, etc.
Pharmacy industry: Kinds of medicinal powder.
Metallurgy: quartz sand, black lead, alumine and other powders.
Raw Material

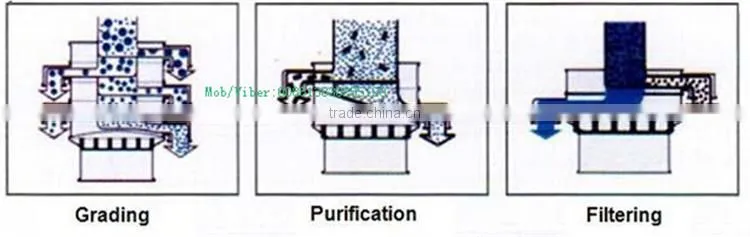

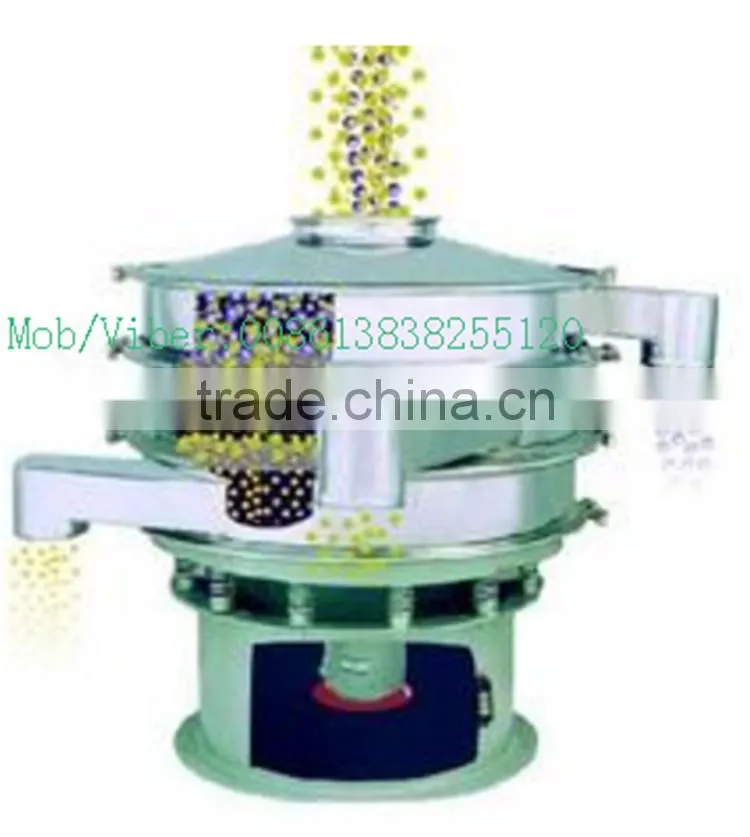

Working Principle
Machine Show

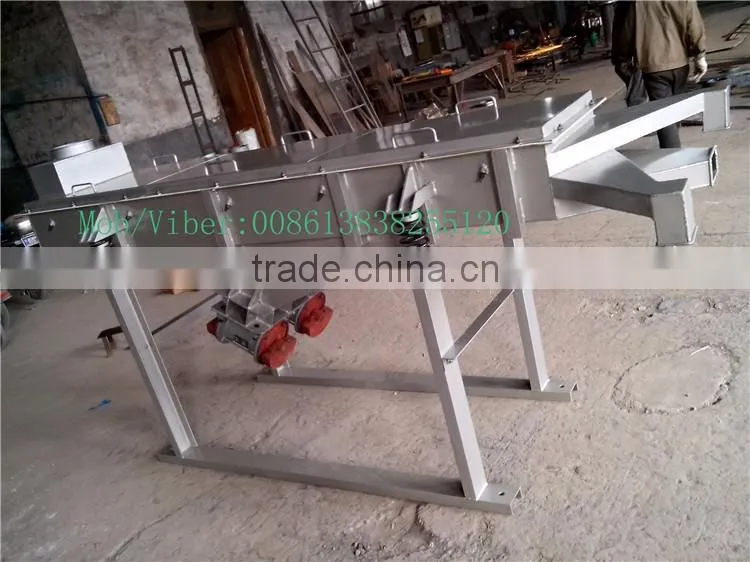

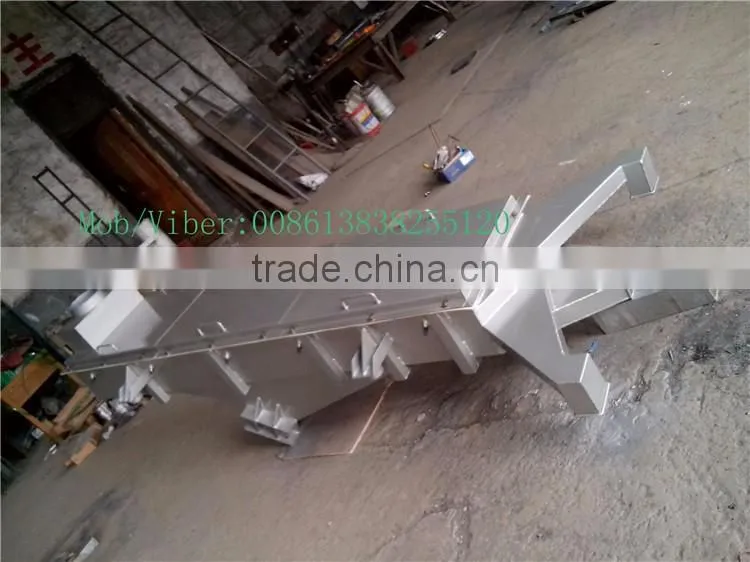

Above Line Type

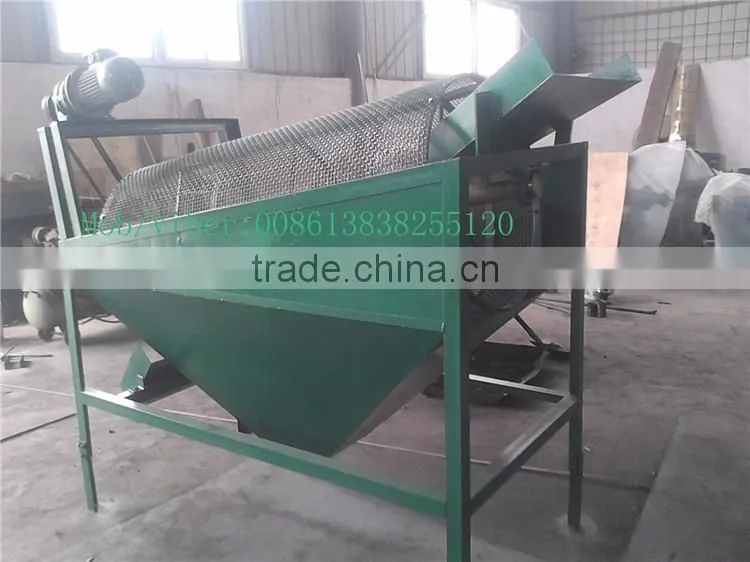

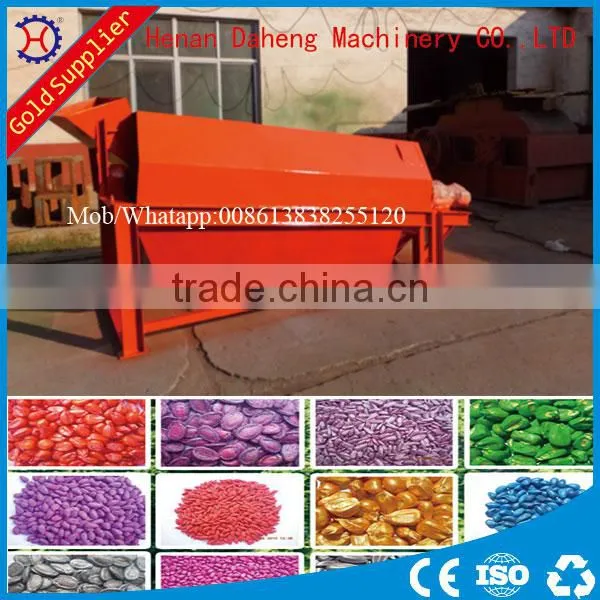

Above Trommel type

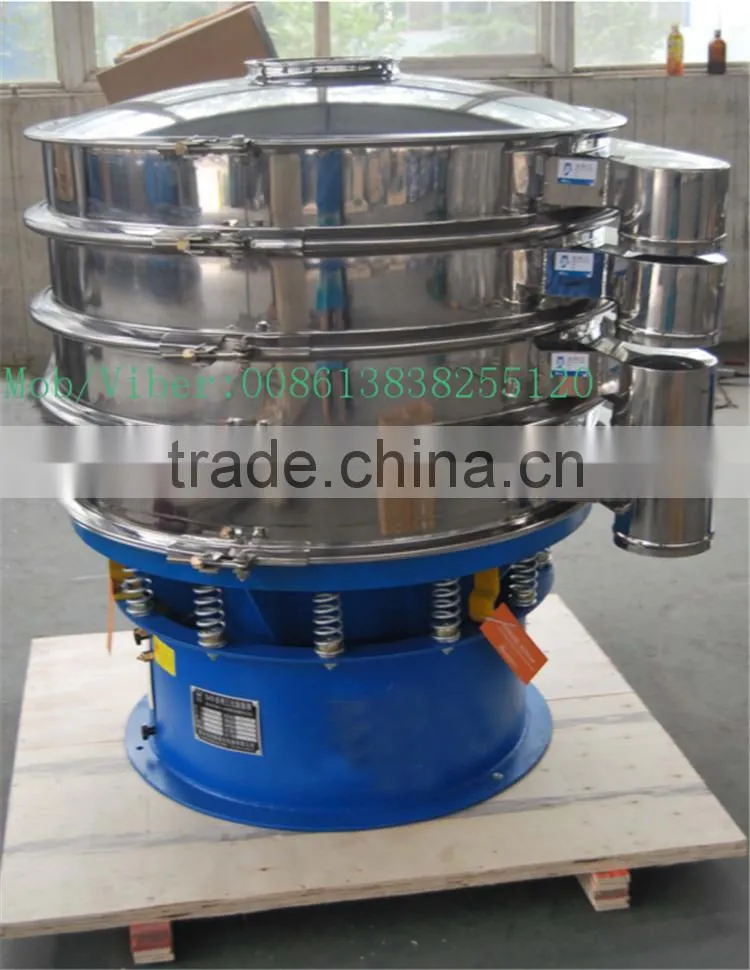

Above Rotary type
Technical Parameter
1.Rotary type
Type |
DH49-400 |
DH49-600 |
DH49-800 |
DH49-1000 |
DH49-1200 |
Available Screen Dia.(mm) |
D:340 |
D:540 |
D:730 |
D:900 |
D:1100 |
Available Screen Area (m2) |
0.0907 |
0.2289 |
0.4183 |
0.6359 |
0.9499 |
Layer |
1-5 |
1-5 |
1-5 |
1-5 |
1-5 |
2.Line Type
Model |
Layer |
Vibration frequency times/min |
amplitude(mm) |
Feeding Size (mm) |
Screen Size (mm) |
DH-520 |
1-6 |
1000 |
4-6 |
smaller than 10 |
500X2000 |
DH-525 |
500X2500 |
||||
DH-530 |
500X3000 |
||||
DH-820 |
800X2000 |
||||
DH-825 |
800X2500 |
||||
DH-830 |
800X3000 |
||||
DH-1020 |
1000X2000 |
||||
DH-1025 |
1000X2500 |
||||
DH-1030 |
1000X3000 |
3.Trommel type
Model |
Capacity |
Power |
Drum diameter |
Drum length |
Screen size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
DHD510 |
1-10 |
1.5 |
500 |
1000 |
<3~10 |
1800*1020*1500 |
1000 |
DHD1015 |
5-20 |
4.0 |
1000 |
1500 |
3000*1400*2145 |
2200 |
|
DHD1020 |
10-40 |
5.5 |
1000 |
2000 |
3460*1400*2145 |
2800 |
Pre-sale:
- Suggest to client suitable models of as customer need.
- Introduce machine's structure and features in detail, explain the price component.
- Answer client concerned questions.
After-sale:
- Documents and certificate available in time.
- One year guarantee for whole machine
- 24 hours technical support by e-mail
- Calling or door-to-door service
- User manual and detailed Videos/CD
For more information, pls contact us and will reply you within 24 hours!
