Specifications
concrete batching plant equipment for best sale1. with accurate and reliable weighing
2. with ISO and CE certification
concrete batching plant equipment for best sale

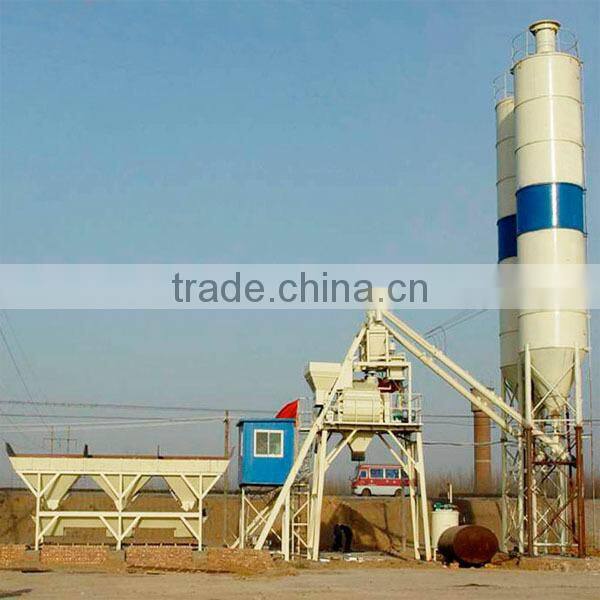

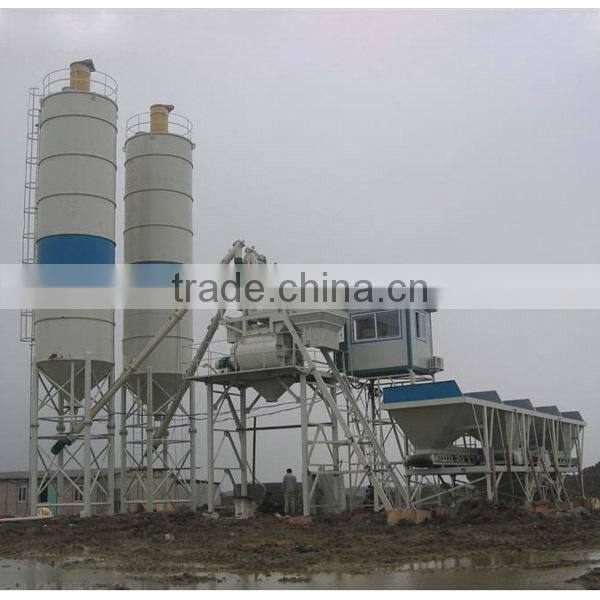

Brief introduction of HZS25 concrete batching plant equipment for best sale
HZS 25 ready mixed concrete batching plants on sale is a new type of mobile concrete mixing plant. It is your best choice for mobile operations in various constructions such as highway, railway,architecture, municipal engineering, bridge, port and hydropower station.
Main Features
| HZS25 ready mixed concrete batching plants include: PLD1200 Concrete batching machine,JS500 Concrete mixer, 60T Cement silo, Belt conveyor, Spiral conveyor. |
| 1. PLD concrete batching machine is used to weighing multiple materials such as sand, cobble and cement together according to customers proportioning plan. |
| 2.Concrete mixer is the most important machine in this ready mixed concrete batching plant. The type of cement mixer decided by the output of concrete plant. |
| 3.The control system is used to control the whole procedure of producing the concrete, so you can stop the whole plant in time if there is one part goes wrong. |
Main parameters of concrete batching plant equipment for best sale
Type |
HZS25 |
||
Theoretical Production(m3/h) |
25 |
||
Mixer |
Type |
JS500 |
|
Power(KW) |
18.5 |
||
Discharging Capacity(m3) |
0.5 |
||
Aggregate Diameter(mm) |
60 |
||
Aggregate Bin (m3) |
10 |
||
Belt Conveying Capacity (t/h) |
260 |
||
Weighing Accuracy |
Aggregate |
1000±2% |
|
cement |
350±1% |
||
Fly Ash(KG) |
280±1% |
||
Water(KG) |
300±1% |
||
Additives(KG) |
25±1% |
||
Total Power (Kw) |
55 |
||
Discharging Height (M) |
≥3.8 |
||
Products Pictures
| Main parts of the 25m3/h concrete batching plant | |
| JS500 concrete mixer | |
| PLD 1200-3 concrete batching machine | |
|
Welding cement silo or detachable cement silo |
|
| LSY-219 screw conveyor | |
| Weighing system | |
| Air compessor | |
| Simple control system | |
| Control room(3*2 m3) | |
All in containers
Before sale
As a professional exporter,our target is to serve worldwide clients with high quality products,
great reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.
After-sale-services
1. Spare parts will be delivered as you need;
2. Reno engineers will go to Client’s buliding site for guiding the installation and test-running;
3. Warranty period: 12 months since the installation and commisioning;
4. Reno service team will fellow every placed order regularly till warranty period finished.
1. What is the production of your concrete batching plant?
25m3/h, 35m3/h, 50m3/h,60m3/h,75m3/h,90m3/h,100m3/h,120m3/h,
150m3/h,180m3/h,240m3/h etc.
2. what is your main mixer of the concrete batching plant?
Our JS series twin shaft concrete mixer.
3. Do you have any certificates?
ISO 9001, CE and so on.
4. Do you have any spare parts for the concrete batching plant.
We always provide one set of spare parts for free to you.
5. What is your warranty period for the machine?
12 months without the spare parts.
6. What is the price of the machine?
Absolute competitive price in the market.
