Specifications
1.portable concrete batching plant with Heavy design.2.Stable running
3.Good mixing quality
4.ISO9001:2008
5.with belt conv
35m3 portable concrete batching plant/HZS35 concrete batching plant
The main machine of 35m3 portable concrete batching plant use JS series double shaft compulsory mixer, It can mix various kinds of concrete and mortar.
It is applicable for medium size construction sites, power stations, irrigations, highways, airfields, bridges, and medium size factories producing concrete prefabricated parts.
It has the following features: accurate weighing, good mixing qualty, fast delivery, easy operation, high automation degree, beautiful design, convenient installation, has wide applicable scope and use modular combination. High efficiency of production.
Worksite photos of 35m3 portable concrete batching plant
Parameters of 35m3 portable concrete batching plant
Type |
HZS25 |
HZS35 |
HZS50 |
||
Theoretical Production(m3/h) |
25 |
35 |
50 |
||
Mixer |
Type |
JS500 |
JS750 |
JS1000 |
|
Power(kw) |
18.5 |
30 |
2X22 |
||
Discharging Capacity(m3) |
0.5 |
0.75 |
1 |
||
Aggregate Diameter(mm) |
60 |
60 |
60 |
||
Aggregate Bin (m3) |
10 |
10 |
13 |
||
|
Belt Conveying Capacity (t/h) |
260 |
280 |
300 |
||
Weighing Accuracy |
Aggregate(kg) |
1000±2% |
1000±2% |
1200±2% |
|
|
Cement (kg) |
350±1% |
450±1% |
600±1% |
||
|
Fly Ash (kg) |
280±1% |
300±1% |
300±1% |
||
|
Water (kg) |
300±1% |
300±1% |
350±1% |
||
|
Additives (kg) |
25±1% |
25±1% |
30±1% |
||
Total Power (Kw) |
55 |
65 |
85 |
||
Discharging Height (m) |
≥3.8 |
≥3.8 |
≥3.8 |
||
Host mixer JS750 of 35m3 portable concrete batching plant
Supporting batching machine PLD800

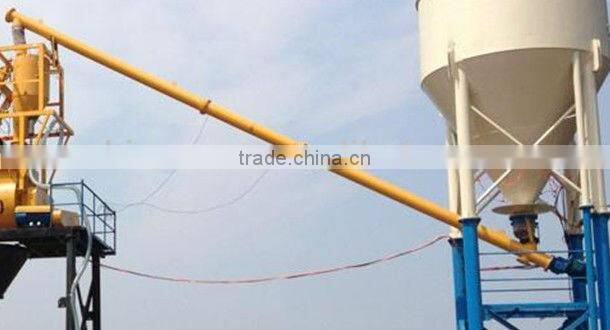

Screw Conveyor of 60m3 concrete batching plant

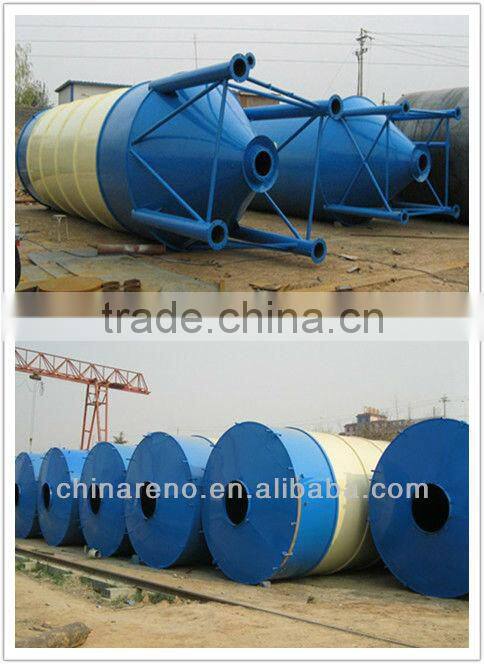

cement silo
Internal stucture of 35m3 portable concrete batching plant
The concrete mix plant is our main product in our company, they are of good quality
and reasonable price.
If you are interested in our products, please contact me as soon as possible.
