Help Center60m3 h Modular Concrete Mixing Plant Price
Related Products
-
60m3/h Export East Asia Concrete Batching PlantNegotiableMOQ: 1 Set -
60m3/h Concrete Batching Plant Import Export AlgeriaNegotiableMOQ: 1 Set
-
60m3/h Concrete Batching Plant China SupplierNegotiableMOQ: 1 Set
-
60m3/h Concrete Batching Plant Saudi ArabiaNegotiableMOQ: 1 Set
-
Cement and Concrete Mixing Plant for Sale With Full Automatic ControlNegotiableMOQ: 1 Set
Specifications
1.Automatic control2.Simple operation
3.Easy to master
5.60m3 concrete batching plant with spare parts
6.ISO9001:2008
60m3 concrete batching plant with mixer machine
This concrete batching plant is consisted of a mixing console, material weighing system, material handling systems, material storage system and control system and other ancillary facilities.It is not only have mixing plant’s advantage, investment province High movability, small footprint and other point, but also process the advantage of mixing station, high production efficacy and functional reliability.

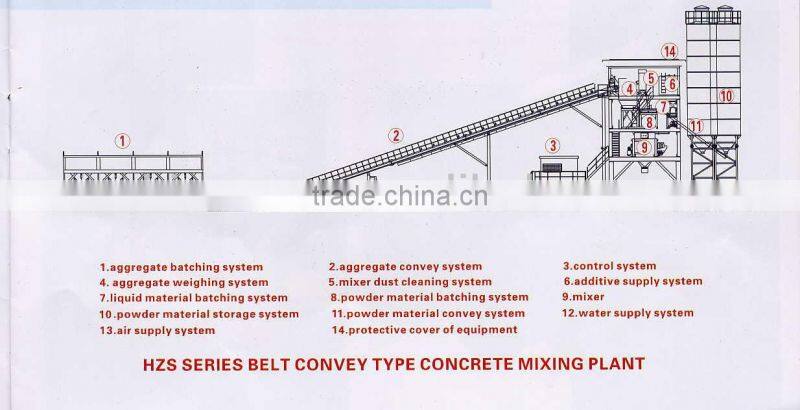

Main components of 60m3 concrete batching plant

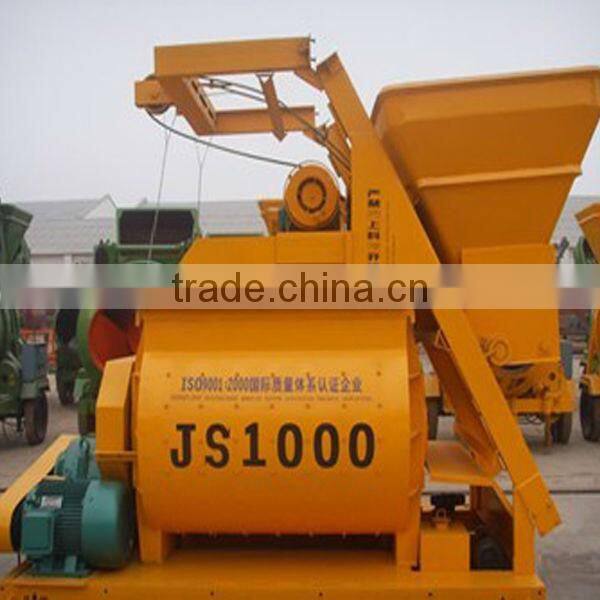

Host mixer JS1000
Supporting batching machine PLD3200
Control system of 60m3 concrete batching plant

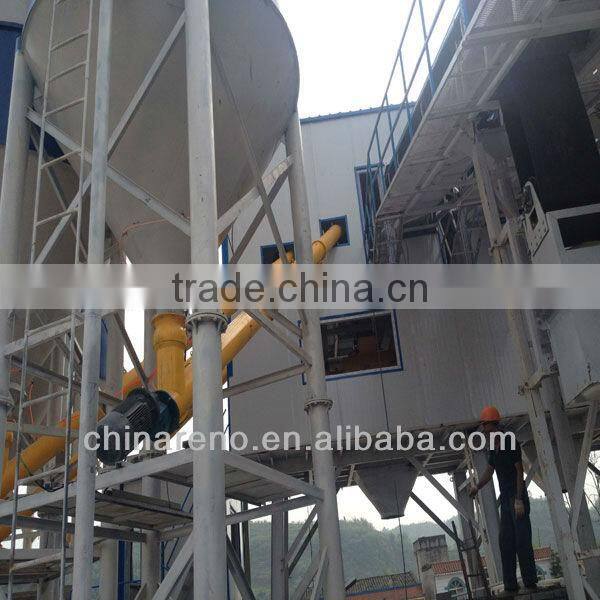

Cement silo of 60m3 concrete batching plant
Screw Conveyor of 60m3 concrete batching plant
Parameters of 60m3 concrete batching plant
Type |
HLS60 |
HLS90 |
||
Theoretical Production(m3/h) |
60 |
90 |
||
Mixer |
Type |
JS1000 |
JS1500 |
|
Power(kw) |
2*22 |
2*30 |
||
Discharging Capacity(m3) |
1 |
1.5 |
||
Aggregate Diameter(mm) |
60 |
80 |
||
Aggregate Bin (m3) |
13 |
13 |
||
Belt Conveying Capacity (t/h) |
300 |
450 |
||
Weighing Accuracy |
Aggregate(kg) |
1200±2% |
2000±2% |
|
Cement(kg) |
600±1% |
1000±1% |
||
Fly Ash(kg) |
300±1% |
400±1% |
||
Water(kg) |
350±1% |
500±1% |
||
Additives(kg) |
30±1% |
50±1% |
||
Total Power (kw) |
85 |
115 |
||
Discharging Height (m) |
≥3.8 |
≥3.8 |
||
The whole weight(t) |
50 |
60 |
||
Application of 60m3 concrete batching plant
HLS60 concrete batching plant can be used for units of road, railway, water and electricity, port, tunnel, bridge, airport, concrete precast, and commercial concrete.
The concrete mixing plant is our main product in our company, they are of good quality and reasonable price.If you are interested in our products, please contact me as soon as possible.
