Introduction:

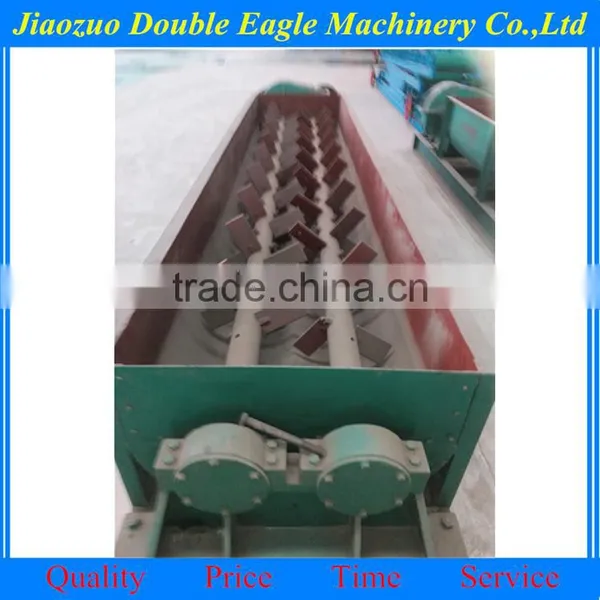

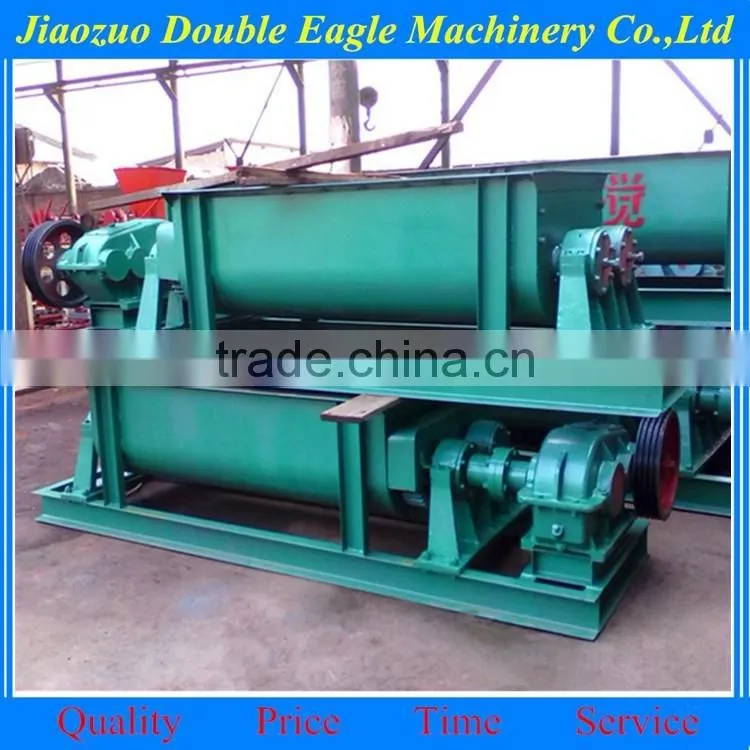

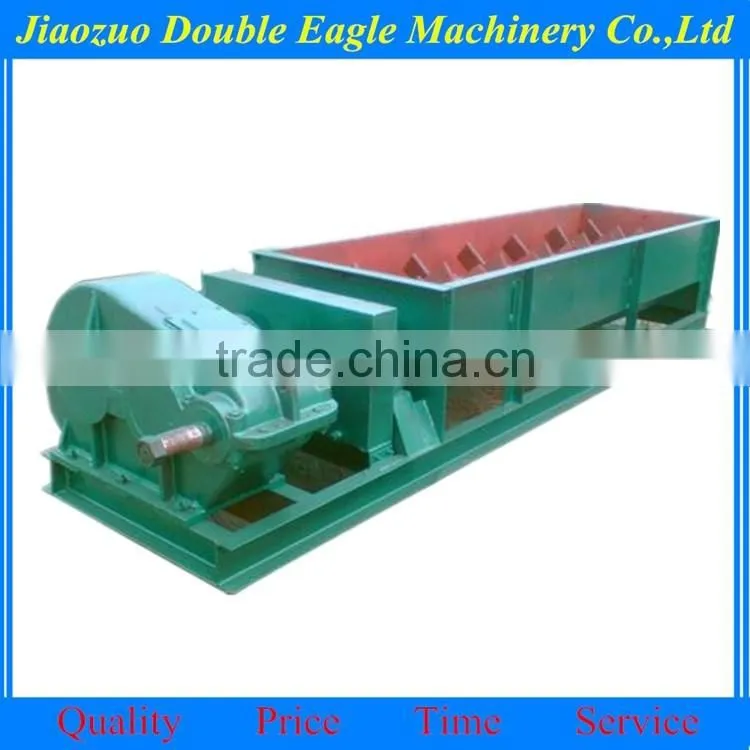

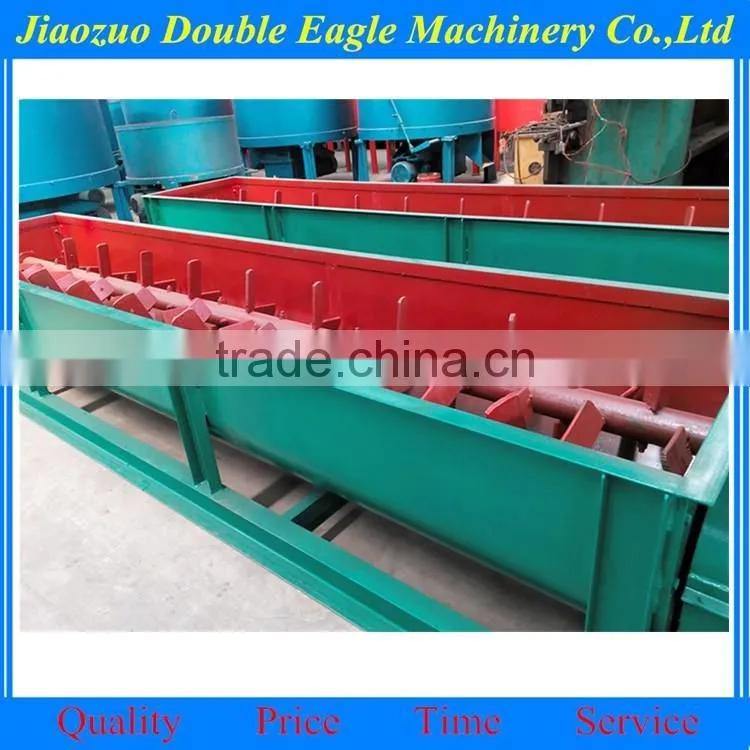

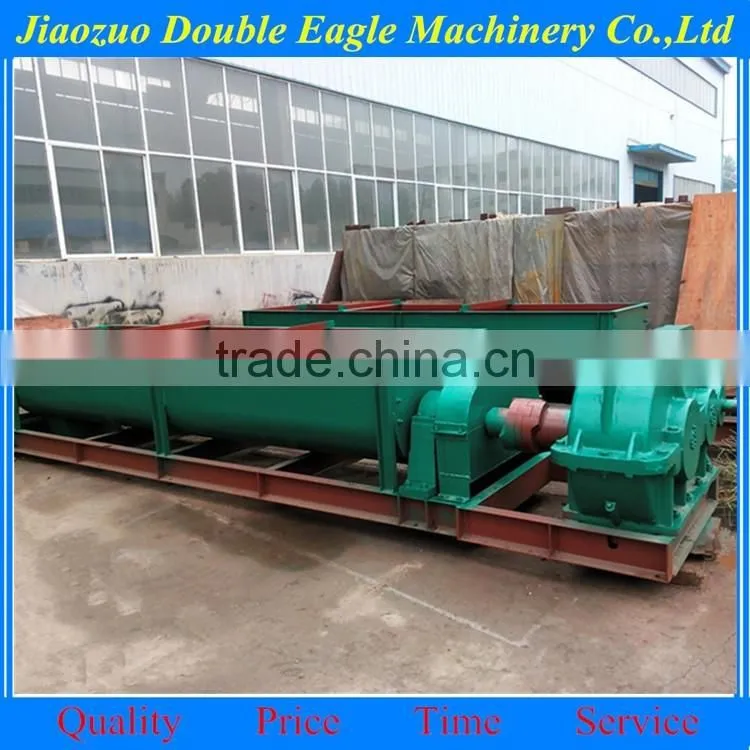

Double-shaft Charcoal mixer mainly consists of casing, spiral shaft assembly, drive equipment, piping, cover plate, chain cover and other parts(see the ramdom for figure), the concrete structure performance characteristics are as follows:
the shell is mainly composed of plates and steel structure, welding forming within the manufacturing plant, and compares with other parts together, dualaxis mixer is supported. Shell sealed tight, there would be no fly ash or ash leakage to the publish, and no ash leakage phenomenon, either.
Technical parameter:
Model |
Output |
Speed |
Motor |
Machine size |
Machine weight |
SYSZ2000*500 |
10-12T/h |
35r/min |
11KW |
3100*750*500mm |
1600kg |
SYSZ2500*650 |
15-20T/h |
35r/min |
15KW |
4200*800*620mm |
2500kg |
SYSZ3000*650 |
20-25T/h |
35r/min |
22KW |
4700*800*620mm |
3200kg |
SYSZ3500*700 |
25-30T/h |
35r/min |
30KW |
5000*900*620mm |
3600kg |
SYSZ4000*800 |
30-40T/h |
35r/min |
37KW |
5800*970*640mm |
3850kg |
